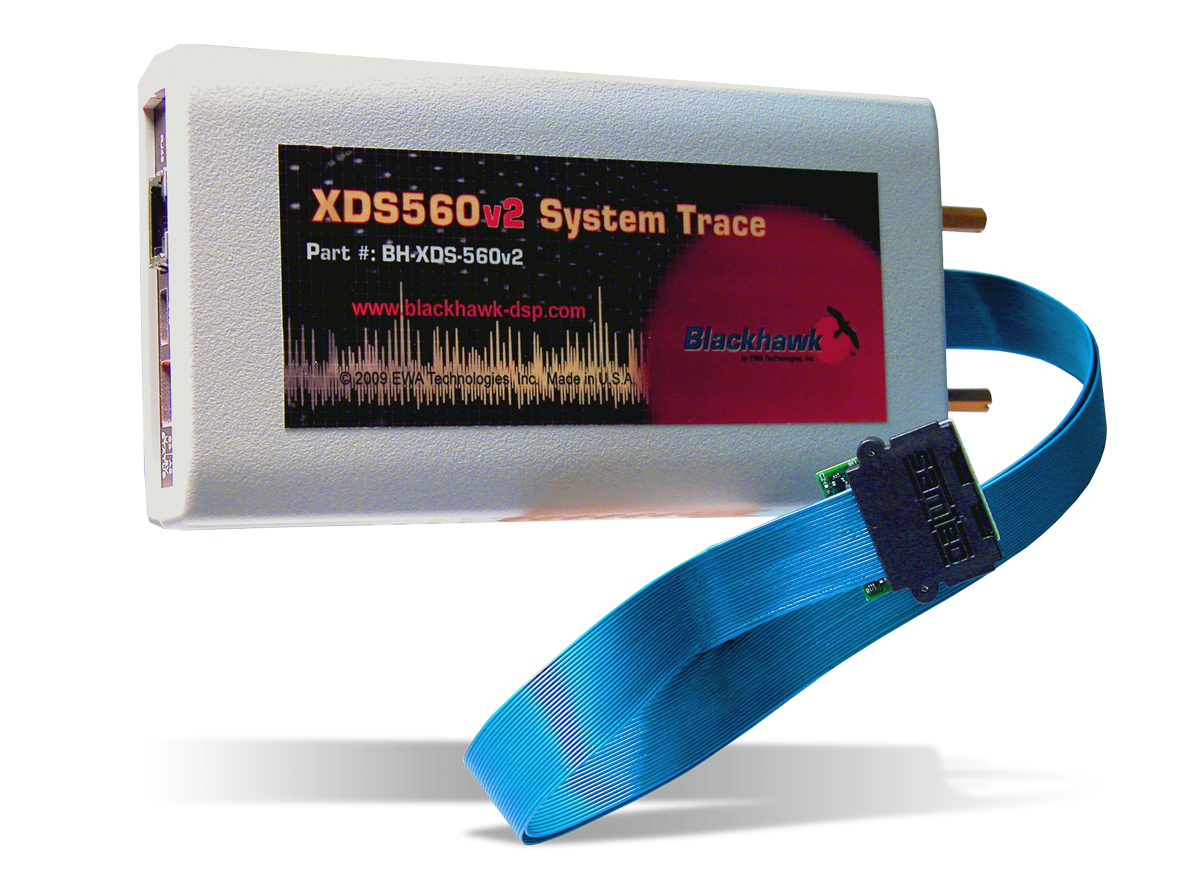

Blackhawk XDS560v2 System Trace Emulators

Blackhawk XDS560v2 System Trace Emulator is is a development tool for Texas Instruments DSPs that is based on the TI XDS560v2 JTAG emulator reference design. The Blackhawk XDS560v2 emulator includes both high-speed USB 2.0 and 10/100Mbit Ethernet host interfaces, multi-color state and activity LEDs and a flexible ribbonized coax JTAG cable.

The Blackhawk XDS560v2 offers a power over Ethernet option, a power over USB only option, and additional dedicated LEDs for power and USB. Blackhawk also offers the USB560BP XDS560-class emulator that supports the advanced capabilities of the latest TI DSPs.


  • USB, Ethernet (PoE) or external power supply
  • (10) Multi-color LED indicators for state and activity
  • Auto -compensating calibration for edge jitter, channel skew and duty cycle
  • 1-4 pin System trace with 128 MByte buffer
  • Range from 1.2 to 4.1 volts auto-sensing target voltage
  • Adaptive receiver for setup/hold times up to 1.5ns
  • 10/100Mb Ethernet (LAN) host interface
  • Auto-adaptive test clock (TCK) up to 50MHz
  • High-speed USB 2.0 (480Mb/s) host interface
  • Supports IEEE 1149.1 and IEEE 1149.7
  • 100MHz Export clock, compliant to MIPI STP
  • RoHS Compliant

Kit Contents

  • XDS560v2 System Trace Emulator Pod with USB (bus-powered) and Ethernet Host Interfaces
  • MIPI60 Pin Converters (4) to: TI14, cTI20, ARM20, and TI60-Trace target connections
  • System Trace Coax JTAG Cable
  • MIPI60 Buffer Board
  • USB Cable
  • Quick Start Guide
  • Warranty and Product Registration Information

Operating System Compatibility

•  Windows® XP/Vista/7/8/10 (32 and 64-bit)
•  Windows® 2003 Server (32 and 64-bit)
•  Linux - Ubuntu, Fedora, RedHat, etc. (32 and 64-bit)

Development Environments

•  Code Composer Studio v10 (eclipse)
•  Code Composer Studio v6 (eclipse)
•  Code Composer Studio v9 (eclipse)
•  Code Composer Studio v5 (eclipse)
•  Code Composer Studio v8 (eclipse)
•  Code Composer Studio v4 (eclipse) - v4.2 and later
•  Code Composer Studio v7 (eclipse)

TI Device Support

•  Jacinto™ Automotive Processors
•  Sitara™ ARM® Cortex®-A Processors
•  OMAP™ Application Processors
•  AWRx Automotive mmWave sensors
•  DaVinci™ Video Processors
•  C6000™ High Performance DSPs
•  C6000™ DSP + ARM® Family
•  C66x™ Multi-Core DSPs
•  C5000™ Low Power DSPs
•  C28xxx Digital Control Processors
•  ARM® Cortex™ A/R/M Microprocessors
•  ARM® 9/11 Microprocessors
•  Stellaris™

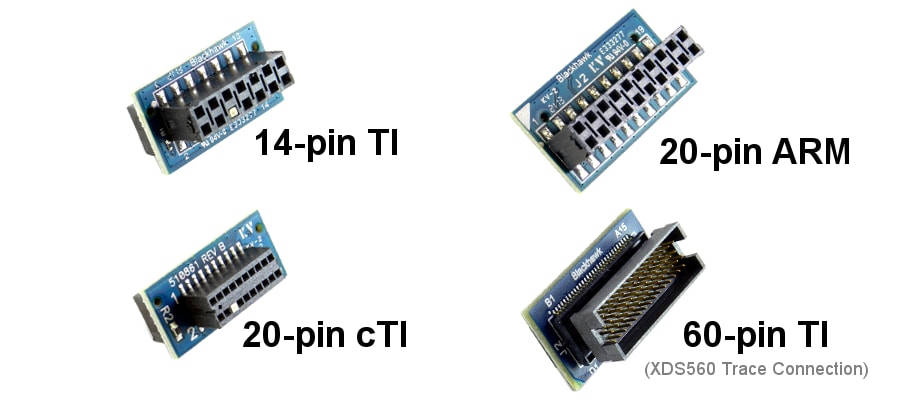

Included Pin Converters

Blackhawk XDS560v2 System Trace Emulators
