Apacer Technology Inc. SV240-300 Serial ATA Flash Drives

Apacer Technology Inc. SV240-300 Serial ATA Flash Drives are well-balanced Solid State Disk (SSD) drives with a standard form factor and outstanding performance. These flash drives deliver up to 560MB/sec sequential read and 600MB/sec burst read/write. Designed with SATA-based connector pinouts and in a SATA 6Gbps interface, SV240-300 drives fully comply with the SATA Revision 3.2 interface specifications delivering superb performance. The SV240-300 serial ATA flash drives feature Advanced Encryption Standard (AES), ensuring the data is always safeguarded. These flash drives feature a 3.3V±5% supply voltage and a 0°C to 70°C standard operating temperature range. The SV240-300 flash drives appear in 50.80mm x 29.85mm x 4.85mm dimensions and include LED indicators for drive behavior.

Features

  • Flash management:
    • Low-Density Parity-Check (LDPC) code
    • Global wear leveling
    • Flash bad-block management
    • Flash translation layer - page mapping
    • S.M.A.R.T.
    • DataDefender™
    • Device sleep
    • ATA secure erase
    • TRIM
    • Hyper cache technology
    • Over-provisioning
    • DataRAID™
    • SMART Read Refresh™
  • Performance:
    • 600MB/sec burst read/write
    • Up to 560MB/sec sequential read
  • 52-pin mSATA connector
  • Security:
    • AES 256-bit hardware encryption
    • Trusted Computing Group (TCG) Opal 2.0 (optional)
  • Reliability:
    • Thermal sensor
    • End-to-End Data protection
  • LED indicators for drive behavior
  • RoHS compliant

Specifications

  • Temperature range:
    • Operating:
      • 0°C to 70°C standard
      • -40°C to 85°C wide
    • -55°C to 100°C storage
  • 3.3V±5% supply voltage
  • >3,000,000 hours MTBF
  • Form factor:
    • JEDEC MO-300
    • 50.80mm x 29.85mm x 4.85mm dimensions
    • 7.8g ± 5% net weight

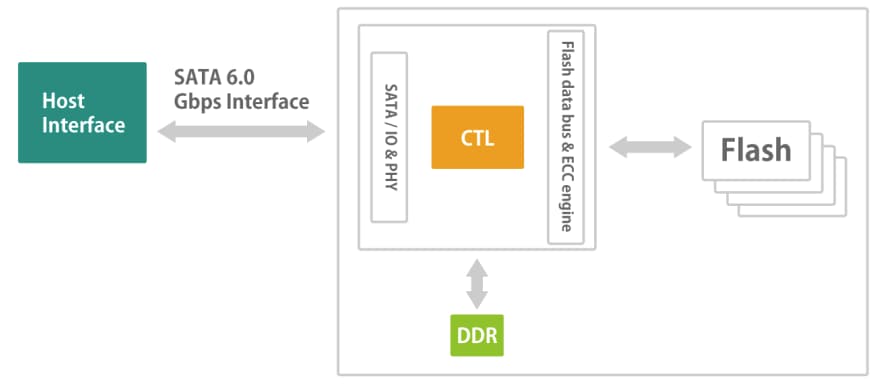

Functional Block Diagram

Block Diagram - Apacer Technology Inc. SV240-300 Serial ATA Flash Drives

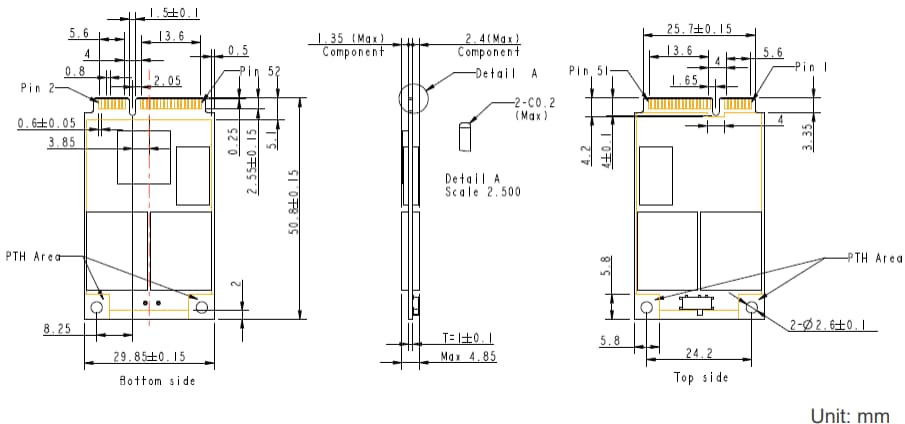

Dimensions

Mechanical Drawing - Apacer Technology Inc. SV240-300 Serial ATA Flash Drives

Datasheets

View Results ( 57 ) Page
Part Number Minimum Operating Temperature Maximum Operating Temperature Sustained Write Sustained Read Active Mode Current Memory Size
A72.249HYA.00190 40 GB
A72.249HZA.00190 40 GB
A72.249JYA.00190 80 GB
A72.249JZA.00190 80 GB
A72.249KYA.00190 160 GB
A72.249KZA.00290 160 GB
A72.242JGA.00240 0 C + 70 C 480 MB/s 560 MB/s 530 mA 256 GB
A72.242HGA.00277 0 C + 70 C 505 MB/s 565 MB/s 670 mA 128 GB
A72.242HHA.00277 - 40 C + 85 C 505 MB/s 565 MB/s 670 mA 128 GB
A72.242JGA.00377 0 C + 70 C 505 MB/s 565 MB/s 670 mA 256 GB
