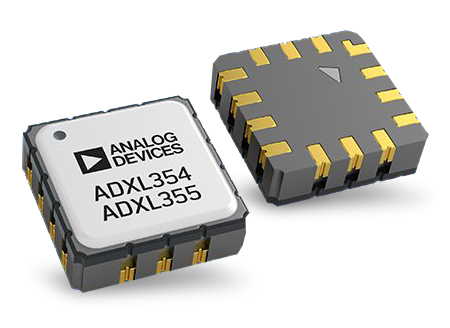

Analog Devices Inc. ADXL35x Accelerometers
Analog Devices ADXL35x Accelerometers provide high-resolution vibration measurements for the early detection of structural defects via wireless sensor networks. The ADXL35x family consists of low power, ultra-low noise density 3-axis MEMS accelerometers with selectable measurement ranges, low 0g offset drift over temperature, and excellent long-term stability.
ADXL354/ADXL355/ADXL356/ADXL357 Accelerometers
The ADXL354/ADXL356 accelerometers are designed for analog output whereas the ADXL355/ADXL357 accelerometers are designed for digital output.
• The ADXL354B series supports the ±2g and ±4g ranges
• The ADXL354C series supports the ±2g and ±8g ranges
• The ADXL355 series supports the ±2.048g, ±4.096g, and ±8.192g ranges
• The ADXL356B series supports the ±10g and ±20g ranges
• The ADXL356C series supports the ±10g and ±40g ranges
• The ADXL357 series supports the ±10.24g, ±20.48g, and ±40.96g ranges
Features
- Hermetic package offers excellent long-term stability
- 0g offset vs. temperature (all axes)
- 0.15mg/°C maximum (ADXL354/ADXL355)
- 0.75mg/°C maximum (ADXL356/ADXL357)
- Ultralow noise density (all axes)
- 20μg/√Hz (ADXL354)
- 80μg/√Hz (ADXL356/ADXL357)
- Low power, VSUPPLY (LDO enabled)
- 150μA ADXL354/ADXL356 in measurement mode
- 200μA ADXL355/ADXL357 in measurement mode
- 21μA ADXL354/ADXL355/ADXL356/ADXL357 in standby mode
- ADXL354/ADXL356 have user-adjustable analog output bandwidth
- ADXL355/ADXL357 have digital output features
- Digital serial peripheral interface (SPI)/I²C interfaces
- 20-bit analog-to-digital converter (ADC)
- Data interpolation routine for synchronous sampling
- Programmable high- and low-pass digital filters
- Electromechanical self-test
- Integrated temperature sensor
- Voltage range options
- 2.25V to 3.6V VSUPPLY with internal regulators
- V1P8ANA, V1P8DIG with internal low dropout regulator (LDO) bypassed: 1.8V typical ± 10%
- −40°C to +125°C operating temperature range
- 14-terminal, 6mm × 6mm × 2.1mm, LCC package, 0.26 grams
Applications
- Inertial measurement units (IMUs)/altitude and heading reference systems (AHRSs)
- Platform stabilization systems
- Structural health monitoring
- Seismic imaging
- Tilt sensing
- Robotics
- Condition monitoring
Associated Products
Analog Devices Inc. Sensor Solutions
High performance discrete components & plug-in-ready solutions address complex sensor application needs.
Analog Devices Inc. ADXL354/ADXL355 3-Axis MEMS Accelerometers
Offers low noise density, low 0g offset drift, and low power with selectable measurement ranges.
Analog Devices Inc. ADXL356/ADXL357 3-Axis MEMS Accelerometers
Offers low noise density, low 0g offset drift, and low power with selectable measurement ranges.
Videos
Technical Articles
- Understanding the Fundamentals of Earthquake Signal Sensing Networks
Modern, low-cost MEMs based ground sensing technology is now capable of measurements that are on par with traditional instruments. Using the wide range of Analog Devices products, a sensing device can be implemented to cater to different seismic sensing applications.
Learn More - Choosing the Right Accelerometer for Predictive Maintenance
Monitoring a machine’s health status enables predictive maintenance, allowing industries to anticipate breakdowns and realize substantial operational savings and downtime. To determine when it is the right time to trigger a maintenance operation, the manufacturer uses parameters such as vibration, noise, and temperature measurements. In a rotating machine (engine, generator, etc.) an abnormal vibration can be a sign of a faulty ball bearing, axle misalignment, imbalance, or excessive looseness. Avoid being caught off guard and detect the very first signs of an anomaly with a low noise, high bandwidth accelerometer.
Learn More
Additional Resources
Associated Development Tool
Analog Devices Inc. EVAL-ADXL356BZ Evaluation Board
Designed for a quick evaluation of the performance of the ADXL356 a 3-axis, MEMS accelerometer.
