ams OSRAM OSLON® Square GW CSSRM3.EM High Power LEDs

ams OSRAM OSLON® Square GW CSSRM3.EM High Power LEDs are the fifth-generation, robust, and highly reliable LEDs with low thermal resistance. These LEDs feature a color temperature of 2700K to 5700K, a luminous flux of 301lm, and luminous efficacy of 153lm/E at 3000K, 85°C. The GW CSSRM3.EM high-power LEDs emit 120° typical radiation with 80 (min.) and 82 (typ.) Color Rendering Index (CRI). These LEDs are available in 3mm x 3mm x 2.02mm dimensions and an SMD/SMT ceramic mounting style with a silicone lens. Typical applications are downlights, high bay industrial, highway retail, horticulture lighting, human-centric lighting, mood lighting, stage lighting, street, tunnel, and outdoor lighting.

Features

  • SMT ceramic package with silicone lens
  • 120° radiation (Lambertian emitter)
  • 2700K to 5700K color temperature
  • 80 (min.), 82 (Typ.), and R9: 0 (min.) Color Rendering Index (CRI)
  • 8kV Electrostatic Discharge (ESD)
  • 301lm luminous flux at 3000K and 85°C
  • 153lm/W luminous efficacy at 3000K and 85°C

Applications

  • Architecture
  • Downlights/spotlights
  • Highbay industrial
  • Highbay retail
  • Horticulture lighting
  • Human-centric lighting
  • Mood lighting
  • Stage lighting (LED and laser)
  • Street lighting
  • Tunnel lighting
  • Outdoor lighting

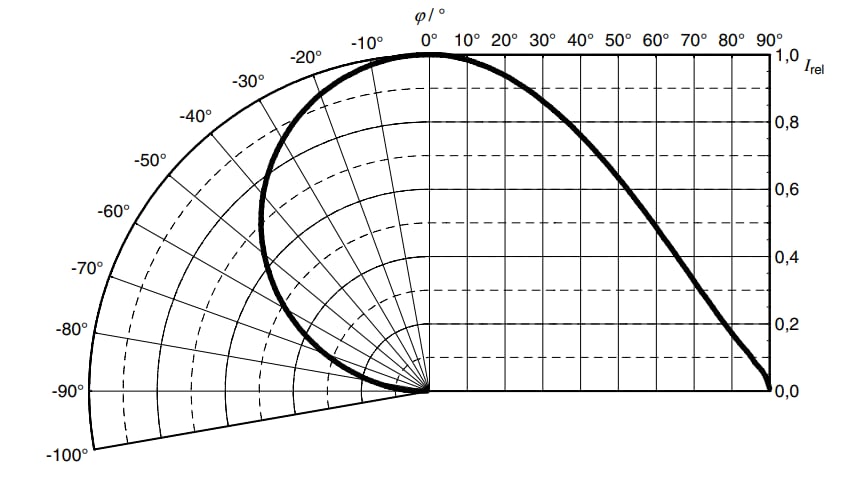

Radiation Characteristics

Infographic - ams OSRAM OSLON® Square GW CSSRM3.EM High Power LEDs

Dimensional Drawings

Mechanical Drawing - ams OSRAM OSLON® Square GW CSSRM3.EM High Power LEDs
