Amphenol / SV Microwave SMP/SMPM/SMPS Surface-Mount PCB Connectors

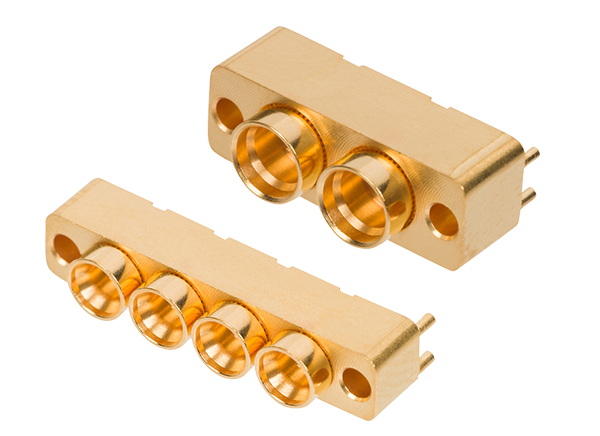

Amphenol / SV Microwave SMP/SMPM/SMPS Surface-Mount PCB Connectors are single-port, two-port, and four-port connectors ideal for high-frequency printed circuit board applications where precision is vital. SMP connectors conform to DSCC 94007, 94008, and MIL-STD-348. The SMPM connectors improve the application density and operating frequency range of the SMP connector. The SMPS connectors utilize the same great features of the SMP and SMPM connectors in an even more compact package.
Features
- Single-, 2-port, and 4-port configurations
- High density, small form factor
Applications
- Military/aerospace
- RF test and measurement boards
- High-speed digital component tests
Specifications
- 50Ω impedance
- 65GHz frequency
- ≥-80dB typical shielding effectiveness
- Misalignment
- 0.010" axial
- ±0.010" radial
- Dielectric withstanding voltages
- 500VRMS for SMP
- 325VRMS for SMPM
- 250VRMS for SMPS
- -65°C to +165°C temperature range
Videos
Related Products
Amphenol / SV Microwave SMPM & SMPS VITA 66.5 Hybrid Modules
Includes 14/19 port RF and 3 port MT fiber backplane and plug-in hybrid modules.
Amphenol Microwave/RF Type Connectors & Accessories
Variety of options, including mating styles, highly flexible cables, & high number of mating cycles.
Related Solutions
Amphenol Space Solutions
Portfolio of robust products engineered to withstand the harsh demands of space exploration.
