Amphenol Sine Systems BoardLock™ Connectors

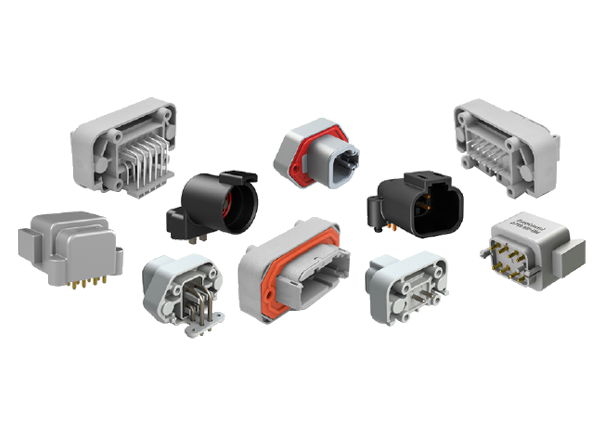

Amphenol Sine Systems BoardLock™ Connectors are available in AT, ATHD, ATM, and ATP series options. The BoardLock™ connectors come in flanged or flangeless, 180° straight or 90° right-angle pin-oriented, wire-to-board options. These connector features are combined with the proven reliability of the A Series™ environmentally sealed thermoplastic connection system with maximum current rating of up to 100A. The Sine systems BoardLock connectors offer a compact, durable, low-profile, lightweight design, and are ideal for power or data signal applications. The BoardLock product lines accept A Series components and are compatible with other industry-standard mating connectors. These BoardLock variations offer IP67, IP68, or IP69K protection when mated. Typical applications include power and signal connectivity, data acquisition, HVAC systems, farming implementation, and boating.

Features

  • Flanged or flangeless
  • 180° straight or 90° right-angle pin orientation
  • Snap-lock, screw-lock, snap-fit, or screw boss mounting type
  • Potted or unpotted
  • IP67/IP68/IP69K when mated
  • 7.5A (ATM), 13A (AT), 25A (mixed)
  • 250VDC operating voltage rating
  • Silicone rubber seal
  • -55°C to 125°C operating temperature range

Applications

  • Power and signal connectivity
  • Data acquisition
  • HVAC systems
  • Farming implementation
  • Boating
  • Sealed environments
  • Heavy equipment
  • Transportation
  • Industrial
  • Off-road and harsh environments
