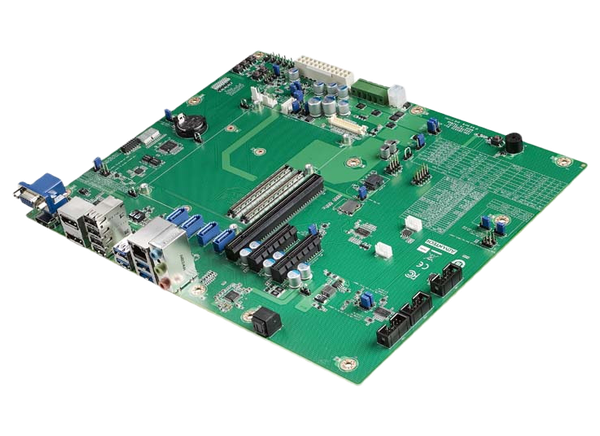

Advantech SOM-DB5830 Development Board
Advantech SOM-DB5830 Development Board features I/O expansion of PCIe x16, and PCIe x4. It has a display type of VGA, LVDS / eDP, and HDMI/DP. The board has an ATX form factor with both ATX & AT power support.
Features
- Expansion: PCIe x16, PCIe x4
- Display Type: VGA, LVDS / eDP, HDMI / DP
- ATX form factor with both ATX & AT power support
- COM Express Basic/Compact/COM-Ultra module compatible
- Development Board Compliant to PICMG COM.0 R3.0 Type 6 Pin-out

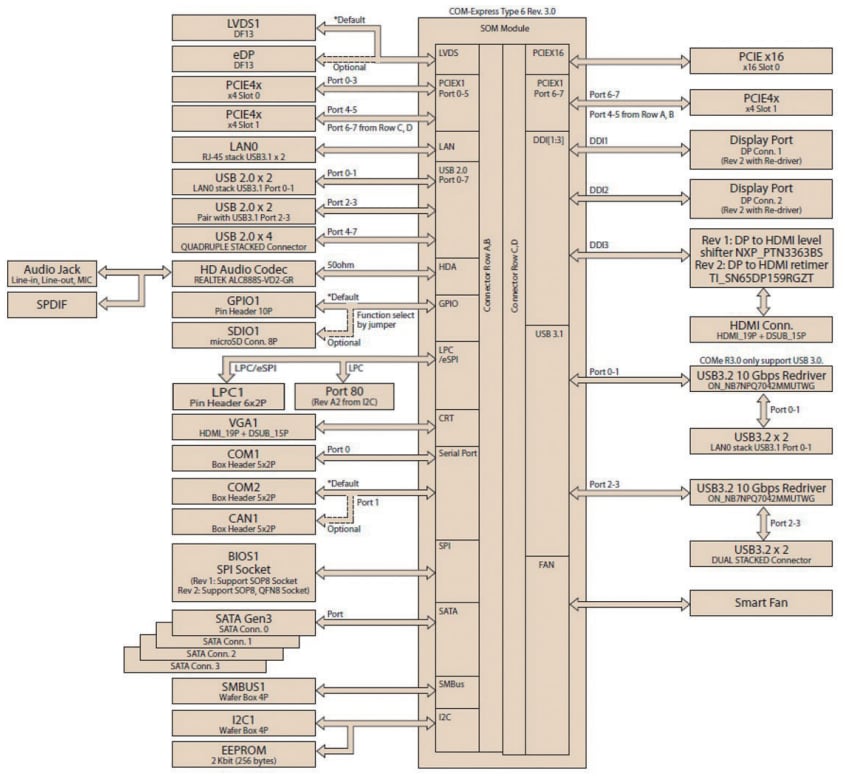

Block Diagram
