Abracon AFB4714A-0190S Tri-Band Wi-Fi6E Antenna
Abracon AFB4714A-0190S Tri-Band Wi-Fi6E Antenna is a flexible printed circuit-type antenna with high gain and high efficiency. This antenna comes with a fully customizable cable and connector options for RF connection. The AFB4714A-0190S tri-band Wi-Fi6E flexible printed antenna features a compact design and can be easily installed using adhesive tape. This antenna also features I-PEX 1 (F) RF connector, Ø1.13mm RF cable type, and 190±3mm cable length. The AFB4714A-0190S antenna is RoHS compliant, operates within -40℃ to 85℃ temperature range, and comes in 47mm x 14mm x 0.4mm dimensions. Typical applications include the Internet of Things (IoT), Machine to machine (M2M), wearables, set-top boxes, transportation, home automation, and smart metering/city.
Features
- Tri-band Wi-Fi6E 2.4/5/6GHz
- Compact design
- High gain
- High efficiency
- Easy installation using adhesive tape
- Fully customizable cable and connector options for RF connection
- Linear polarization
- Omni-directional radiation pattern
- Flexible printed circuit antenna type
- RoHS compliant
Specifications
- 2.0 Voltage Standing Wave Ratio (VSWR)
- 50Ω impedance
- 190±3mm cable length
- Ø1.13mm RF cable type
- 47mm x 14mm x 0.4mm dimensions
- -40°C to 85°C operating temperature range
Applications
- Internet of Things (IoT)
- Machine to machine (M2M)
- Wearables
- Set-top boxes
- Transportation
- Home automation
- Smart metering/city

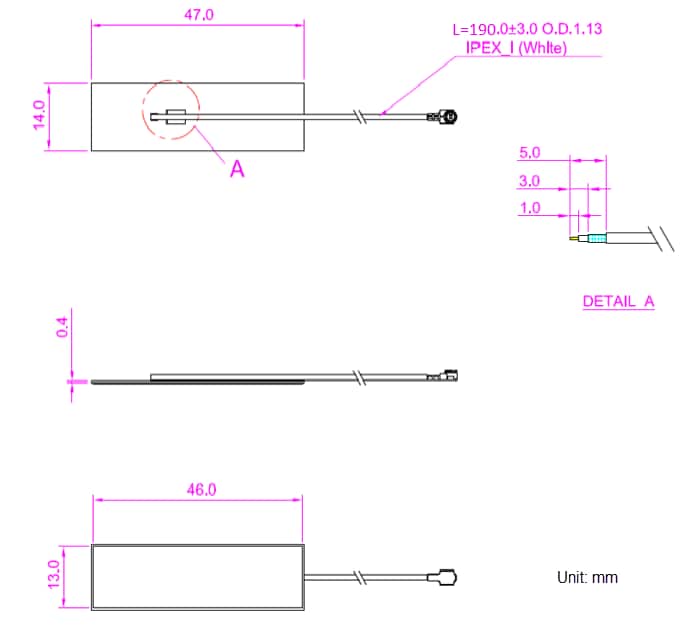

Dimensional Diagram
