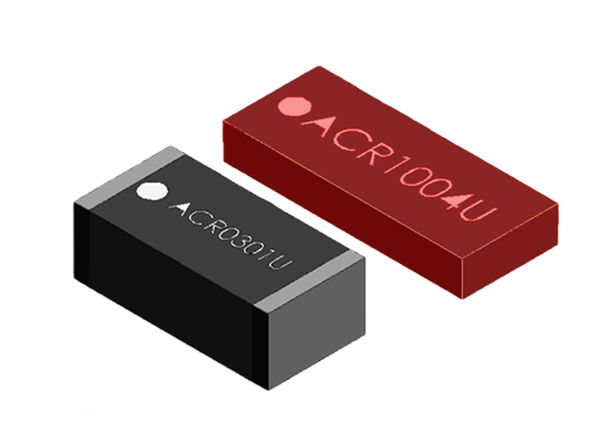

Abracon ACRxU SMD Ultra-Wideband (UWB) Chip Antennas

Abracon ACRxU SMD Ultra-Wideband (UWB) Chip Antennas offer high efficiency and meet industry needs for fast/stable data transmission and optimal signal performance. These antennas can be used to replace multiple narrow-band antennas while providing unparalleled design flexibility and usability that ensures seamless connectivity for uninterrupted operations. The ACRxU SMD Ultra-Wideband (UWB) Chip Antennas are ideal for complex and space-sensitive applications.

Features

  • Compact size
  • Omnidirectional pattern
  • Surface mount
  • Linear polarization
  • LTCC technology (ACR0301U only)
  • Moisture Sensitivity Level (MSL) 1 (ACR0301U only)
  • RoHS compliant

Applications

  • ACR0301U
    • UWB
    • IoT
    • M2M
    • Real-time tracking
    • Location-based services
    • Personal Area Networks (PAN)
    • Short-range, high-speed data links for medical and commercial equipment
  • ACR1004U
    • UWB
    • IoT
    • M2M
    • PDA/wearables
    • Smart home/building
    • Precision positioning and tracking
    • Industrial/medical/automotive sensors

Specifications

  • ACR0301U
    • 6.24GHz to 8.5GHz operating frequency range, 7.37GHz typical
    • 2.0 voltage standing wave ratio (VSWR)
    • 4.5dBi maximum peak gain
    • 70% to 80% efficiency
    • 50Ω impedance
    • Input power
      • 3W continuous
      • 5W for up to 5 minutes
    • 3.2mm x 1.6mm x 1.1mm antenna dimension
    • 8mm x 7.8mm antenna ground clearance area
    • Temperature ranges
      • -40°C to +85°C operating
      • +5°C to +40°C storage
    • 30% to 70% relative humidity
  • ACR1004U
    • 3GHz to 6GHz operating frequency range
    • 5.79dBi typical peak gain
    • 60% minimum efficiency
    • 50Ω impedance
    • 10mm x 4mm x 1.5mm antenna dimension
    • Ceramic material
    • -30°C to +85°C temperature range
    • 0% to 95% relative humidity
