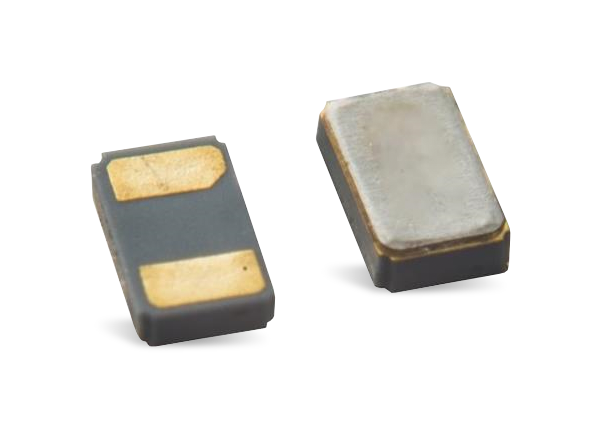

Abracon ABS05/ABS05W 32.768kHz IoT Optimized SMD Crystals

Abracon ABS05/ABS05W 32.768kHz Internet of Things (IoT) Optimized SMD Crystals feature an exceptionally low 4pF or 12.5pF plating load with simultaneous ESR optimization over an extended operating temperature range. The seam-sealed ABS05W components provide long-term reliability with a 20ppm tolerance and 0.5µW maximum drive level. ABS05 and ABS05W crystals are offered with operating temperature ranges from -40° up to +85°, +105°, or +125°C. These Abracon IoT crystals are ideal for wearables, wireless modules, BLUETOOTH®, machine-to-machine connectivity, NFC, and ultra-low power applications.

Features

  • Exceptionally low plating load of 4.0pF or 12.5pF and ideal for wearables, wireless, and IoT applications
  • Simultaneously optimized for ESR over an extended operating temperature range
  • Available with ±20ppm set tolerance
  • Miniature 1.6mm x 1.0mm x 0.5mm SMD package, ideally suited for space-constrained designs
  • Seam-sealed package for long-term reliability
  • Lead-free and RoHS/RoHS II compliant

Applications

  • ABS05W
    • Wearables
    • Wireless modules
    • Internet of Things (IoT)
    • BLUETOOTH®/BLUETOOTH® low energy (BLE)
    • Machine-to-machine (M2M) connectivity
    • Ultra-low power MCU
    • Near field communication (NFC)
    • ISM band applications
    • Ultra-low power, energy-saving MCU
  • ABS05
    • Wireless modules
    • Internet of Things (IoT)
    • BLUETOOTH®/BLUETOOTH® low energy (BLE)
    • Commercial
    • Industrial
    • Low power MCUs, SoCs, and transceivers
    • Communication and measuring equipment

Specifications

  • 32.768kHz frequency
  • ±20ppm frequency tolerance at +25°C
  • 4pF or 12.5pF load capacitance options
  • 1.3pF or 1.45pF typical shunt capacitance
  • 0.5µW drive level
  • ±3ppm first year aging
  • 500MΩ minimum insulation resistance
  • +20°C to +30°C turn-over temperature range
  • 60kΩ to 90kΩ ESR range
