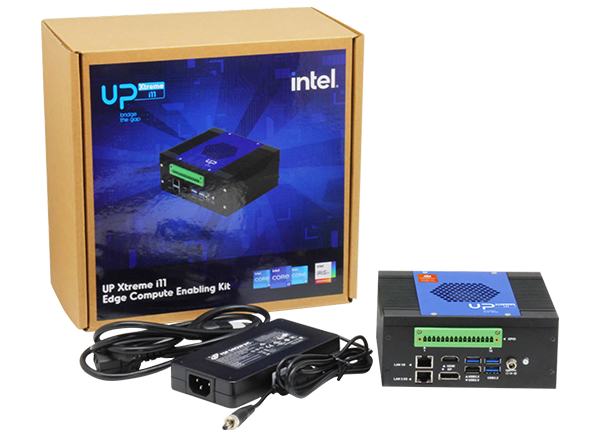

AAEON UP Xtreme i11 Edge Compute Enabling Kits

AAEON UP Xtreme i11 Edge Compute Enabling Kits provide the next generation in edge computing with 5G, powered by the lntel® 11th Gen Core™ processors with Iris® Xe graphics. The ready-to-connect kits offer a 40-pin I/O expansion powered by Intel Altera MAX 5 to provide compatibility with all the expansions. The Enabling Kits deliver an M.2 3052 slot to support 5G modules enabling ultra-low latency and reliable data transmission to/from masses of IoT devices. The Iris Xe graphics deliver up to 96EUs, while the Intel Ethernet runs 2.6Gb/s.

The AAEON UP Xtreme i11 Edge Compute Enabling Kits feature seamless connectivity, exceptional graphics, and I/O options boost speed, reliability, and efficiency. The UP Xtreme i11 Edge ensures the convergence of 5G, AI, Cloud Computing, data analytics, and IIOT.

Features

  • 11th generation Intel® Core™ i7/i5 processor SoC (formerly Tiger Lake UP3)
  • 16-pin GPIO connector x 1
  • Pre-load software
  • Supports 5G via M.2 3052
  • Supports AI accelerator via M.2 2280
  • Supports WiFi 6
  • Supports USB 4.0
  • Supports LAN up to 2.5Gbps

Applications

  • Robotics
  • Vision
  • Industrial automation
  • Retail
  • Healthcare

Kit Contents

  • UPX-EDGE i11 x 1
  • 8GB 3200MHz SODIMM modules x 2
  • 128GB 2.5” SSD x 1

Specifications

  • 11th Gen Intel® Core™ Processor SoC
  • Core i7-1185GRE
  • Core i5-1145GRE
  • 8GB 3200MHz SODIMM modules x 2
  • Intel® Iris® Xe graphics
  • 128GB 2.5” SSD x 1 Storage
  • Intel® i225IT (TSN) x 1, Intel® i219 (vPRO) x 1 Ethernet
  • 32°F ~ 140°F (0°C ~ 60°C) Operating temperature
  • 0% ~ 90% Relative humidity, non-condensing operating humidity
  • Preinstalled Software
    • Ubuntu 20.04 LTS and 5.11 Kernel
    • Intel® Distribution of OpenVINO™ toolkit 2021 R1
    • Intel® Media SDK
    • Intel® Distribution for Python*
    • MRAA and UPM I/O and sensor libraries for C++, Python*, Java*, and JavaScript*
    • Docker-CE
    • k3s Kubernetes
    • ONNX
    • AWS Greengrass
    • SQLite 3
    • Node.js
    • cmake
    • gcc
    • Openssl
    • Openssh-server/client
    • git
    • vim
    • tmux

Additional Resources

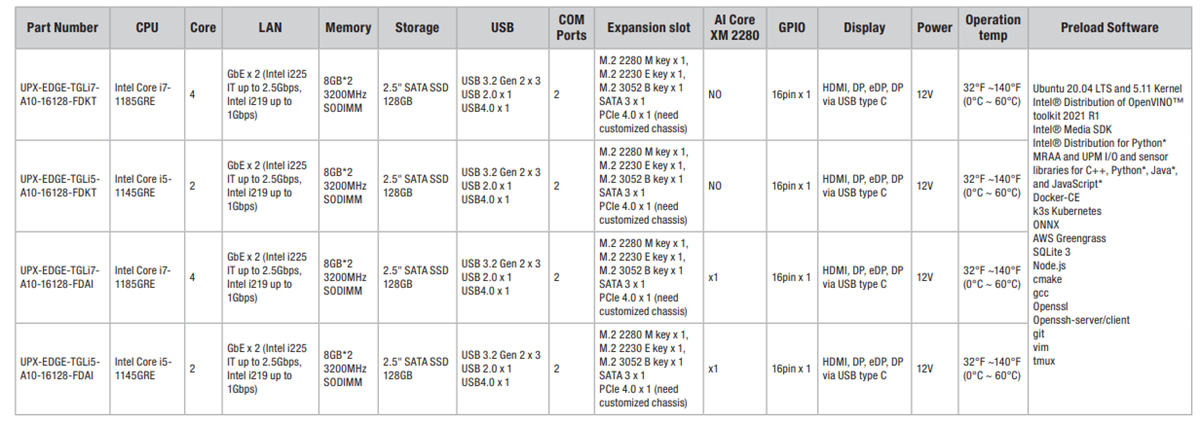

Comparison Chart

Chart - AAEON UP Xtreme i11 Edge Compute Enabling Kits

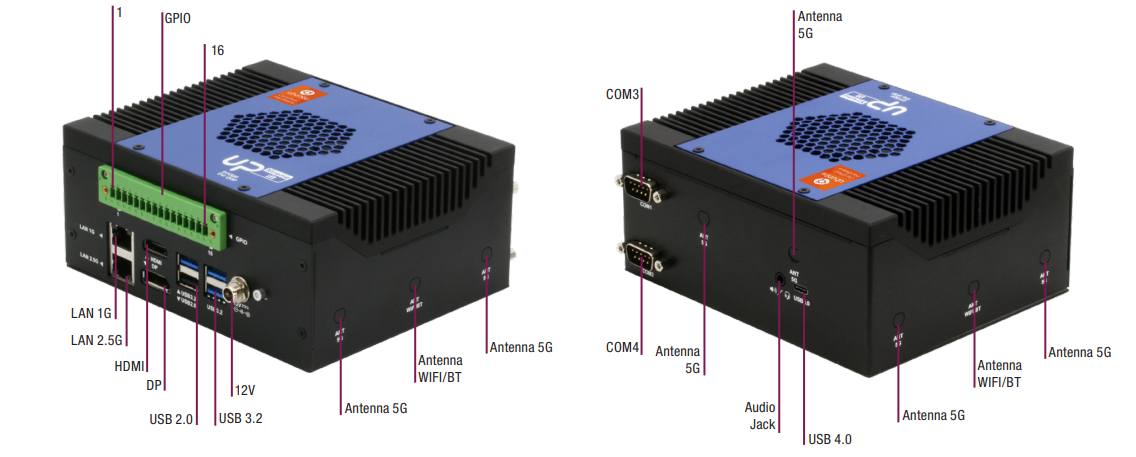

System Overview

AAEON UP Xtreme i11 Edge Compute Enabling Kits

Board Overview

AAEON UP Xtreme i11 Edge Compute Enabling Kits

Block Diagram

Block Diagram - AAEON UP Xtreme i11 Edge Compute Enabling Kits
