Connecting TI LAUNCHXL-CC26X2R1 to the Cloud
Image Source: TierneyMJ/shutterstock.com
By Greg Toth for Mouser Electronics
Published May 20, 2020
The Texas Instruments LAUNCHXL-CC26X2R1 LaunchPad™ Development Kit supports the development of applications
using Bluetooth® Low Energy (BLE) and IEEE 802.15.4-based protocols, including
Thread, ZigBee®, and TI 15.4. The Medium One IoT Platform is a cloud-based IoT platform designed to help
early-stage developers prototype IoT projects or connect existing hardware to the cloud. In this project, we'll
set up an IoT development environment using the LAUNCHXL-CC26X2R1 LaunchPad™ Development Kit, a sensor
add-on board, and a Wi-Fi connectivity module to read temperature, humidity, and pressure sensors and send the
data to the Medium One cloud where it can be processed and viewed using programmable workflows and configurable
widget dashboards.
Project Materials and Resources
The project BOM lists components used in this project. Additional hardware and software
development tools are also identified.
Project Bill of Materials (BOM)
Hardware
- Personal computer (PC) running Microsoft Windows®, MacOS or Linux
- Five (5) Male-to-Female Dupont style jumpers
- Soldering iron
Accounts and Software
- Web browser for accessing software download sites and Medium One IoT Platform
- Login account for the Medium One IoT Platform
- Texas Instruments Code
Composer Studio Integrated Development Environment (IDE)
- Application project files available in GitHub repositories
- Arduino IDE
for configuring the HUZZAH32 board
- Serial terminal program such as Tera Term on the PC
- Wi-Fi access point connection details including SSID and password
Project Technology Overview
TI LAUNCHXL-CC26X2R1 LaunchPad Development Kit
The Texas Instruments LAUNCHXL-CC26X2R1 LaunchPad™ Development Kit (Figure 1) supports
rapid prototyping using the TI CC2652R wireless microcontroller. It has a 32-bit ARM® Cortex®-M4F
processor running at 48MHz with 352KB flash and 80KB RAM along with a full complement of peripherals such as
I2C, SPI, UART, digital and analog input/output, advanced cryptography accelerators, and a Sensor
Controller Engine (SCE). The radio section supports IEEE 802.15.4-based protocols, including Thread, ZigBee®,
and TI 15.4 in addition to Bluetooth® Low Energy (BLE). The board features an integrated PCB antenna for
2.4GHz, onboard XDS110 JTAG emulation tool for flashing and debugging firmware, two user buttons, two user LEDs,
8Mbit serial flash memory, access to all GPIO pins, and connectors for BoosterPack add-on boards. Power is
provided through USB, which also supports programming and debugging as well as serial UART connectivity to a
host computer. An alternate power source can also be used instead of USB.
More detailed information about the board can be found here
and here.
Figure 1: TI LAUNCHXL-CC26X2R1 LaunchPad Development Kit (Source: Mouser
Electronics)
TI BOOSTXL-SENSORS BoosterPack Plug-in Module
For this project, we'll use a Texas Instruments BOOSTXL-SENSORS (Figure 2) add-on board to
provide sensors that our application will read. The BOOSTXL-SENSORS board contains:
- BME280 Integrated Environmental Unit measuring pressure, humidity, and temperature
- BMI160 6-Axis Inertial Measurement Unit with 3-axis accelerometer and 3-axis gyroscope
- BMM150 3-Axis Geomagnetic Sensor for eCompass applications
- TMP007 Contactless Temperature Sensor
- OPT3001 Ambient Light Sensor
More detailed information about the board can be found here.
Figure 2: TI BOOSTXL-SENSORS Sensors BoosterPack Plug-in Module (Source:
Mouser Electronics)
Adafruit HUZZAH32
The LAUNCHXL-CC26X2R1 does not have built-in Wi-Fi Internet connectivity, and for this project, we'll use an
Adafruit HUZZAH32 board as a co-processor providing Wi-Fi connectivity and secure MQTT communications. The
HUZZAH32 will be programmed with an application that provides AT-style commands that will be controlled by the
LAUNCHXL-CC26X2R1 through one of its serial UART interfaces.
TI Code Composer Studio
Firmware programs that run on microcontrollers are typically developed and tested using an Integrated Development
Environment (IDE) running on a personal computer. The IDE provides an editor, compiler, linker, debugger, and a
mechanism for transferring binary program images to the microcontroller.
The LAUNCHXL-CC26X2R1 can be programmed using Texas Instruments Code Composer Studio, an Eclipse-based IDE that
runs on Windows, Mac, and Linux computers. It connects to the LaunchPad board using a USB cable that supports
programming and debugging. Code Composer Studio can be downloaded for free from the Code Composer Studio site.
Project Application Source Code Files
For this project Code Composer Studio was used to create an initial set of project source code files that have
been modified and extended to work with the Medium One IoT Platform. The resulting files have been put in a
GitHub repository that you can download for this project. The project files will be imported into Code Composer
Studio where they'll be compiled and downloaded to the LaunchPad board. The project files consist of a main
application program and supporting functions for I/O and cloud connectivity.
Software for the HUZZAH32 board is available in a second GitHub repository that you will download and program
onto the HUZZAH32 using the Arduino IDE.
Medium One IoT Platform
The Medium One IoT Platform (Figure 3) is designed to help early-stage developers prototype
their IoT project or connect their existing hardware to the cloud. It offers an IoT Data Intelligence platform
enabling customers to quickly build IoT applications with less effort. Programmable workflows allow you to
quickly build processing logic without having to create your own complex software stack. Configurable dashboards
allow you to visualize application data and view real-time data in various formats. Medium One's iOS and Android
apps allow you to build simple mobile app dashboards that can communicate with your devices through the IoT
platform.

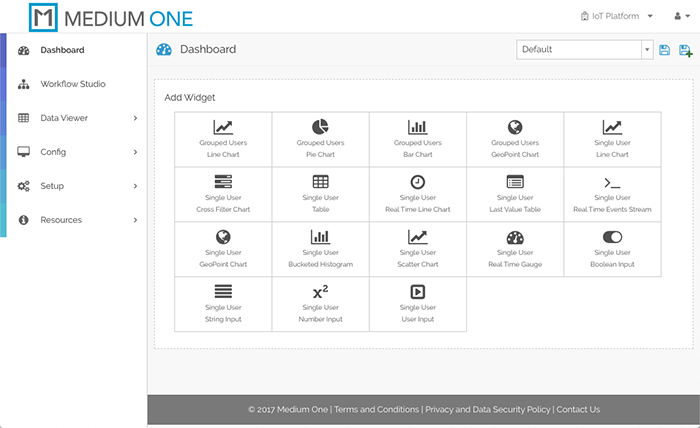

Figure 3: Medium One IoT Platform (Source: Mouser Electronics)
IoT devices can exchange data with Medium One through either a REST API or MQTT. More detailed information about
the Medium One IoT Platform can be found here and on
the Medium One site.
The Setup (Software)
While setting up the hardware, be sure to remember that electronic components are static-sensitive so handle
accordingly.
Personal Computer (PC)
Power up the personal computer and allow it to boot up.
Wi-Fi Access Point
Make sure your Wi-Fi access point is running with an active connection to the internet and a DHCP server that
assigns IP addresses. You'll need to know the access point SSID and security credentials to be used later when
configuring the Wi-Fi connection.
LAUNCHXL-CC26X2R1 LaunchPad Development Kit
Follow the getting
started instructions to set up the LAUNCHXL-CC26X2R1. The main steps will include:
- Connecting the board to your computer using the included USB cable
- Downloading the SimpleLink Starter smartphone app
- Running the SimpleLink Starter app to verify the board is working
BOOSTXL-SENSORS BoosterPack Plug-in Module
Connect the BOOSTXL-SENSORS board to the BoosterPack connectors on the top side of the LaunchPad board. The two
boards will form a stack with the Sensors BoosterPack on top.
Adafruit HUZZAH32
Unbox the HUZZAH32 and follow the setup and assembly instructions found here. Instead of soldering the plain male headers into the board, solder the
female short headers into the board so the sockets face up as shown in Figure 4. Software setup
will be covered in the next section.
Board-to-Board Connections
Use male-to-female jumper wires to connect pins on the LaunchPad board to the HUZZAH32 (Figure
4) according to Table 1.

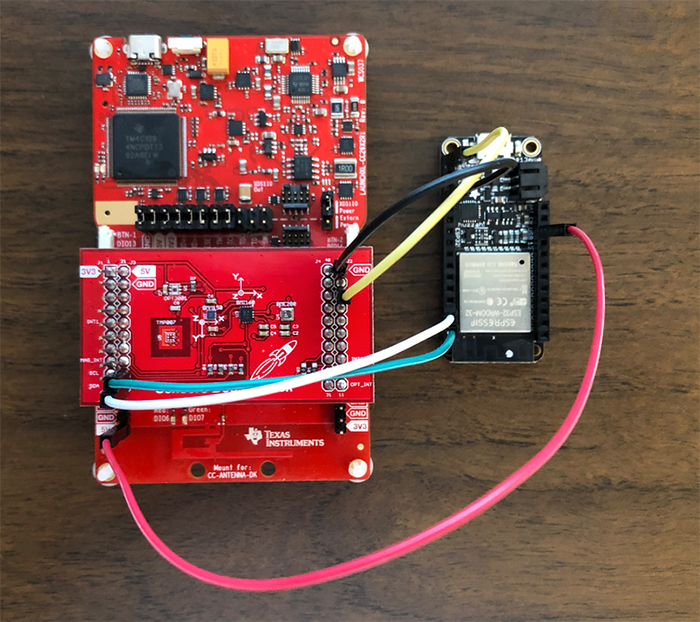

Figure 4: Board-to-Board Connections (Source: Mouser Electronics)
Table 1: Wiring Between LaunchPad and HUZZAH32 (Source: Mouser Electronics)
| LaunchPad |
HUZZAH32 |
Notes |
| Pin # |
Signal |
Pin # |
Signal |
|
| 30 |
DIO1 UART1 TX |
RX |
TX -> RX |
Serial transmit/receive |
| 29 |
DIO0 UART1 RX |
TX |
RX <- TX | Serial receive/transmit |
| 5V |
+5V |
USB |
+5VDC |
Power |
| GND |
GND |
GND |
Ground |
Ground |
| 18 |
DIO11 |
RST |
Reset |
Hardware Reset |
The Setup
Code Composer Studio (CCS)
Web browse to the Code
Composer Studio site and download CCS for your PC. Make sure SimpleLink CC13xx and CC26xx
Wireless MCUs is included in the components to be installed. Connect the LaunchPad board to your PC
and then launch CCS and allow it to apply any updates.
Click on the Resource Explorer tab and navigate through the Software tree to install the following components:
- Software > SimpleLink CC13x2 26x2 SDK - x.xx.xx.xx
- Software > SimpleLink SDK Plugins > SimpleLink Sensor and Actuator Pluging - x.xx.xx.xx
Components are installed by mousing over the component name until three vertical dots appear to the right of the
component, then clicking the three dots and selecting Install from the menu that pops up. After
a component is installed it will have a green or gray checkmark icon showing to the right of the component
(Figure 5).
Figure 5: Code Composer Studio with SDKs Installed (Source: Mouser
Electronics)
Download and Open the Project Application Source Code Files
Web browse to the GitHub repository https://github.com/IoTDevLabs/ma15_files and find the
TI_CC26X2R1_MediumOne_1.0.0.zip file. Download that file to your computer, but do not unzip it.
In CCS, select File > Import … and then Code Composer Studio > CCS Projects,
then click Next. Checkmark Select archive file and click Browse
… to pick the TI_CC26X2R1_MediumOne_1.0.0.zip you downloaded from GitHub. Click
Select All and then click Finish. After a successful import, the Project

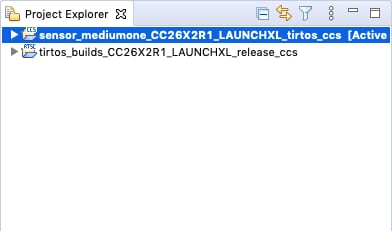

Explorer window should look like Figure 6.
Figure 6: After Importing Projects into CCS (Source: Mouser
Electronics)
We'll come back to the source code files later after setting up Medium One.
Set Up the Medium One Bridge Running on HUZZAH32
Web browse to GitHub repository https://github.com/IoTDevLabs/esp32_mediumone_bridge and follow the
instructions for downloading the repository, installing the Arduino IDE and supporting libraries, opening the
application program, and uploading the program to the HUZZAH32 board. After the HUZZA32 board is programmed, you
can disconnect it from your computer.
Set Up the Medium One IoT Cloud
Web browse to the Medium One
IoT Platform and log in, after which you should see an initial dashboard resembling Figure
3. If you have trouble logging in, check your Medium One credentials to make sure you're using the
latest URL provided with your sandbox subscription. Click Setup > Manage Users > Add New User.
Set Username to mydevice, create a password of your choosing and enter it in
both password fields, then click Save. In the Manage API Users list, you should see a new user
account having Login ID = mydevice and an auto-generated user MQTT ID like Figure
7.

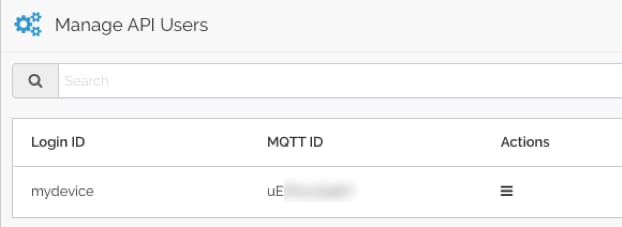

Figure 7: Newly Created User ID (Source: Mouser Electronics)
Click Setup > MQTT and you should see a Project MQTT ID and a set of port numbers like
Figure 8.

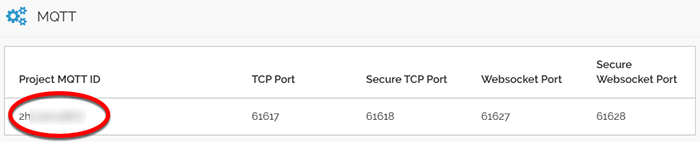

Figure 8: Project MQTT ID (Source: Mouser Electronics)
Medium One uses MQTT usernames and passwords for authentication. The MQTT username is created by combining the
Project MQTT ID, a forward slash, and the user MQTT ID. For example, if the Project MQTT ID is
"ZHxxxxxxx0Y" and the user MQTT ID is "sTxxxxxxx8w" the corresponding MQTT username would be
"ZHxxxxxxx0Y/sTxxxxxxx8w".
Next, we'll create the MQTT password. Navigate to Setup > Manage API Keys > Add New API Key. Set
the description to mydevice, make sure Enabled is check-marked, and click
Save. The result should look like Figure 9.

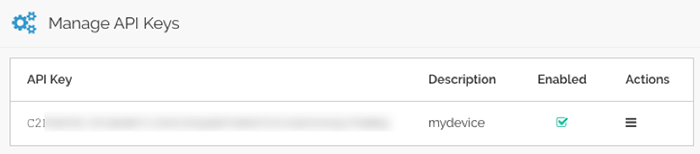

Figure 9: Newly Created API Key (Source: Mouser Electronics)
The MQTT password is created by combining the API Key, a forward slash, and the mydevice user password.
For example, if the API Key is "PZxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxMBQ" and the mydevice user password
is "AaaaBbbb3" the corresponding MQTT password would be
"PZxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxMBQ/AaaaBbbb3".
Update Application Source Code Files for Medium One Account Parameters
Set Wi-Fi Connection Parameters
In Code Composer Studio, expand the sensor_mediumone_CC26X2R1_LAUNCHXL_tirtos_ccs
project and open file sensor_mediumone.c. Find these constants and set them to your own
Wi-Fi SSID and password:
Set Medium One Connection Parameters
In sensor_mediumone.c, find these constants and set them to your own Medium One MQTT
parameter strings as described earlier:
- MQTT_USERNAME
- MQTT_PASSWORD
- MQTT_PUB_TOPIC
Save the modified file and build the project. Verify the code compiles without errors. If you see
compilation errors, check the changes you made to sensor_mediumone.c.
Save the Application
Make sure the LaunchPad board is connected to the PC through USB and the boards are configured as
described in the setup steps. Build the program and then download to the LaunchPad board and run it.
Open the board's serial port in your serial terminal program and set the serial parameters to
115200,N,8,1. You should see messages on the serial port indicating the processing steps being
performed.
How the Application Program Works
This program was created by modifying one of the TI example applications to work with the Medium One
cloud. The high-level program flow includes:
- Initialize hardware
- Maintain processing state machine
- Initialize serial connection to ESP32 bridge
- Connect to Wi-Fi via bridge
- Connect to Medium One MQTT broker via bridge
- Periodically read sensors
- Generate JSON formatted MQTT payload messages and send to Medium One MQTT broker via bridge
MQTT Payload Format
MQTT messages are formatted as JSON strings, according to the Medium One MQTT payload specification.
Here’s an example message:
{"event_data":{"iteration":546,"timestamp":4650868,"temp":72.35,"humidity":40.178,"pressure":99.818 }}
Fields:
- iteration = counter that increments by 1 each event_data message
- timestamp = milliseconds since board started
- temp = temperature in degrees F
- humidity = relative humidity percentage
- pressure = barometric pressure in KPa
Try heating or cooling the temperature sensor to see the data values change.
View Data in the Medium One Dashboard
In the Medium One dashboard, navigate to Data Viewer > Data Streams and click
raw Events. You should see raw messages (Figure 10) being received.
Click the “+” sign to view message details.

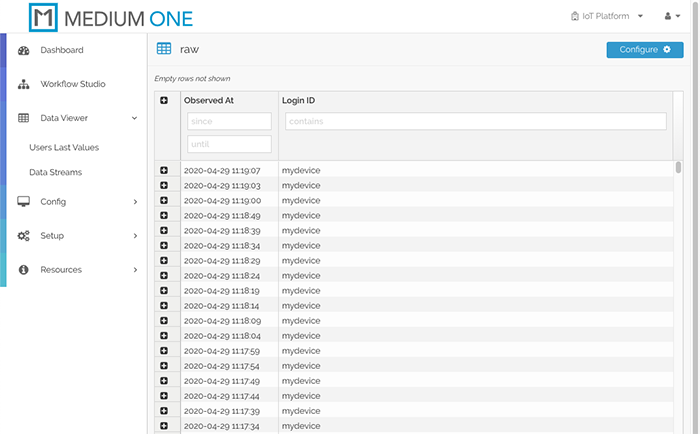

Figure 10: Raw Message Display (Source: Mouser Electronics)
Click Dashboard on the top left, then clickAdd Widget >
Single User Real Time Events Stream to add an event stream
widget to the dashboard.
In the Select user dropdown, select mydevice. You should now see
messages appearing in the
Real Time Events Stream widget (Figure 11). Click the
dashboard save icon in the upper right corner to save your modified
dashboard.
Figure 11: Real Time Events Stream Widget Display (Source: Mouser
Electronics)
Add More Widgets
To display more widgets, we need to enable specific data fields contained in the message payload.
Navigate to Config > Data Streams and click on raw
Events. The Schema Map should be pre-populated with fields detected in the incoming
messages, however, they are currently disabled. Check-mark the Active box on
raw.humidity, raw.iteration, raw.pressure,
raw.temp, and raw.timestamp, then click Save Data
Stream. These fields are now available for use in other dashboard widgets.
Back on the dashboard, click the Single User Last Value Table widget and select the
mydevice user within the widget. Click the widget’s Tag Config
icon to the right of the mydevice user selection and check-mark raw:humidity,
raw:iteration, raw:pressure, raw:temp, and
raw:timestamp, then click Save. The Last Value Table should now
populate with the most recent received values for each field (Figure 12). Click the
dashboard save icon toward the upper-right corner to save the updated dashboard.

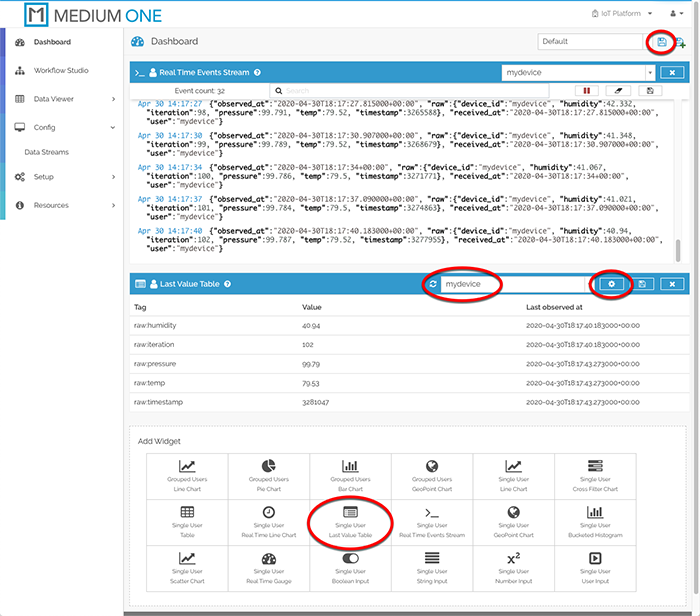

Figure 12: Last Value Table Widget Display (Source: Mouser
Electronics)
Now let’s add dashboard widgets for the temperature, humidity, pressure, and iteration counter.
Click Single User Real Time Gauge and select the mydevice user. Click
the widget’s Tag Config icon and check-mark raw:humidity,
raw:iteration, raw:pressure, and raw:temp, then click
Save. The updated dashboard should look like Figure 13. Click the
dashboard save icon to save the updated dashboard. Try heating or cooling the temperature sensor to see
the gauge values change.

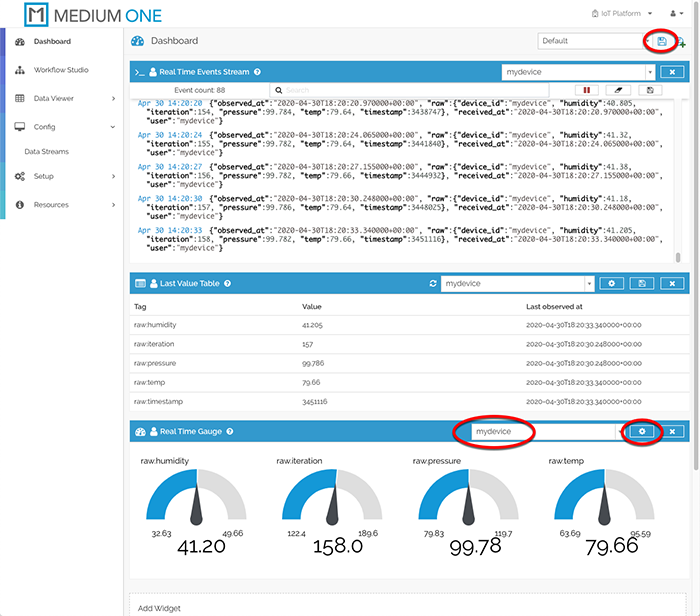

Figure 13: Real-Time Gauge Widgets Added to Dashboard (Source:
Mouser Electronics)
At this point, your boards are running continuously, periodically reading the sensors and transmitting
data measurements to the Medium One cloud through the Internet. Remember to power off the board when
you’re done, otherwise, the board will continue to send messages to Medium One and consume daily
message allotments.
Troubleshooting Tips
- Make sure the board-to-board wiring is correct.
- Make sure HUZZAH32 is set up and programmed according to the instructions.
- Make sure Code Composer Studio is installed and configured according to the instructions.
- View information messages on the LAUNCHXL-CC26X2R1 USB serial port.
- View information messages on the HUZZAH32 USB serial port.
Conclusion and Where to Go Next
This project created an end-to-end sensor-to-cloud application that sends real-time sensor data to the
Medium One IoT Platform through the internet. It can be modified and extended in a number of ways and
here are a few examples:
- Dive deeper into the application code and board hardware by reading the TI user guides and studying
the source code.
- Add more widgets to the Medium One dashboard, such as a real-time line chart of temperature and
humidity readings.
- Learn about the Medium One Workflow Studio, which lets you create data processing workflows to
transform your sensor data.
- Experiment with the Medium One mobile apps.
- Modify the sensor data publishing interval by modifying the application source code.
- Read other sensors on the BOOSTXL-SENSORS board and include the data in messages sent to Medium One.
- Explore other TI BoosterPack boards that are available.
Author Bio
Greg is an
architect, engineer and consultant with more than 30 years experience in sensors, embedded systems, IoT,
telecommunications, enterprise systems, cloud computing, data analytics, and hardware/software/firmware
development. He has a BS in Electrical Engineering from the Univ. of Notre Dame and a MS in Computer
Engineering from the Univ. of Southern California.
