NVH4L040N65S3F

Name: onsemi NVH4L040N65S3F
Brand: onsemi
SKU: 863-NVH4L040N65S3F
Price: 13.04 EUR
Availability: InStock

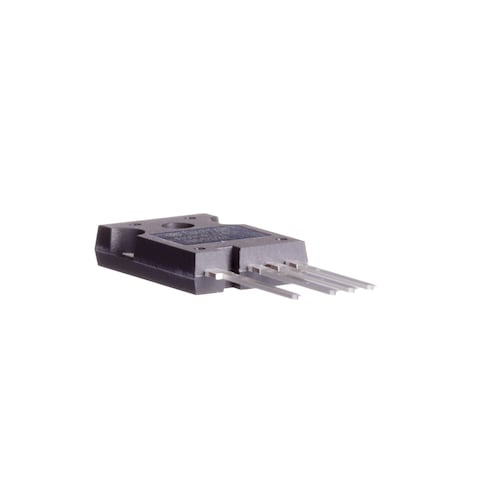

Images are for reference only
See Product Specifications

Mouser No:

863-NVH4L040N65S3F

Mfr. No:

NVH4L040N65S3F

Mfr.:

onsemi

Description:

MOSFETs SF3 FRFET AUTO 40MOHM T

Datasheet:

NVH4L040N65S3F Datasheet

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about onsemi NVH4L040N65S3F

In Stock: 12

Stock:: 12 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 18 Weeks Estimated factory production time for quantities greater than shown.

Quantities greater than 12 will be subject to minimum order requirements.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	13,04 €	13,04 €
	8,00 €	80,00 €
	7,78 €	778,00 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	onsemi
Product Category:	MOSFETs
RoHS:
Technology:	Si
Mounting Style:	Through Hole
Package/Case:	TO-247-4
Transistor Polarity:	N-Channel
Number of Channels:	1 Channel
Vds - Drain-Source Breakdown Voltage:	650 V
Id - Continuous Drain Current:	65 A
Rds On - Drain-Source Resistance:	40 mOhms
Vgs - Gate-Source Voltage:	- 30 V, 30 V
Vgs th - Gate-Source Threshold Voltage:	5 V
Qg - Gate Charge:	160 nC
Minimum Operating Temperature:	- 55 C
Maximum Operating Temperature:	+ 150 C
Pd - Power Dissipation:	446 W
Channel Mode:	Enhancement
Packaging:	Tube
Brand:	onsemi
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	CN
Product Type:	MOSFETs
Series:	NVH4L040N65S3F
Factory Pack Quantity:	450
Subcategory:	Transistors

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

NVH4L040N65S3F Datasheet

PCN

Product Change Notification (PDF)

Material Composition Disclosure

TARIC:: 8541290000
CNHTS:: 8541290000
USHTS:: 8541290065
ECCN:: EAR99

SuperFET® III MOSFETs

onsemi SuperFET® III MOSFETs are high voltage Super-Junction (SJ) N-Channel MOSFETs designed to meet the high power density, system efficiency, and exceptional reliability requirements of telecom, server, electric vehicle (EV) charger and solar products. These devices combine best-in-class reliability, low EMI, excellent efficiency, and superior thermal performance to make them an ideal choice for high-performance applications. Complementing their performance characteristics, the broad range of package options offered by onsemi SuperFET III MOSFETs gives product designers high flexibility, particularly with size-constrained designs.
