FCB20N60TM

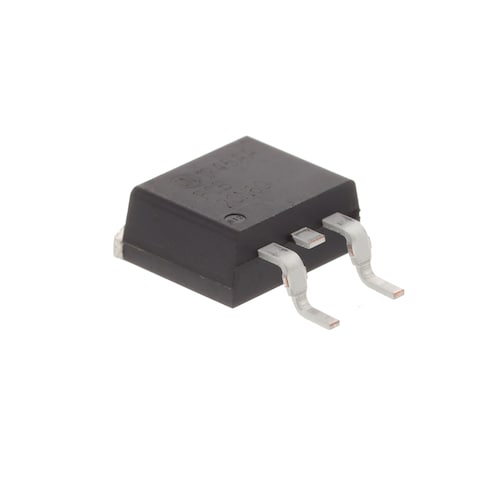

Name: onsemi FCB20N60TM
Brand: onsemi
SKU: 512-FCB20N60TM
Price: 4.92 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

512-FCB20N60TM

Mfr. No:

FCB20N60TM

Mfr.:

onsemi

Datasheet:

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

Stock:: 7.373 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 14 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Packaging:

Full Reel (Order in multiples of 800)

Cut Tape

MouseReel™ (+5,00 €)

Qty.	Unit Price	Ext. Price
Cut Tape / MouseReel™ ^†
	4,92 €	4,92 €
	3,70 €	37,00 €
	2,68 €	268,00 €
	2,50 €	1.250,00 €
Full Reel (Order in multiples of 800)
	2,50 €	2.000,00 €

† A MouseReel™ fee of 5,00 € will be added and calculated in your basket. All MouseReel™ orders are non-cancellable and non-returnable. ↩

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	onsemi
Product Category:	MOSFETs
RoHS:
REACH - SVHC:
Technology:	Si
Mounting Style:	SMD/SMT
Package/Case:	D2PAK-3
Transistor Polarity:	N-Channel
Number of Channels:	1 Channel
Vds - Drain-Source Breakdown Voltage:	600 V
Id - Continuous Drain Current:	20 A
Rds On - Drain-Source Resistance:	190 mOhms
Vgs - Gate-Source Voltage:	- 30 V, 30 V
Vgs th - Gate-Source Threshold Voltage:	3 V
Qg - Gate Charge:	98 nC
Minimum Operating Temperature:	- 55 C
Maximum Operating Temperature:	+ 150 C
Pd - Power Dissipation:	208 W
Channel Mode:	Enhancement
Tradename:	SuperFET
Packaging:	Reel
Packaging:	Cut Tape
Packaging:	MouseReel
Brand:	onsemi
Configuration:	Single
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	CN
Fall Time:	65 ns
Product Type:	MOSFETs
Rise Time:	140 ns
Series:	FCB20N60
Factory Pack Quantity:	800
Subcategory:	Transistors
Transistor Type:	1 N-Channel
Typical Turn-Off Delay Time:	230 ns
Typical Turn-On Delay Time:	62 ns
Unit Weight:	4 g
