TPS65197RUYR

TPS65197/B 8-Channel Level-Shifter

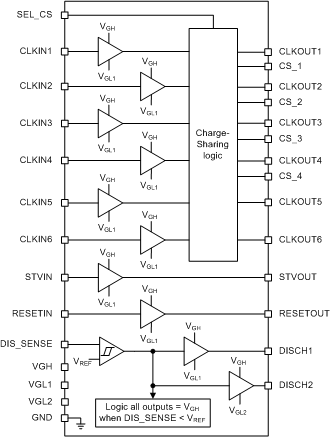

Texas Instruments TPS65197/B 8-Channel Level-Shifter includes a discharge function intended for use in LCD display applications such as Notebooks, Monitors, and TVs. The device converts the timing-controller (T-CON) logic-level signals to the high-level signals needed by the gate-in-panel (GIP) display. The clock outputs, support normal level shifting operation and 2-channel or 3-channel charge-sharing. This can be used to improve picture quality and power consumption. At power down, all outputs follow their input signals as long as possible. When the discharge function is used, the outputs are pulled high (VGH). Typical applications include GIP LCDs in notebooks, monitors, and TVs.
