ADS7952QDBTRQ1

Name: Texas Instruments ADS7952QDBTRQ1
Brand: Texas Instruments
SKU: 595-ADS7952QDBTRQ1
Price: 9.75 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

595-ADS7952QDBTRQ1

Mfr. No:

ADS7952QDBTRQ1

Mfr.:

Texas Instruments

Description:

Analog to Digital Converters - ADC Auto 12B 1MSPS 12Ch ADC

Datasheet:

ADS7952QDBTRQ1 Datasheet

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Texas Instruments ADS7952QDBTRQ1

In Stock: 1.382

Stock:: 1.382 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 18 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Packaging:

Full Reel (Order in multiples of 2000)

Cut Tape

MouseReel™ (+5,00 €)

Pricing (EUR)

Qty.	Unit Price	Ext. Price
Cut Tape / MouseReel™ ^†
	9,75 €	9,75 €
	7,64 €	76,40 €
	7,11 €	177,75 €
	6,54 €	654,00 €
	6,25 €	1.562,50 €
	6,09 €	3.045,00 €
	5,95 €	5.950,00 €
Full Reel (Order in multiples of 2000)
	5,84 €	11.680,00 €
4.000	Quote

† A MouseReel™ fee of 5,00 € will be added and calculated in your basket. All MouseReel™ orders are non-cancellable and non-returnable. ↩

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Texas Instruments
Product Category:	Analog to Digital Converters - ADC
RoHS:
Series:	ADS7952
Mounting Style:	SMD/SMT
Package/Case:	TSSOP-38
Resolution:	12 bit
Number of Channels:	12 Channel
Interface Type:	SPI
Sampling Rate:	1 MS/s
Input Type:	Single-Ended
Architecture:	SAR
Analogue Supply Voltage:	2.7 V to 5.25 V
Digital Supply Voltage:	1.7 V to 5.25 V
SNR - Signal to Noise Ratio:	70 dB
Minimum Operating Temperature:	- 40 C
Maximum Operating Temperature:	+ 125 C
Qualification:	AEC-Q100
Packaging:	Reel
Packaging:	Cut Tape
Packaging:	MouseReel
Brand:	Texas Instruments
Moisture Sensitive:	Yes
Pd - Power Dissipation:	14.5 mW
Power Consumption:	14.5 mW
Product Type:	ADCs - Analog to Digital Converters
Reference Type:	External
Reference Voltage:	2.5 V
SINAD - Signal to Noise and Distortion Ratio:	71.3 dB
Factory Pack Quantity:	2000
Subcategory:	Data Converter ICs
Supply Voltage - Max:	5.25 V
Supply Voltage - Min:	1.7 V
Type:	ADC
Unit Weight:	203,800 mg

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

ADS7952QDBTRQ1 Datasheet

Application Notes

Temperature Monitoring in HEV and EV Traction Inverter Systems Using ADS795x-Q1

Images

This functionality requires JavaScript to be enabled.

TARIC:: 8542399000
CNHTS:: 8542399000
CAHTS:: 8542390000
USHTS:: 8542390030
JPHTS:: 854239099
MXHTS:: 8542399901
ECCN:: EAR99

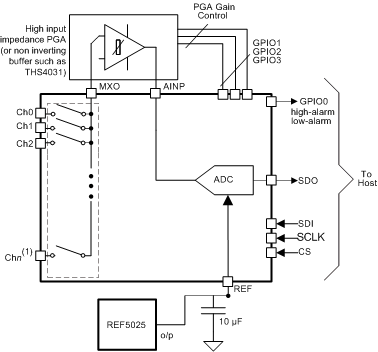

ADS7952/57 Micropower Serial Interface ADCs
