368135-1

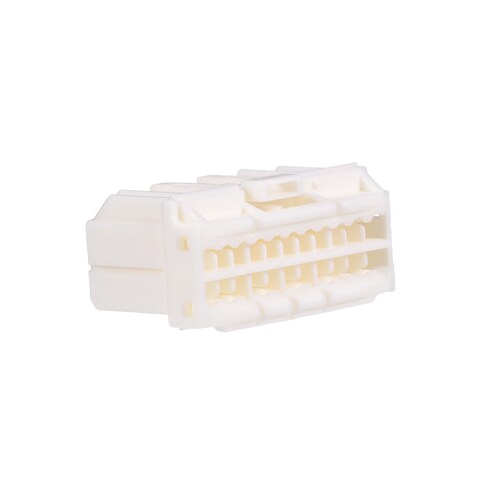

Name: TE Connectivity 368135-1
Brand: TE Connectivity
SKU: 571-368135-1
Price: 0.94 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

571-368135-1

Mfr. No:

368135-1

Mfr.:

TE Connectivity

Description:

Automotive Connectors 040/070 HYB 22P PLUG HSG

Datasheet:

368135-1 Datasheet

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about TE Connectivity 368135-1

In Stock: 797

Stock:: 797 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 18 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	0,946 €	0,95 €
	0,801 €	8,01 €
	0,715 €	17,88 €
	0,665 €	66,50 €
	0,632 €	176,96 €
	0,593 €	332,08 €
	0,543 €	608,16 €
	0,522 €	1.315,44 €
	0,509 €	2.565,36 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	TE Connectivity
Product Category:	Automotive Connectors
RoHS:
Product:	Housings
Number of Positions:	22 Position
Gender:	Receptacle (Female)
Mounting Style:	Cable Mount / Free Hanging
Termination Style:	Crimp
Wire Gauge Min:	22 AWG
Wire Gauge Max:	16 AWG
Color:	Natural
Series:	.040/.070 MULTILOCK
Packaging:	Bulk
Application:	Wire to Wire
Brand:	TE Connectivity
Contact Gender:	Without Socket Contacts
Contact Type:	Receptacle
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	KR
Current Rating:	9 A to 19 A
Height:	21 mm
Housing Material:	Polybutylene Terephthalate (PBT)
Length:	36.1 mm
Maximum Operating Temperature:	+ 105 C
Minimum Operating Temperature:	- 30 C
Number of Rows:	2 Row
Product Type:	Automotive Connectors
Row Spacing:	5.2 mm
Factory Pack Quantity:	140
Subcategory:	Automotive Connectors
Tradename:	MULTILOCK
Type:	Plug Housing
Width:	28 mm
Wire Gauge Range:	22 AWG to 16 AWG
Unit Weight:	7,020 g

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

368135-1 Datasheet

Images

RoHS Certificate (PDF)

TARIC:: 8538909999
CNHTS:: 8538900000
CAHTS:: 8538903900
USHTS:: 8538908180
JPHTS:: 853890000
BRHTS:: 85389090
ECCN:: EAR99

.040/.070 Hybrid MULTILOCK Connectors

TE Connectivity's (TE) .040/.070 MULTILOCK Series is a hybrid system that incorporates both the .040 and .070 Series. The system has connectors for use with a mixture of .040 terminals for signal circuits and .070 terminals for power circuits. TE MULTILOCK connectors offer a versatile variation in a number of positions ranging from 26 to 76, and the contacts are available with pre-tinned or gold plating.

MULTILOCK Connector System

TE Connectivity's (TE) MULTILOCK Connectors are durable wire-to-wire and wire-to-board connectors. TE's MULTILOCK Connectors are ideal for the automotive industry and are available in .025/.040/.070 and hybrid versions. The connectors consist of a plug housing with receptacle contacts and a cap housing with tab contacts for wire termination. Additionally, the cap housing assembly can be mounted onto the printed circuit board either vertically or horizontally.
