281839-8

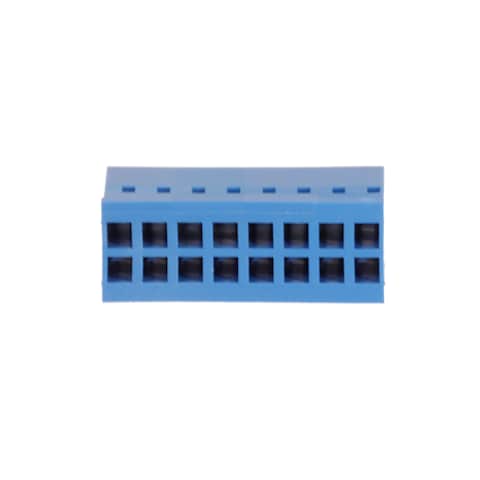

Name: TE Connectivity 281839-8
Brand: TE Connectivity
SKU: 571-281839-8
Price: 0.66 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

571-281839-8

Mfr. No:

281839-8

Mfr.:

TE Connectivity

Description:

Headers & Wire Housings RECPT 2X08 POS

Datasheet:

281839-8 Datasheet

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

In Stock: 7.770

Stock:: 7.770

Can Dispatch Immediately

An unexpected error occurred. Please try again later.
On Order:: 35

Expected 2/27/2026
Factory Lead Time:: 41

Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	0,662 €	0,66 €
	0,566 €	5,66 €
	0,505 €	12,63 €
	0,48 €	48,00 €
	0,451 €	112,75 €
	0,428 €	214,00 €
	0,409 €	409,00 €
	0,366 €	915,00 €
	0,338 €	1.690,00 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	TE Connectivity
Product Category:	Headers & Wire Housings
RoHS:
Product:	Wire Housings
Type:	Receptacle Housing
Number of Positions:	8 Position
Pitch:	2.54 mm (0.1 in)
Number of Rows:	2 Row
Row Spacing:	2.54 mm (0.1 in)
Mounting Style:	Cable Mount / Free Hanging
Termination Style:	Crimp
Contact Gender:	Socket (Female)
Series:	HE13 / HE14
Tradename:	AMPMODU
Application:	Wire-to-Board
Minimum Operating Temperature:	- 55 C
Maximum Operating Temperature:	+ 125 C
Brand:	TE Connectivity
Contact Type:	Socket (Female)
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	PL
Housing Colour:	Blue
Housing Gender:	Receptacle
Housing Material:	Polybutylene Terephthalate (PBT)
Product Type:	Headers & Wire Housings
Factory Pack Quantity:	500
Subcategory:	Headers & Wire Housings
Unit Weight:	1,737 g

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

281839-8 Datasheet

Images

PCN

RoHS Certificate (PDF)

TARIC:: 8547200090
CNHTS:: 8547200000
CAHTS:: 8536690020
USHTS:: 8538906000
JPHTS:: 853669000
KRHTS:: 8536691000
MXHTS:: 8536699999
BRHTS:: 85366990
ECCN:: EAR99

AMPMODU Interconnection System

TE Connectivity's (TE) AMPMODU Interconnection System provides connections with a unique modular concept, utilizing precision-formed receptacle contacts and mating posts. Mating of the post and receptacle contacts of this system is very tolerant. This is made possible by a post with a burr-free lead-in and a receptacle contact featuring double cantilever beams and anti-overstress stops.
