2383938-5

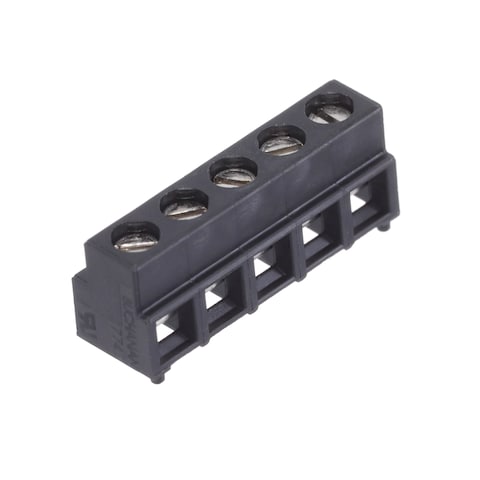

Name: TE Connectivity 2383938-5
Brand: TE Connectivity
SKU: 571-2383938-5
Price: 2.86 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

571-2383938-5

Mfr. No:

2383938-5

Mfr.:

TE Connectivity

Description:

Pluggable Terminal Blocks TERMI-BLOK SMD MOUNT 180_5P_5 MM

Datasheet:

2383938-5 Datasheet

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about TE Connectivity 2383938-5

In Stock: 690

Stock:: 690 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 12 Weeks Estimated factory production time for quantities greater than shown.

Quantities greater than 690 will be subject to minimum order requirements.

Enter Quantity:

Minimum: 230 Multiples: 230

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

This Product Ships FREE

Pricing (EUR)

Qty.	Unit Price	Ext. Price
Full Reel (Order in multiples of 230)
	2,86 €	657,80 €
	2,52 €	1.159,20 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	TE Connectivity
Product Category:	Pluggable Terminal Blocks
RoHS:
REACH - SVHC:
Product:	Headers
Number of Positions:	5 Position
Pitch:	5 mm
Connection Method:	Screw
Termination Style:	Solder
Mounting Style:	SMD/SMT
Current Rating:	13.5 A
Voltage Rating:	300 VAC
Wire Gauge Min:	30 AWG
Wire Gauge Max:	16 AWG
Color:	Black
Packaging:	Reel
Brand:	TE Connectivity
Contact Material:	Copper Alloy
Contact Plating:	Tin
Flammability Rating:	UL 94 V-0
Height:	10 mm
Housing Material:	Polyamide (PA)
Length:	25.8 mm
Mounting Angle:	Vertical
Product Type:	Pluggable Terminal Blocks
Factory Pack Quantity:	230
Subcategory:	Terminal Blocks
Width:	8.2 mm
Wire Orientation:	Side

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

2383938-5 Datasheet

This functionality requires JavaScript to be enabled.

Compliance Codes

TARIC:: 8536693000
CAHTS:: 8536690020
USHTS:: 8536694040
JPHTS:: 853669000
KRHTS:: 8536691000
MXHTS:: 8536699999
BRHTS:: 85366990
ECCN:: EAR99

Origin Classifications

Country of Origin:: Italy
Assembly Country of Origin:: Not available
Country of Diffusion:: Not available

The country is subject to change at the time of shipment.

Board Mount Reflow Terminal Blocks

TE Connectivity's (TE) Board Mount Reflow Terminal Blocks feature high-temperature-resistant materials with rising clamp technology via screw termination. TE Board Mount Reflow Terminal Blocks are reflow solder capable to +260°C and operate over a -40°C to +105°C temperature range. The small dimensions and reflow capability create ideal opportunities for building automation applications where space savings are key to drive an overall smaller size or to increase electronic content within the existing application space. The series offers easy termination and is aligned with the trend of moving from wave to reflow soldering.
