2344604-1

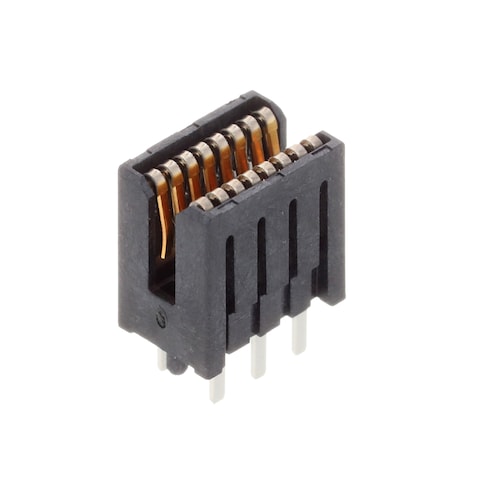

Name: TE Connectivity 2344604-1
Brand: TE Connectivity
SKU: 571-2344604-1
Price: 6.21 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

571-2344604-1

Mfr. No:

2344604-1

Mfr.:

TE Connectivity

Description:

Standard Card Edge Connectors 50 AMP CARD EDGE ASSEMBLY

Datasheet:

2344604-1 Datasheet

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about TE Connectivity 2344604-1

In Stock: 839

Stock:: 839 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 11 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	6,21 €	6,21 €
	5,28 €	52,80 €
	4,95 €	123,75 €
	4,71 €	235,50 €
	4,49 €	449,00 €
	4,36 €	1.308,00 €
	4,04 €	2.424,00 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	TE Connectivity
Product Category:	Standard Card Edge Connectors
RoHS:
Product:	Receptacles
Mounting Style:	Mounting Peg
Mounting Angle:	Straight
Contact Plating:	Gold
Brand:	TE Connectivity
Contact Material:	Copper Alloy
Current Rating:	55 A
Housing Material:	Liquid Crystal Polymer (LCP)
Maximum Operating Temperature:	+ 85 C
Minimum Operating Temperature:	- 55 C
Number of Rows:	2 Row
Product Type:	Standard Card Edge Connectors
Factory Pack Quantity:	300
Subcategory:	Card Edge Connectors

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Compliance Codes

TARIC:: 8536693000
CNHTS:: 8536901100
CAHTS:: 8536690020
USHTS:: 8536694040
JPHTS:: 853669000
KRHTS:: 8536691000
MXHTS:: 8536699999
BRHTS:: 85366990
ECCN:: EAR99

Origin Classifications

Country of Origin:: China
Assembly Country of Origin:: Not available
Country of Diffusion:: Not available

The country is subject to change at the time of shipment.

Sliver 2.0 Connectors

TE Connectivity's Sliver 2.0 Connectors are protocol-agnostic multi-lane high-speed connectors designed for servers and storage. These connectors meet all current protocol requirements for PCIe Gen3/4, SAS-3/4, Infiniband, and Ethernet protocols. The Sliver 2.0 connectors are also expected to meet performance for IEEE and OIF 56Gbps, SAS5, and PCIE Gen5. These connectors can be used as an alternative or replacement for many form-factors including M.2, PCIe, and U.2. The Sliver 2.0 connectors feature high density, high performance, and hot-pluggable function. These connectors are available in various size options including 1C(x4), 2C(x8), and 4C/4C+ (16) in both right angle, and vertical sizes. Typical applications include storage, server, network, and other data communication connectivity needs.
