2316315-2

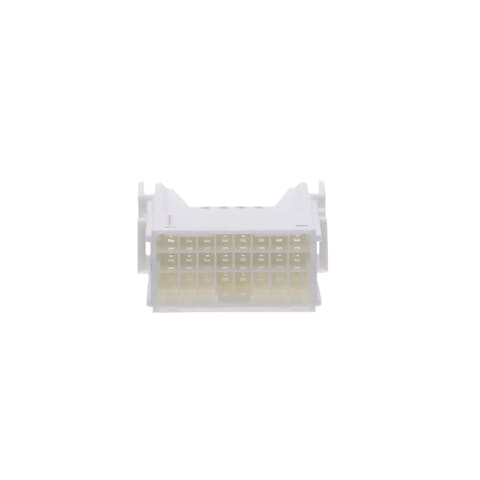

Name: TE Connectivity 2316315-2
Brand: TE Connectivity
SKU: 571-2316315-2
Price: 4.84 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

571-2316315-2

Mfr. No:

2316315-2

Mfr.:

TE Connectivity

Description:

Heavy Duty Power Connectors HMN-HD1-24-M

Datasheet:

2316315-2 Datasheet

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about TE Connectivity 2316315-2

In Stock: 333

Stock:: 333 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 21 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	4,84 €	4,84 €
	4,46 €	44,60 €
	4,45 €	160,20 €
	3,37 €	363,96 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	TE Connectivity
Product Category:	Heavy Duty Power Connectors
RoHS:
Product:	Inserts
Current Rating:	3.7 A
Number of Positions:	24 Position
Termination Style:	Crimp
Voltage Rating:	300 V
Housing Material:	Polybutylene Terephthalate (PBT)
Brand:	TE Connectivity
Contact Gender:	Pin (Male)
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	CN
Maximum Operating Temperature:	+ 125 C
Minimum Operating Temperature:	- 40 C
Mounting Style:	Free Hanging
Product Type:	Heavy Duty Power Connectors
Factory Pack Quantity:	36
Subcategory:	Power Connectors

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

2316315-2 Datasheet

PCN

Product Change Notification 2025-4-3 (PDF)

This functionality requires JavaScript to be enabled.

TARIC:: 8536901000
CNHTS:: 8547200000
USHTS:: 8536904000
ECCN:: EAR99

Heavy Duty Connectors with Dynamic Inserts

TE Connectivity's (TE) Heavy Duty Connectors (HDC) with Dynamic Inserts are designed for harsh environments in industrial applications. TE HDC Dynamic series uses semi-automatic or fully automatic crimping of dynamic contacts, increasing the cost-effectiveness of the cable assembly. The compact design of the series offers users more design flexibility with a high density up to 48 contacts and handling over-voltage requirements to 300V in a single module. Building on TE's proven dynamic contacts technology, the HDC Dynamic Connectors deliver performance comparable with traditional HDC connectors.
