2274845-1

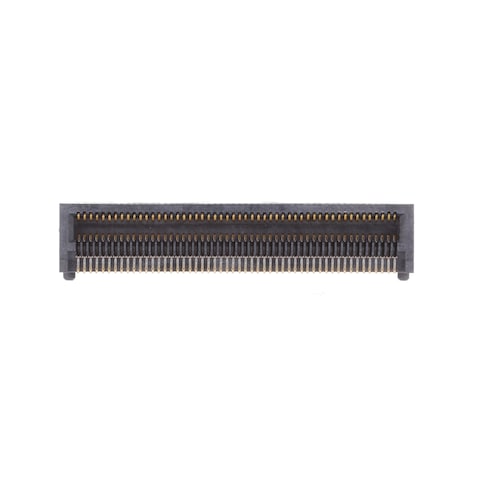

Name: TE Connectivity 2274845-1
Brand: TE Connectivity
SKU: 571-2274845-1
Price: 29.83 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

571-2274845-1

Mfr. No:

2274845-1

Mfr.:

TE Connectivity

Description:

I/O Connectors CFP2 RECEPTACLE ASSEMBLY

Datasheet:

2274845-1 Datasheet

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about TE Connectivity 2274845-1

In Stock: 107

Stock:: 107 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 7 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	29,83 €	29,83 €
	25,36 €	253,60 €
	24,28 €	607,00 €
600	Quote

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	TE Connectivity
Product Category:	I/O Connectors
RoHS:
Product:	CFP Connectors
Gender:	Female
Number of Positions:	104 Position
Pitch:	0.6 mm
Contact Plating:	Gold
Mounting Style:	Mounting Peg
Termination Style:	SMD/SMT
Mounting Angle:	Right Angle
Series:	CFP2
Minimum Operating Temperature:	- 55 C
Maximum Operating Temperature:	+ 85 C
Brand:	TE Connectivity
Contact Material:	Copper Alloy
Data Rate:	25 Gb/s
Housing Material:	Liquid Crystal Polymer (LCP)
Number of Ports:	1 Port
Product Type:	I/O Connectors
Factory Pack Quantity:	300
Subcategory:	I/O Connectors
Type:	Receptacle
Unit Weight:	4,570 g

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

2274845-1 Datasheet

PCN

RoHS Certificate (PDF)

TARIC:: 8536699099
CNHTS:: 8536901100
CAHTS:: 8536690020
USHTS:: 8536694040
JPHTS:: 853669000
MXHTS:: 85366999
BRHTS:: 85366990
ECCN:: EAR99

CFP2 & CFP4 Pluggable I/O Connectors & Cages

TE Connectivity's CFP2 and CFP4 Pluggable I/O Connectors and Cages transfer data 2.8 times faster than current CFP connectors. CFP2 and CFP4 achieve 28Gbps per lane for greater than 100Gbps Ethernet (and other protocols) in a high density, 0.6mm contact pitch. These TE connectors provide excellent signal integrity and feature a ruggedized cage construction, helping ensure reliable connections. Applications include carrier networks and datacenters, metro area networks, and high-capacity multi-100Gbps links.

CFP Compliant Ethernet Connectors

TE Connectivity's CFP Compliant Ethernet Connectors meet the requirements of the CFP MSA specification. The CFP compliant connector is an ultra-high speed pluggable I/O interface supporting 40 Gb/s and 100 Gb/s ethernet applications. The 148 position plug connector straddle mounts to the Optical Transceiver module PCB and the receptacle connector is SMT processed to the host board for conventional processing. TE's CFP Compliant Ethernet Connectors and Components are designed to support belly-to-belly port positioning for high density and provides EMI shielding at the host connector interface.
