2238007-1

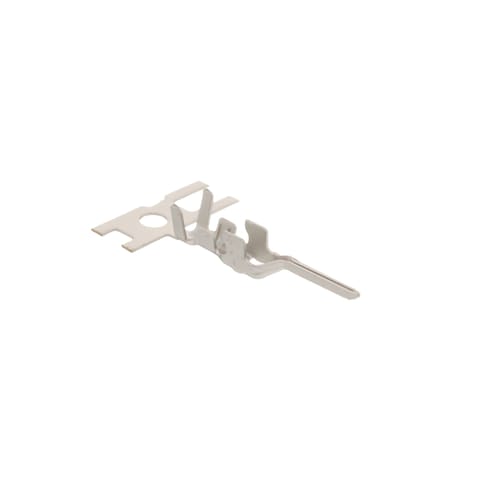

Name: TE Connectivity 2238007-1
Brand: TE Connectivity
SKU: 571-2238007-1
Price: 0.08 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

571-2238007-1

Mfr. No:

2238007-1

Mfr.:

TE Connectivity

Description:

Headers & Wire Housings LANCELESS, TERMINAL PIN, 22-26 AWG, EP2

Datasheet:

2238007-1 Datasheet

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about TE Connectivity 2238007-1

In Stock: 24.026

Stock:: 24.026 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 9 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	0,086 €	0,09 €
	0,04 €	0,40 €
	0,037 €	0,93 €
	0,035 €	3,50 €
	0,031 €	7,75 €
	0,03 €	30,00 €
	0,028 €	70,00 €
	0,022 €	110,00 €
Full Reel (Order in multiples of 8000)
	0,02 €	160,00 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	TE Connectivity
Product Category:	Headers & Wire Housings
RoHS:
Product:	Contacts
Mounting Style:	Cable Mount / Free Hanging
Termination Style:	Crimp
Contact Gender:	Pin (Male)
Contact Plating:	Tin
Application:	Wire-to-Wire
Wire Gauge:	26 AWG to 22 AWG
Minimum Operating Temperature:	- 40 C
Maximum Operating Temperature:	+ 105 C
Packaging:	Reel
Packaging:	Cut Tape
Brand:	TE Connectivity
Contact Material:	Brass
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	CN
Product Type:	Headers & Wire Housings
Factory Pack Quantity:	8000
Subcategory:	Headers & Wire Housings
Voltage Rating:	250 V
Unit Weight:	1 g

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

2238007-1 Datasheet

Images

RoHS Certificate (PDF)

TARIC:: 8536901000
CNHTS:: 8536901100
CAHTS:: 8536900020
USHTS:: 8536904000
JPHTS:: 853690000
KRHTS:: 8536909010
MXHTS:: 8536902800
BRHTS:: 85369090
ECCN:: EAR99

Economy Power Connectors

TE Connectivity's (TE) Economy Power Connectors are compact single-row or dual-row crimp connectors based on a 2.5mm (0.098") centerline pitch. The EP 2.5 series comprises housings, contacts, headers, and optional contact retainers. The contact retainers offer terminal position assurance (TPA). When inserted, these optional TPA retainers maintain full contact insertion within the housing. In applications with random vibration, these TE connectors help prevent the contacts from backing out of the housings.
