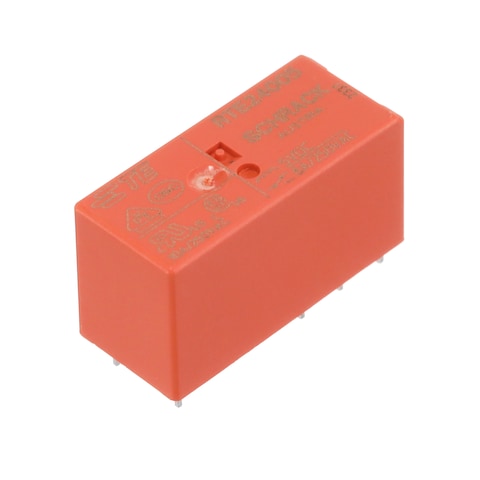

RTE24005

Name: TE Connectivity RTE24005
Brand: TE Connectivity / Schrack
SKU: 655-RTE24005
Price: 3.9 EUR
Availability: OutOfStock

Images are for reference only
See Product Specifications

Mouser No:

655-RTE24005

Mfr. No:

RTE24005

Mfr.:

TE Connectivity / Schrack

Description:

General Purpose Relays DPDT 8Amps

Datasheet:

RTE24005 Datasheet

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about TE Connectivity / Schrack RTE24005

Availability

Stock:: 0

You can still purchase this product for backorder.

An unexpected error occurred. Please try again later.
On Order:: 1.014

Expected 6/1/2026

1.500

Expected 8/3/2026
Factory Lead Time:: 14

Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	3,90 €	3,90 €
	3,43 €	34,30 €
	3,23 €	64,60 €
	2,77 €	166,20 €
	2,70 €	2.700,00 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	TE Connectivity
Product Category:	General Purpose Relays
RoHS:
Product:	Power Relays
Type:	Standard
Coil Voltage:	5 VDC
Relay Contact Form:	2 Form C (DPDT-NO, NC)
Contact Current Rating:	8 A
Contact Termination:	Solder Pin
Mounting Style:	Through Hole
Switching Voltage:	400 VAC
Coil Type:	Non-Latching
Coil Resistance:	62 Ohms
Contact Material:	Silver Nickel (AgNi)
Series:	RT2
Length:	29 mm
Width:	12.7 mm
Height:	15.7 mm
Packaging:	Bulk
Brand:	TE Connectivity / Schrack
Maximum Switching Current:	15 A
Power Consumption:	400 mW
Product Type:	General Purpose Relays
Factory Pack Quantity:	20
Subcategory:	Relays
Part # Aliases:	1393243-1
Unit Weight:	9 g

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Compliance Codes

TARIC:: 8536490099
CNHTS:: 8536411090
CAHTS:: 8536410011
USHTS:: 8536410020
JPHTS:: 853641000
KRHTS:: 8536410000
BRHTS:: 85364100
ECCN:: EAR99

Origin Classifications

Country of Origin:: Austria
Assembly Country of Origin:: Not available
Country of Diffusion:: Not available

The country is subject to change at the time of shipment.

RT2 General Purpose Power PCB Relays

TE Connectivity's (TE) Schrack RT2 General Purpose Power PCB Relays feature 2 pole 8A relays with two contact arrangements: 2 Form C and 2 Form A. The relays provide a DC or AC coil and a 5kV/10mm coil-contact reinforced insulation. The RT2 series is available in THT and THR versions, and the THR version is reflow solderable. The PCB relays operate up to a +85°C ambient temperature and are approved according to IEC 60335-1. The TE Schrack RT2 General Purpose Power PCB Relays are ideal for various power applications, including boiler controls, timers, garage door controls, point-of-sale (POS) automation, and interface modules.

Relay Solutions

TE Connectivity's (TE) broad range of relays and contactors serve a variety of applications. The TE product line includes leading brands such as AGASTAT, AXICOM, CII, KILOVAC, OEG, P&B, PRODUCTS UNLIMITED, and SCHRACK. Switching capabilities range from dry circuit to 1600A, up to 70kV, and as high as 6GHz. Electromechanical, solid-state, and hybrid types range from SMT PC board-mount devices to large panel-mount units. TE's line of relays features expansive sets of options for enclosures, terminations, inputs, contact arrangements, and ratings. High-performance types are specifically designed to operate in rigorous environments (shock, vibration, temperature, altitude) such as those encountered in military and aerospace applications.
