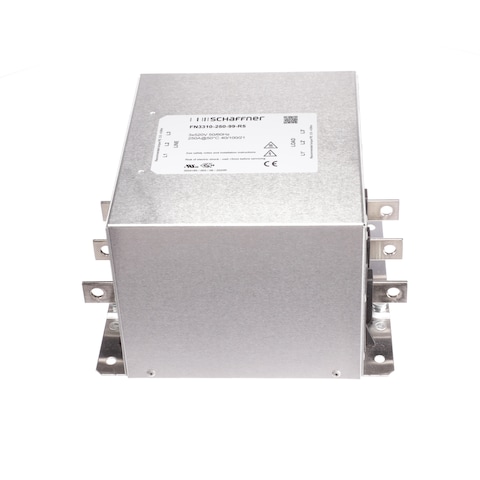

FN3310-250-99-R5

Name: TE Connectivity FN3310-250-99-R5
Brand: TE Connectivity / Schaffner
SKU: 631-FN3310-250-99-R5
Price: 495.67 EUR
Availability: OutOfStock

Images are for reference only
See Product Specifications

Mouser No:

631-FN3310-250-99-R5

Mfr. No:

FN3310-250-99-R5

Mfr.:

TE Connectivity / Schaffner

Description:

Power Line Filters 250A 100kVA 3x520VAC w/o Cy cap AC filte

Datasheet:

FN3310-250-99-R5 Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about TE Connectivity / Schaffner FN3310-250-99-R5

Availability

Stock:: Non-Stocked

An unexpected error occurred. Please try again later.
Factory Lead Time:: 22 Weeks Estimated factory production time.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

This Product Ships FREE

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	495,67 €	495,67 €
	465,93 €	4.659,30 €
	451,19 €	11.279,75 €
50	Quote

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	TE Connectivity
Product Category:	Power Line Filters
RoHS:
Filter Type:	3-Phase EMI/EMC Filter
Voltage Rating:	520 VAC
Current Rating:	250 A
Mounting Style:	Chassis Mount
Termination Style:	Busbar
Leakage Current:	0 A
Series:	FN3310
Operating Frequency:	0 Hz to 60 Hz
Brand:	TE Connectivity / Schaffner
Compliance:	UL; CSA; IEC/EN
Height:	140 mm
Length:	235 mm
Maximum Operating Temperature:	+ 100 C
Minimum Operating Temperature:	- 40 C
Product Type:	Power Line Filters
Factory Pack Quantity:	1
Subcategory:	Power Condition
Width:	195 mm
Part # Aliases:	815019-SF
Unit Weight:	2,300 kg

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

FN3310-250-99-R5 Datasheet (PDF)

Test/Quality Data

Safety and Instruction Manual (PDF)

CAHTS:: 8548000000
USHTS:: 8548000000
JPHTS:: 854800000
ECCN:: EAR99

FN3311/FN3310 Power Line AC EMC/EMI Filters

TE Connectivity / Schaffner FN3311 and FN3310 Power Line AC Electromagnetic Current/Electromagnetic Interference (EMC/EMI) Filters are compact, dedicated three-phase filters for photovoltaic (PV) inverter topologies. The FN3311 and FN3310 are designed to be installed between the PV inverter and the power grid. These filters allow solar applications to meet required emission standards and help ensure reliable and fault-free operation of the entire PV system. FN3311 and FN3310 are designed for use in power line-connected converter and inverter applications from 250A to 2300A. The filters can also be used in general-purpose motor drive applications.
