ESTA002NN00310001000

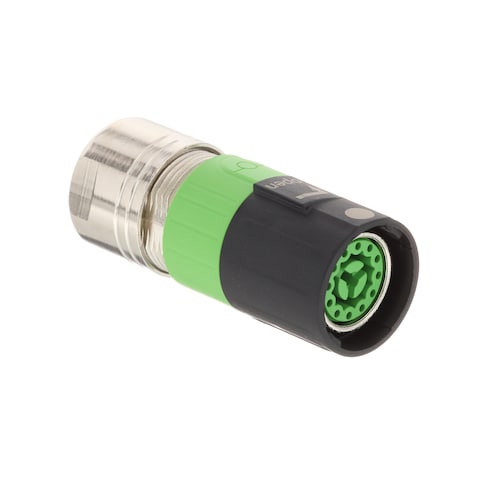

Name: TE Connectivity ESTA002NN00310001000
Brand: TE Connectivity / Intercontec
SKU: 571-ESTA002NN0031000
Price: 17.56 EUR
Availability: OutOfStock

Images are for reference only
See Product Specifications

Mouser No:

571-ESTA002NN0031000

Mfr. No:

ESTA002NN00310001000

Mfr.:

TE Connectivity / Intercontec

Description:

Circular Metric Connectors 615 Plug

Lifecycle:

Factory Special Order:

Obtain a quote to verify the current price, lead-time and ordering requirements of the manufacturer.

Datasheet:

ESTA002NN00310001000 Datasheet

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

Availability

Stock:: Non-Stocked

An unexpected error occurred. Please try again later.
Factory Lead Time:: 30 Weeks Estimated factory production time.

Long lead time reported on this product.

Enter Quantity:

Minimum: 150 Multiples: 30

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

This Product Ships FREE

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	17,56 €	2.634,00 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	TE Connectivity
Product Category:	Circular Metric Connectors
RoHS:
Product Type:	Circular Metric Connectors
Number of Contacts:	12 Contact
Thread Size:	M15
Termination Style:	Crimp
Current Rating:	5 A
Voltage Rating:	63 VAC, 63 VDC
IP Rating:	IP67
Body Style:	Straight
Brand:	TE Connectivity / Intercontec
Contact Gender:	Without Socket Contacts
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	DE
Diameter:	18.6 mm
Gender:	Female
Housing Material:	Zinc
Length:	42.7 mm
Locking Mechanism:	Bayonet Locking
Mounting Style:	Field Attachable-Installable
Product:	Connectors
Shell Style:	Receptacle
Shielding:	Shielded
Factory Pack Quantity:	30
Subcategory:	Circular Connectors
Type:	Straight
Part # Aliases:	ESA002N00310001000
Unit Weight:	29 g

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

ESTA002NN00310001000 Datasheet

RoHS Certificate (PDF)

TARIC:: 8536699099
CNHTS:: 8538900000
CAHTS:: 8536690040
USHTS:: 8536694030
JPHTS:: 853669000
KRHTS:: 8536699000
BRHTS:: 85366990
ECCN:: EAR99

615 / 915 Connectors

TE Connectivity's (TE) Intercontec 615 / 915 Connectors are signal and power connectors designed for a wide variety of applications, including drive systems, robotics, mechanical engineering, automation mechatronics, medical/chemical engineering, aerospace, and more. TE Intercontec 615 Signal Connector series offers 5A maximum power, 63V voltage, and 12 or 15 pins. TE Intercontec 915 Power Connector series provides 14A maximum power, 630V voltage, and 9 or 15 pins.

Industrial Machine Solutions

TE Connectivity's (TE) Industrial Machine Solutions offer reliable solutions for safer, smarter, productive, and more connected machinery. The product offering meets the needs for integration of data connectivity, miniaturized components, product quality, and reliability. These solutions offer IP-rated protective sealing, miniaturization, ease of installation, and ergonomic designs for safety. TE Industrial Machine Solutions meet the challenges engineers are facing when designing for smarter, more connected machinery.

Connectors

TE Connectivity's Intercontec Connectors offer a large variety of solutions that make connecting easy. These connectors consist of only a few single parts with a modular architecture that makes them highly compatible and usable in many different combinations. The connector assembly is possible without any tools due to the crown clamp that allows the shielding mesh to remain uncut. Multiple codings prevent faulty mating of connectors when wiring complex equipment. TE's Intercontec Connectors follow sophisticated engineering principles, ensuring an easy and efficient assembly process.
