HDB36-24-31SE-059

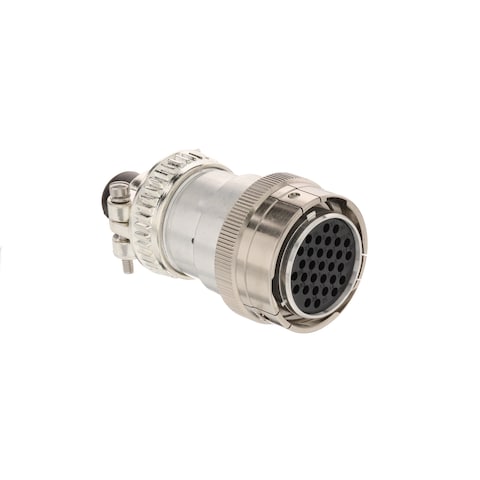

Name: TE Connectivity HDB36-24-31SE-059
Brand: TE Connectivity / DEUTSCH
SKU: 571-HDB36-24-31SE059
Price: 128.17 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

571-HDB36-24-31SE059

Mfr. No:

HDB36-24-31SE-059

Mfr.:

TE Connectivity / DEUTSCH

Description:

Automotive Connectors BR AWY PL ASM

Datasheet:

HDB36-24-31SE-059 Datasheet

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about TE Connectivity / DEUTSCH HDB36-24-31SE-059

In Stock: 62

Stock:: 62 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 13 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

This Product Ships FREE

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	128,17 €	128,17 €
	111,46 €	1.114,60 €
	56,97 €	5.697,00 €
250	Quote

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	TE Connectivity
Product Category:	Automotive Connectors
RoHS:
REACH - SVHC:
Product:	Connectors
Number of Positions:	31 Position
Gender:	Plug (Male)
Mounting Style:	Cable Mount / Free Hanging
Termination Style:	Crimp
Wire Gauge Min:	20 AWG
Wire Gauge Max:	14 AWG
Color:	Natural
Series:	HD30
Application:	Wire to Wire
Brand:	TE Connectivity / DEUTSCH
Contact Gender:	Without Socket Contacts
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	MX
Current Rating:	13 A
Ingress Protection:	IP67
Locking Mechanism:	Integrated in Housing
Material:	Aluminum
Mating Part Number:	HD34-24-31S
Maximum Operating Temperature:	+ 125 C
Minimum Operating Temperature:	- 55 C
Mounting Angle:	Straight
Product Type:	Automotive Connectors
Factory Pack Quantity:	1
Subcategory:	Automotive Connectors
Tradename:	HD
Type:	Breakaway
Voltage Rating:	250 VAC
Wire Gauge Range:	14 AWG to 20 AWG
Part # Aliases:	ZPF000000000131134 6-1899773-1
Unit Weight:	143,153 g

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

HDB36-24-31SE-059 Datasheet

PCN

Product Catalogs

Terminals and Connectors (PDF)

RoHS Certificate (PDF)

TARIC:: 8538909999
CNHTS:: 8538900000
CAHTS:: 8538909090
USHTS:: 8538908180
JPHTS:: 853890000
BRHTS:: 85389090
ECCN:: EAR99

HD30 Connectors

TE Connectivity's (TE) / DEUTSCH HD30 series connectors are constructed from a metal shell developed to meet the needs of heavy-duty equipment and transportation industries. These TE DEUTSCH connectors offer a rating immersion of IP68 and an operating temperature range of -55°C to +125°C. Additional HD30 features include quick connect/disconnect bayonet coupling, single-hole bulkhead mounting, silicone seals, and a rear insertion/rear removal contact system.
