HD36-18-14SN-059

Name: TE Connectivity HD36-18-14SN-059
Brand: TE Connectivity / DEUTSCH
SKU: 571-HD36-18-14SN-059
Price: 32.34 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

571-HD36-18-14SN-059

Mfr. No:

HD36-18-14SN-059

Mfr.:

TE Connectivity / DEUTSCH

Description:

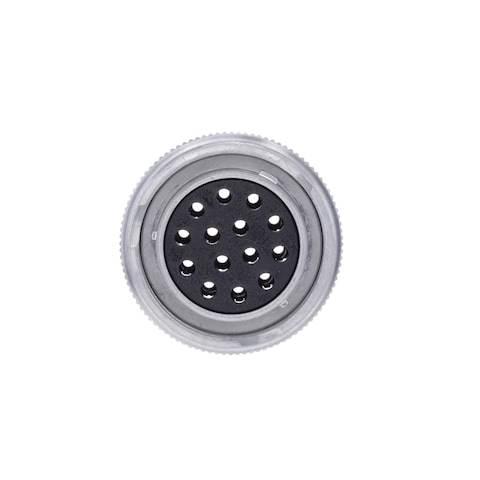

Automotive Connectors PLUG CONNECTOR SHELL SZ 18

Datasheet:

HD36-18-14SN-059 Datasheet

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about TE Connectivity / DEUTSCH HD36-18-14SN-059

In Stock: 33

Stock:: 33

Can Dispatch Immediately

An unexpected error occurred. Please try again later.
On Order:: 1.100

Expected 5/4/2026
Factory Lead Time:: 13

Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	32,34 €	32,34 €
	29,03 €	290,30 €
	27,22 €	680,50 €
	26,25 €	1.312,50 €
	25,51 €	2.551,00 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	TE Connectivity
Product Category:	Automotive Connectors
RoHS:
Product:	Housings
Number of Positions:	14 Position
Gender:	Plug (Male)
Mounting Style:	Cable Mount / Free Hanging
Termination Style:	Crimp
Wire Gauge Min:	20 AWG
Wire Gauge Max:	14 AWG
Color:	Natural
Series:	HD30
Packaging:	Bulk
Application:	Wire to Wire
Brand:	TE Connectivity / DEUTSCH
Contact Gender:	Without Socket Contacts
Current Rating:	13 A
Dimensions:	42.97 mm x 42.97 mm x 77.7 mm
Height:	42.97 mm
Housing Material:	Aluminium
Ingress Protection:	IP67
Length:	77.7 mm
Locking Mechanism:	Integrated in Housing
Material:	Aluminum
Maximum Operating Temperature:	+ 125 C
Minimum Operating Temperature:	- 55 C
Mounting Angle:	Straight
Product Type:	Automotive Connectors
Factory Pack Quantity:	1
Subcategory:	Automotive Connectors
Tradename:	HD
Voltage Rating:	250 V
Width:	42.97 mm
Wire Gauge Range:	14 AWG to 20 AWG
Part # Aliases:	7-1899770-9 HD36-18-14SN-059-RU ZPF000000000130787
Unit Weight:	408,240 g
