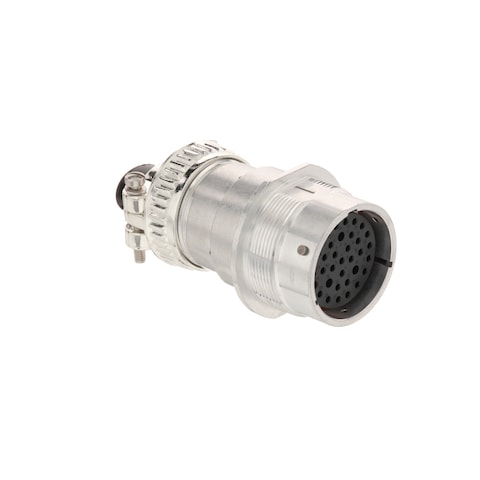

HD34-24-35SN-059

Name: TE Connectivity HD34-24-35SN-059
Brand: TE Connectivity / DEUTSCH
SKU: 571-HD34-24-35SN-059
Price: 59.69 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

571-HD34-24-35SN-059

Mfr. No:

HD34-24-35SN-059

Mfr.:

TE Connectivity / DEUTSCH

Description:

Automotive Connectors REC,35P,AL,N, CBLCLMPBT,DRAIN,16/20,S,MC

Datasheet:

HD34-24-35SN-059 Datasheet

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about TE Connectivity / DEUTSCH HD34-24-35SN-059

In Stock: 36

Stock:: 36 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 13 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

This Product Ships FREE

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	59,69 €	59,69 €
	43,68 €	436,80 €
	43,61 €	4.361,00 €
	35,14 €	8.785,00 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	TE Connectivity
Product Category:	Automotive Connectors
RoHS:
REACH - SVHC:
Product:	Housings
Number of Positions:	35 Position
Gender:	Receptacle (Female)
Mounting Style:	Panel Mount
Termination Style:	Crimp
Wire Gauge Min:	22 AWG
Wire Gauge Max:	14 AWG
Color:	Silver
Series:	HD30
Brand:	TE Connectivity / DEUTSCH
Contact Gender:	Without Socket Contacts
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	MX
Current Rating:	7.5 A, 13 A
Dimensions:	50.8 mm x 47.53 mm x 84.28 mm
Height:	47.53 mm
Housing Material:	Aluminium
Ingress Protection:	IP67
Length:	84.28 mm
Material:	Aluminum
Mating Part Number:	HD36-24-XXXX
Maximum Operating Temperature:	+ 125 C
Minimum Operating Temperature:	- 55 C
Mounting Angle:	Straight
Product Type:	Automotive Connectors
Factory Pack Quantity:	1
Subcategory:	Automotive Connectors
Tradename:	HD
Voltage Rating:	250 V
Width:	50.8 mm
Wire Gauge Range:	22 AWG to 14 AWG
Unit Weight:	144,518 g

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

HD34-24-35SN-059 Datasheet

PCN

Product Catalogs

Terminals and Connectors (PDF)

RoHS Certificate (PDF)

TARIC:: 8538909999
CNHTS:: 8538900000
CAHTS:: 8538909090
USHTS:: 8538908180
JPHTS:: 853890000
BRHTS:: 85389090
ECCN:: EAR99

HD30 Connectors

TE Connectivity's (TE) / DEUTSCH HD30 series connectors are constructed from a metal shell developed to meet the needs of heavy-duty equipment and transportation industries. These TE DEUTSCH connectors offer a rating immersion of IP68 and an operating temperature range of -55°C to +125°C. Additional HD30 features include quick connect/disconnect bayonet coupling, single-hole bulkhead mounting, silicone seals, and a rear insertion/rear removal contact system.
