HD34-24-33PN-059

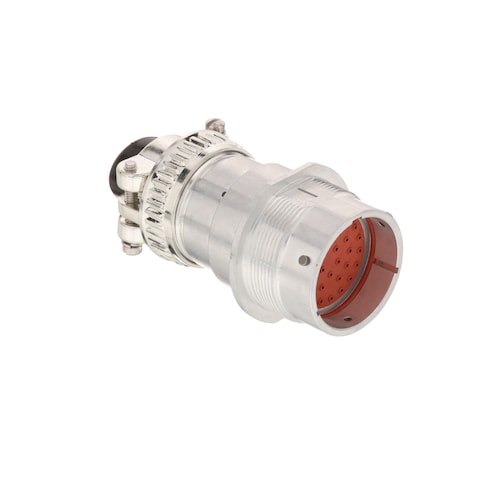

Name: TE Connectivity HD34-24-33PN-059
Brand: TE Connectivity / DEUTSCH
SKU: 571-HD34-24-33PN-059
Price: 38.58 EUR
Availability: OutOfStock

Images are for reference only
See Product Specifications

Mouser No:

571-HD34-24-33PN-059

Mfr. No:

HD34-24-33PN-059

Mfr.:

TE Connectivity / DEUTSCH

Description:

Automotive Connectors REC,33P,AL,N, CBL CLMP BT, DRAIN,20,P,MC

Datasheet:

HD34-24-33PN-059 Datasheet

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about TE Connectivity / DEUTSCH HD34-24-33PN-059

Availability

Stock:: Non-Stocked

An unexpected error occurred. Please try again later.
Factory Lead Time:: 13 Weeks Estimated factory production time.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	38,58 €	38,58 €
	32,78 €	327,80 €
	30,74 €	768,50 €
	29,77 €	1.488,50 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	TE Connectivity
Product Category:	Automotive Connectors
RoHS:
Product:	Connectors
Number of Positions:	33 Position
Gender:	Receptacle (Female)
Mounting Style:	Cable Mount / Free Hanging
Termination Style:	Crimp
Wire Gauge Min:	22 AWG
Wire Gauge Max:	16 AWG
Series:	HD30
Brand:	TE Connectivity / DEUTSCH
Contact Gender:	Without Pin Contacts
Current Rating:	7.5 A
Dimensions:	50.8 mm x 47.53 mm x 84.28 mm
Height:	47.53 mm
Housing Material:	Aluminium
Ingress Protection:	IP67
Length:	84.28 mm
Material:	Aluminum
Mating Part Number:	HD36-24-XXXX
Maximum Operating Temperature:	+ 125 C
Minimum Operating Temperature:	- 55 C
Mounting Angle:	Straight
Product Type:	Automotive Connectors
Factory Pack Quantity:	1
Subcategory:	Automotive Connectors
Tradename:	HD
Voltage Rating:	250 V
Width:	50.8 mm
Wire Gauge Range:	22 AWG to 16 AWG
Unit Weight:	141 g

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

HD34-24-33PN-059 Datasheet

PCN

Product Catalogs

Terminals and Connectors (PDF)

RoHS Certificate (PDF)

TARIC:: 8538909999
CNHTS:: 8538900000
CAHTS:: 8538909090
USHTS:: 8538908180
JPHTS:: 853890000
BRHTS:: 85389090
ECCN:: EAR99

HD30 Connectors

TE Connectivity's (TE) / DEUTSCH HD30 series connectors are constructed from a metal shell developed to meet the needs of heavy-duty equipment and transportation industries. These TE DEUTSCH connectors offer a rating immersion of IP68 and an operating temperature range of -55°C to +125°C. Additional HD30 features include quick connect/disconnect bayonet coupling, single-hole bulkhead mounting, silicone seals, and a rear insertion/rear removal contact system.
