HD34-24-23PE-059

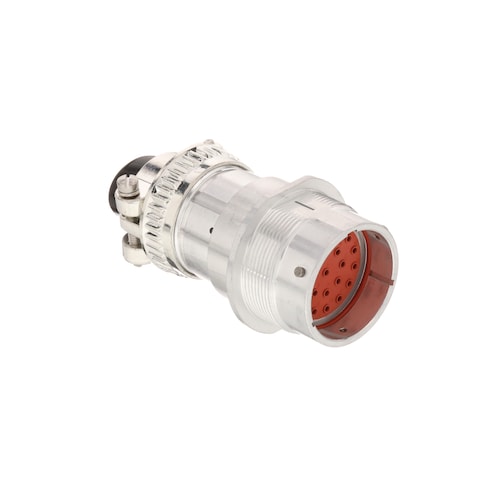

Name: TE Connectivity HD34-24-23PE-059
Brand: TE Connectivity / DEUTSCH
SKU: 571-HD34-24-23PE-059
Price: 51.13 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

571-HD34-24-23PE-059

Mfr. No:

HD34-24-23PE-059

Mfr.:

TE Connectivity / DEUTSCH

Description:

Automotive Connectors RECP ASM

Datasheet:

HD34-24-23PE-059 Datasheet

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about TE Connectivity / DEUTSCH HD34-24-23PE-059

In Stock: 12

Stock:: 12

Can Dispatch Immediately

An unexpected error occurred. Please try again later.
On Order:: 9

Expected 2/23/2026
Factory Lead Time:: 13

Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

This Product Ships FREE

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	51,13 €	51,13 €
	44,17 €	441,70 €
	41,41 €	1.035,25 €
	41,25 €	2.062,50 €
500	Quote

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	TE Connectivity
Product Category:	Automotive Connectors
RoHS:
Product:	Housings
Number of Positions:	23 Position
Gender:	Receptacle (Female)
Mounting Style:	Cable Mount / Free Hanging
Termination Style:	Crimp
Wire Gauge Min:	20 AWG
Wire Gauge Max:	14 AWG
Color:	Silver
Series:	HD30
Application:	Wire to Panel
Brand:	TE Connectivity / DEUTSCH
Contact Gender:	Without Pin Contacts
Contact Type:	Pin
Current Rating:	13 A
Dimensions:	50.8 mm x 47.53 mm x 84.28 mm
Height:	47.53 mm
Housing Material:	Aluminum
Ingress Protection:	IP67
Insulation:	Insulated
Length:	84.28 mm
Locking Mechanism:	Integrated in Housing
Material:	Aluminum
Mating Part Number:	HD36-24-XXXX
Maximum Operating Temperature:	+ 125 C
Minimum Operating Temperature:	- 55 C
Mounting Angle:	Straight
Product Type:	Automotive Connectors
Factory Pack Quantity:	1
Subcategory:	Automotive Connectors
Voltage Rating:	250 VAC/DC
Width:	50.8 mm
Wire Gauge Range:	14 AWG to 20 AWG
Unit Weight:	139,134 g

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

HD34-24-23PE-059 Datasheet

PCN

Product Catalogs

Terminals and Connectors (PDF)

RoHS Certificate (PDF)

TARIC:: 8538909999
CNHTS:: 8538900000
CAHTS:: 8538909090
USHTS:: 8538908180
JPHTS:: 853890000
BRHTS:: 85389090
ECCN:: EAR99

HD30 Connectors

TE Connectivity's (TE) / DEUTSCH HD30 series connectors are constructed from a metal shell developed to meet the needs of heavy-duty equipment and transportation industries. These TE DEUTSCH connectors offer a rating immersion of IP68 and an operating temperature range of -55°C to +125°C. Additional HD30 features include quick connect/disconnect bayonet coupling, single-hole bulkhead mounting, silicone seals, and a rear insertion/rear removal contact system.

HD Harsh Environment Connectors

TE Connectivity's (TE) DEUTSCH HD harsh environment connectors are a rugged and reliable connector system that performs in harsh environments. TE's HD10 series is a dependable solution used to eliminate problems like assembly and maintenance time and is primarily used for diagnostic connectors. The HD30 and HDP20 series connectors are heavy-duty, environmentally sealed, multi-pin circular connectors designed for the truck, bus, and off-highway industry. Available in metal or thermoplastic housings, HD connectors offer multiple pin configurations that accept contact sizes 4 through 20.

HD Harsh Environment Connectors

TE Connectivity / DEUTSCH HD connectors are an environmentally sealed, thermoplastic, and cylindrical connector series. The HD series is heavily used for diagnostic connectors, eliminates problems associated with assembly and maintenance time, and is designed for long service life.
