HD34-24-21PN-059

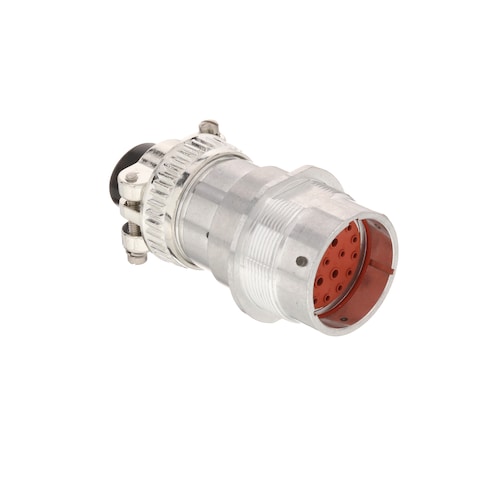

Name: TE Connectivity HD34-24-21PN-059
Brand: TE Connectivity / DEUTSCH
SKU: 571-HD34-24-21PN-059
Price: 47.74 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

571-HD34-24-21PN-059

Mfr. No:

HD34-24-21PN-059

Mfr.:

TE Connectivity / DEUTSCH

Description:

Automotive Connectors RECP ASM

Datasheet:

HD34-24-21PN-059 Datasheet

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about TE Connectivity / DEUTSCH HD34-24-21PN-059

In Stock: 67

Stock:: 67 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 13 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	47,74 €	47,74 €
	40,57 €	405,70 €
	38,04 €	951,00 €
	37,59 €	1.879,50 €
500	Quote

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	TE Connectivity
Product Category:	Automotive Connectors
RoHS:
REACH - SVHC:
Product:	Housings
Number of Positions:	21 Position
Gender:	Receptacle (Female)
Mounting Style:	Panel Mount
Termination Style:	Crimp
Wire Gauge Min:	20 AWG
Wire Gauge Max:	10 AWG
Series:	HD30
Brand:	TE Connectivity / DEUTSCH
Contact Gender:	Without Pin Contacts
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	MX
Current Rating:	13 A, 25 A
Dimensions:	50.8 mm x 47.53 mm x 41.83 mm
Height:	47.53 mm
Housing Material:	Aluminium
Ingress Protection:	IP67
Length:	41.83 mm
Material:	Aluminum
Mating Part Number:	HD36-24-XXXX
Maximum Operating Temperature:	+ 125 C
Minimum Operating Temperature:	- 55 C
Mounting Angle:	Straight
Product Type:	Automotive Connectors
Factory Pack Quantity:	1
Subcategory:	Automotive Connectors
Tradename:	HD
Voltage Rating:	250 V
Width:	50.8 mm
Wire Gauge Range:	10 AWG to 20 AWG
Unit Weight:	138,164 g
