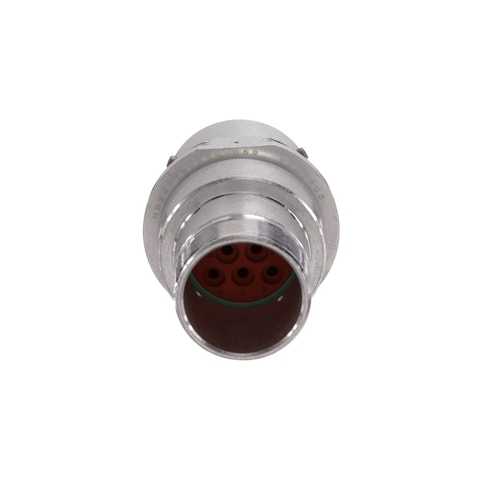

HD34-18-8SN-059

Name: TE Connectivity HD34-18-8SN-059
Brand: TE Connectivity / DEUTSCH
SKU: 571-HD34-18-8SN-059
Price: 32.28 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

571-HD34-18-8SN-059

Mfr. No:

HD34-18-8SN-059

Mfr.:

TE Connectivity / DEUTSCH

Description:

Automotive Connectors REC,8P,AL,N, CBL CLMP BT, DRAIN, 12,S,MC

Datasheet:

HD34-18-8SN-059 Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about TE Connectivity / DEUTSCH HD34-18-8SN-059

In Stock: 95

Stock:: 95 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 13 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	32,28 €	32,28 €
	27,62 €	276,20 €
	25,41 €	1.270,50 €
	23,48 €	2.348,00 €
	22,46 €	5.615,00 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	TE Connectivity
Product Category:	Automotive Connectors
RoHS:
REACH - SVHC:
Product:	Housings
Number of Positions:	8 Position
Gender:	Receptacle (Female)
Mounting Style:	Panel Mount
Termination Style:	Crimp
Wire Gauge Min:	14 AWG
Wire Gauge Max:	10 AWG
Series:	HD30
Brand:	TE Connectivity / DEUTSCH
Contact Gender:	Without Socket Contacts
Current Rating:	25 A
Dimensions:	44.45 mm x 41.28 mm x 41.83 mm
Height:	41.28 mm
Housing Material:	Aluminium
Ingress Protection:	IP67
Length:	41.83 mm
Material:	Aluminum
Mating Part Number:	HD36-24-XXX
Maximum Operating Temperature:	+ 125 C
Minimum Operating Temperature:	- 55 C
Mounting Angle:	Straight
Product Type:	Automotive Connectors
Factory Pack Quantity:	1
Subcategory:	Automotive Connectors
Tradename:	HD
Type:	Receptacle
Voltage Rating:	250 V
Width:	44.45 mm
Wire Gauge Range:	10 AWG to 14 AWG
Unit Weight:	112,010 g

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

HD34-18-8SN-059 Datasheet (PDF)

PCN

Product Catalogs

Terminals and Connectors (PDF)

RoHS Certificate (PDF)

TARIC:: 8538909999
CNHTS:: 8538900000
CAHTS:: 8538909090
USHTS:: 8538908180
JPHTS:: 853890000
BRHTS:: 85389090
ECCN:: EAR99

HD30 Connectors

TE Connectivity's (TE) / DEUTSCH HD30 series connectors are constructed from a metal shell developed to meet the needs of heavy-duty equipment and transportation industries. These TE DEUTSCH connectors offer a rating immersion of IP68 and an operating temperature range of -55°C to +125°C. Additional HD30 features include quick connect/disconnect bayonet coupling, single-hole bulkhead mounting, silicone seals, and a rear insertion/rear removal contact system.
