DTM13-12PA-R020

Name: TE Connectivity DTM13-12PA-R020
Brand: TE Connectivity / DEUTSCH
SKU: 571-DTM13-12PA-R020
Price: 26.51 EUR
Availability: OutOfStock

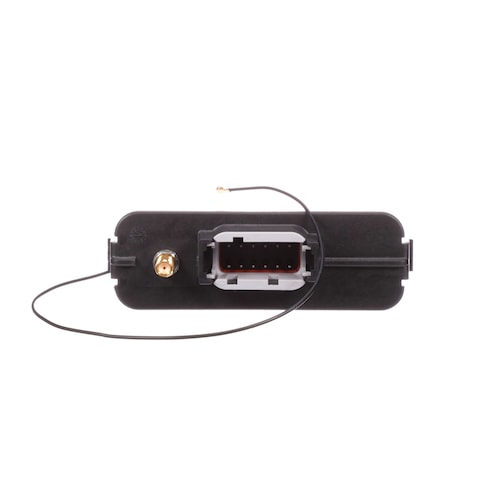

Images are for reference only
See Product Specifications

Mouser No:

571-DTM13-12PA-R020

Mfr. No:

DTM13-12PA-R020

Mfr.:

TE Connectivity / DEUTSCH

Description:

Headers & Wire Housings HDR,12P, BLK,RA, NI/CU,A

Datasheet:

DTM13-12PA-R020 Datasheet

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about TE Connectivity / DEUTSCH DTM13-12PA-R020

Availability

Stock:: 0

You can still purchase this product for backorder.

An unexpected error occurred. Please try again later.
On Order:: 126

Expected 3/4/2026
Factory Lead Time:: 13

Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	26,51 €	26,51 €
	26,32 €	263,20 €
	21,37 €	448,77 €
	19,78 €	830,76 €
	19,68 €	2.066,40 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	TE Connectivity
Product Category:	Headers & Wire Housings
RoHS:
REACH - SVHC:
Product:	Headers
Type:	Shrouded
Number of Positions:	12 Position
Pitch:	4.19 mm (0.165 in)
Number of Rows:	2 Row
Mounting Style:	Through Hole
Termination Style:	Solder Pin
Mounting Angle:	Right Angle
Contact Gender:	Pin (Male)
Contact Plating:	Nickel
Application:	Wire-to-Board
Minimum Operating Temperature:	- 55 C
Maximum Operating Temperature:	+ 125 C
Packaging:	Tray
Brand:	TE Connectivity / DEUTSCH
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	US
Product Type:	Headers & Wire Housings
Factory Pack Quantity:	21
Subcategory:	Headers & Wire Housings
Part # Aliases:	2333581-1

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

DTM13-12PA-R020 Datasheet

PCN

Product Change Notification 2026-2-3 (PDF)

This functionality requires JavaScript to be enabled.

TARIC:: 8536693000
CNHTS:: 8536901100
CAHTS:: 8536690020
USHTS:: 8536694040
JPHTS:: 853669000
KRHTS:: 8536691000
BRHTS:: 85366990
ECCN:: EAR99

DTM EEC Headers

TE Connectivity's (TE) DEUTSCH DTM EEC Headers offer a 250V_DC maximum voltage, 7.5A current rating, and an -55°C to +125°C operating temperature range. DTM headers are available with straight or right-angle pins, 12 or 48 cavities, and accommodate size 20 contacts. These headers feature rectangular, thermoplastic housing and an integrated latch for mating and in-line, flange, or PCB mounting. TE DTM EEC Headers are ideal for harsh environment applications.
