MGDU3-00003-P

Name: TE Connectivity MGDU3-00003-P
Brand: TE Connectivity / AMP
SKU: 279-MGDU3-00003-P
Price: 2.55 EUR
Availability: InStock

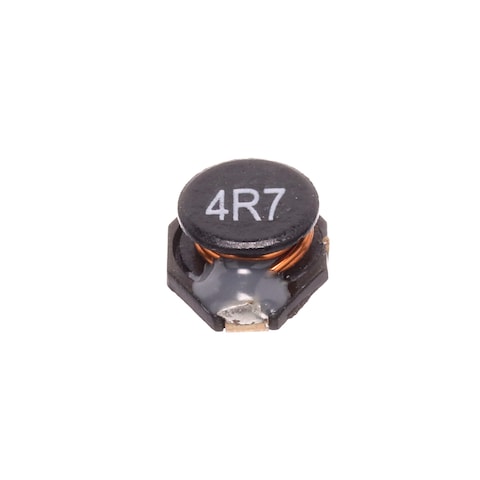

Images are for reference only
See Product Specifications

Mouser No:

279-MGDU3-00003-P

Mfr. No:

MGDU3-00003-P

Mfr.:

TE Connectivity / AMP

Description:

Common Mode Filter Chokes MGDU3-00003, IND DR8.38X4.2 SMD SS

Datasheet:

MGDU3-00003-P Datasheet

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

In Stock: 1.215

Stock:: 1.215 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 18 Weeks Estimated factory production time for quantities greater than shown.

Quantities greater than 1215 will be subject to minimum order requirements.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Packaging:

Full Reel (Order in multiples of 700)

Cut Tape

MouseReel™ (+5,00 €)

Pricing (EUR)

Qty.	Unit Price	Ext. Price
Cut Tape / MouseReel™ ^†
	2,55 €	2,55 €
	2,13 €	21,30 €
	1,95 €	48,75 €
	1,53 €	153,00 €
	1,49 €	372,50 €
Full Reel (Order in multiples of 700)
	1,39 €	973,00 €
	1,34 €	1.876,00 €
	1,29 €	2.709,00 €
	1,19 €	5.831,00 €

† A MouseReel™ fee of 5,00 € will be added and calculated in your basket. All MouseReel™ orders are non-cancellable and non-returnable. ↩

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	TE Connectivity
Product Category:	Common Mode Filter Chokes
RoHS:
Series:	MGD
Mounting Style:	PCB Mount
Termination Style:	SMD/SMT
Inductance:	4.7 uH
Tolerance:	20 %
Maximum DC Current:	4.8 A
Maximum DC Resistance:	18.4 mOhms
Minimum Operating Temperature:	- 40 C
Maximum Operating Temperature:	+ 85 C
Package/Case:	12.95 mm x 9.4 mm x 5.21 mm
Length:	12.95 mm
Width:	9.4 mm
Height:	5.21 mm
Packaging:	Reel
Packaging:	Cut Tape
Packaging:	MouseReel
Product:	Power Inductors
Type:	Wirewound
Application:	High Current
Brand:	TE Connectivity / AMP
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	TW
Product Type:	Common Mode Chokes
Shielding:	Unshielded
Factory Pack Quantity:	700
Subcategory:	Inductors, Chokes & Coils
Test Frequency:	100 kHz
Part # Aliases:	2-1879389-8
Unit Weight:	1,330 g

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

MGDU3-00003-P Datasheet

RoHS Certificate (PDF)

TARIC:: 8504500090
CNHTS:: 8504500000
CAHTS:: 8504500000
USHTS:: 8504508000
JPHTS:: 850450000
KRHTS:: 8504502090
MXHTS:: 8504509199
BRHTS:: 85045000
ECCN:: EAR99
