2-1703818-1

Name: TE Connectivity 2-1703818-1
Brand: TE Connectivity / AMP
SKU: 571-2-1703818-1
Price: 2.14 EUR
Availability: InStock

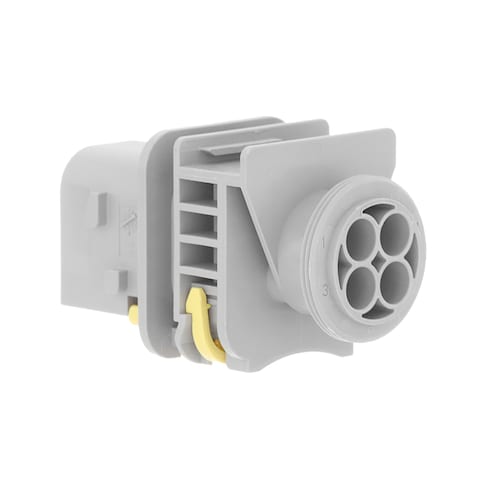

Images are for reference only
See Product Specifications

Mouser No:

571-2-1703818-1

Mfr. No:

2-1703818-1

Mfr.:

TE Connectivity / AMP

Description:

Automotive Connectors 4POS TAB 2.8X0.8 TAB HSG ASSY

Datasheet:

2-1703818-1 Datasheet

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about TE Connectivity / AMP 2-1703818-1

In Stock: 659

Stock:: 659

Can Dispatch Immediately

An unexpected error occurred. Please try again later.
On Order:: 760

Expected 1/18/2027
Factory Lead Time:: 36

Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	2,14 €	2,14 €
	1,87 €	18,70 €
	1,79 €	44,75 €
	1,67 €	167,00 €
	1,51 €	377,50 €
	1,39 €	528,20 €
	1,20 €	1.368,00 €
	1,11 €	2.952,60 €
	1,05 €	5.586,00 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	TE Connectivity
Product Category:	Automotive Connectors
RoHS:
Product:	Housings
Number of Positions:	4 Position
Pitch:	6 mm (0.236 in)
Gender:	Plug (Male)
Mounting Style:	Cable Mount / Free Hanging
Termination Style:	Crimp
Wire Gauge Max:	12 AWG
Color:	Gray
Series:	Heavy Duty Sealed Connector
Packaging:	Bulk
Application:	Signal, Wire-to-Wire
Brand:	TE Connectivity / AMP
Contact Gender:	Without Pin Contacts
Contact Type:	Pin
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	DE
Description/Function:	HDSCS, Housing for Male Terminals
Flammability Rating:	UL 94 V-0
Height:	27 mm
Housing Material:	Polybutylene Terephthalate (PBT)
Length:	29.1 mm
Locking Mechanism:	On the terminal
Maximum Operating Temperature:	+ 140 C
Minimum Operating Temperature:	- 40 C
Mounting Angle:	Right Angle
Number of Rows:	2 Row
Product Type:	Automotive Connectors
Row Spacing:	1.5 mm
Factory Pack Quantity:	380
Subcategory:	Automotive Connectors
Width:	48.1 mm
Unit Weight:	14,003 g

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

2-1703818-1 Datasheet

Images

PCN

RoHS Certificate (PDF)

TARIC:: 8547200090
CNHTS:: 8547200000
CAHTS:: 8536690090
USHTS:: 8538908180
JPHTS:: 853890000
KRHTS:: 8536699000
MXHTS:: 85366999
BRHTS:: 85366990
ECCN:: EAR99

Industrial & Commercial Transportation

TE Connectivity's (TE) comprehensive line of Industrial & Commercial Transportation products includes an unparalleled portfolio of rugged electrical connector products and sensor technologies. TE’s environmentally sealed connectors are designed to withstand the harshest environmental conditions and to keep vehicles moving forward. TE's portfolio of heavy-duty sensors helps vehicles operate safer, cleaner, and smarter. Applications range from heavy-duty trucks to construction equipment, mining vehicles to fire trucks, as well as boats, motorcycles, and tractors.

Heavy Duty Sealed Connector System

TE Connectivity's (TE) AMP Heavy Duty Sealed Connector System is targeted for the commercial vehicle industry and off-road applications. This wire-to-wire and wire-to-device connector system is designed to meet the rigorous demands of an industry that requires the highest performance standards. TE's Heavy Duty Sealed Connector System consists of five groups of connectors in different sizes, from 2- to 18-way connectors. TE's AMP Heavy Duty Sealed Connector System also has mixed combinations with signal and power lines available.
