1903414-2

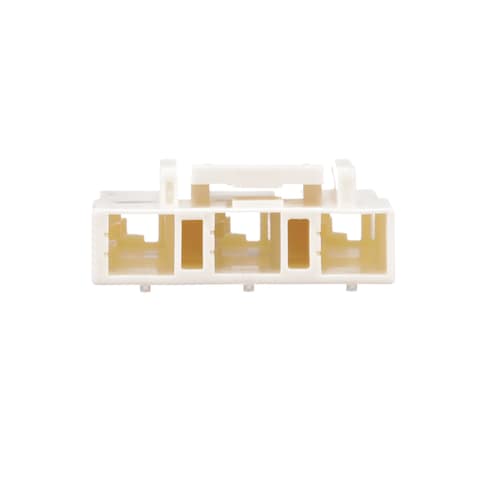

Name: TE Connectivity 1903414-2
Brand: TE Connectivity / AMP
SKU: 571-1903414-2
Price: 0.37 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

571-1903414-2

Mfr. No:

1903414-2

Mfr.:

TE Connectivity / AMP

Description:

Heavy Duty Power Connectors GHC 9.0 3POS PLUG HOUSING

Datasheet:

1903414-2 Datasheet

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about TE Connectivity / AMP 1903414-2

In Stock: 1.999

Stock:: 1.999 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 15 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	0,378 €	0,38 €
	0,303 €	3,03 €
	0,288 €	14,40 €
	0,273 €	27,30 €
	0,253 €	50,60 €
	0,244 €	122,00 €
	0,214 €	214,00 €
	0,194 €	582,00 €
	0,188 €	940,00 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	TE Connectivity
Product Category:	Heavy Duty Power Connectors
RoHS:
Product:	Housings
Current Rating:	20 A
Number of Positions:	3 Position
Termination Style:	Crimp
Voltage Rating:	600 V
Housing Material:	Nylon
Wire Gauge Min:	16 AWG
Wire Gauge Max:	12 AWG
Packaging:	Bulk
Tradename:	GRACE INERTIA
Brand:	TE Connectivity / AMP
Flammability Rating:	UL 94 V-0
Housing Colour:	Natural
Housing Gender:	Male
Mounting Angle:	Straight
Mounting Style:	Free Hanging
Number of Rows:	1 Row
Pitch:	9 mm
Product Type:	Heavy Duty Power Connectors
Factory Pack Quantity:	100
Subcategory:	Power Connectors
Unit Weight:	3,040 g

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

1903414-2 Datasheet

Images

3D Customer View Model

RoHS Certificate (PDF)

CNHTS:: 8538900000
CAHTS:: 8538909090
USHTS:: 8538908180
JPHTS:: 853890000
BRHTS:: 85389090
ECCN:: EAR99

GRACE INERTIA Connectors with TPA

TE Connectivity's (TE) GRACE INERTIA Connectors with TPA provide 9.0mm and 12.4mm centerline spacing. Terminal position assurance (TPA) helps ensure the contacts are properly seated in the housing while offering extra protection against contact backout. These wire-to-board connectors are rated 20A when used with 12AWG wire and rated 600V_AC. TE's GRACE INERTIA Connectors with TPA are UL recognized. Typical applications include household appliances, HVAC equipment, vending machines, and industrial equipment.

GRACE INERTIA Connectors

TE Connectivity's (TE) GRACE INERTIA Connectors feature an inertia locking mechanism to simultaneously complete the circuit and "lock" the connector. This connector system provides an ideal solution for eliminating human error during assembly. The GRACE INERTIA series provides ideal mating reliability, prevents mismatching, and eliminates the need for complicated inspection processes. The carefully engineered design assures proper insertion, which prevents header pin deformation. The ergonomic design allows for easy assembly, while the compact pitch reduces overall connector size. TE GRACE INERTIA Connectors utilize lanceless contacts to prevent snagging or entanglement while the dual-beam contact design offers good contact and durability.
