1586681-2

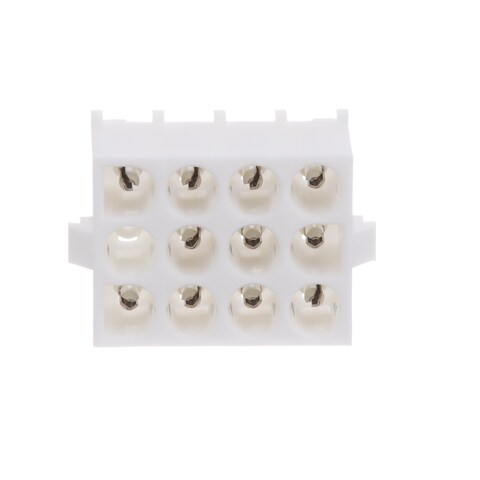

Name: TE Connectivity 1586681-2
Brand: TE Connectivity / AMP
SKU: 571-1586681-2
Price: 1.25 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

571-1586681-2

Mfr. No:

1586681-2

Mfr.:

TE Connectivity / AMP

Description:

Pin & Socket Connectors 12P UMNL PIN HDR ASSY 94VO SL

Datasheet:

1586681-2 Datasheet

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about TE Connectivity / AMP 1586681-2

In Stock: 243

Stock:: 243 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 13 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	1,25 €	1,25 €
	1,24 €	12,40 €
	0,912 €	22,80 €
	0,86 €	80,84 €
	0,798 €	450,07 €
	0,765 €	791,01 €
	0,757 €	1.921,27 €
	0,74 €	3.756,24 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	TE Connectivity
Product Category:	Pin & Socket Connectors
RoHS:
Product:	Headers
Number of Positions:	12 Position
Number of Rows:	3 Row
Contact Gender:	Pin (Male)
Pitch:	6.35 mm
Termination Style:	Through Hole
Mounting Style:	PCB
Housing Material:	Nylon
Contact Material:	Phosphor Bronze
Contact Plating:	Tin
Voltage Rating:	600 V
Current Rating:	12 A
Series:	Universal MATE-N-LOK
Packaging:	Bulk
Tradename:	MATE-N-LOK
Brand:	TE Connectivity / AMP
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	CN
Product Type:	Pin & Socket Connectors
Factory Pack Quantity:	94
Subcategory:	Pin & Socket Connectors
Unit Weight:	6,761 g

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

1586681-2 Datasheet

RoHS Certificate (PDF)

TARIC:: 8536693000
CNHTS:: 8538900000
CAHTS:: 8536690020
USHTS:: 8536694040
JPHTS:: 853669000
KRHTS:: 8536691000
MXHTS:: 85366999
BRHTS:: 85366990
ECCN:: EAR99

Universal MATE-N-LOK Pin & Socket Connectors

TE Connectivity's (TE) Universal MATE-N-LOK Pin and Socket Connectors offer a 600V_AC/DC voltage rating, 19A maximum current, and 6.35mm pitch design. These pin and socket connectors feature wire-to-wire, wire-to-panel, and wire-to-board configurations and 2 to 10 inline positions. TE Universal MATE-N-LOK Pin and Socket Connectors are ideal for HVAC systems, power supplies, fan modules, and lighting applications.
