1473416-2

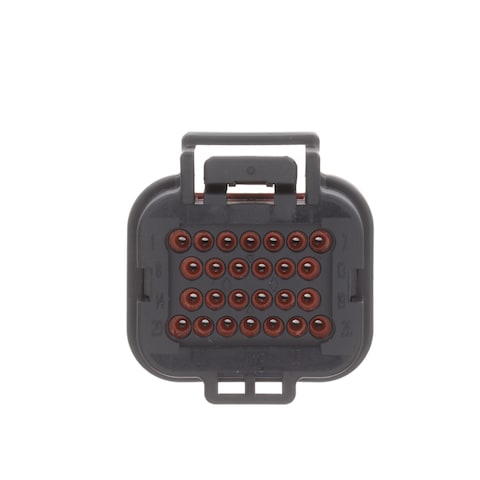

Name: TE Connectivity 1473416-2
Brand: TE Connectivity / AMP
SKU: 571-1473416-2
Price: 10.51 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

571-1473416-2

Mfr. No:

1473416-2

Mfr.:

TE Connectivity / AMP

Description:

Automotive Connectors SUPER SEAL 26 POS PLUG ASSY

Datasheet:

1473416-2 Datasheet

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about TE Connectivity / AMP 1473416-2

In Stock: 380

Stock:: 380 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 18 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	10,51 €	10,51 €
	8,51 €	85,10 €
	7,87 €	157,40 €
	7,86 €	786,00 €
	7,59 €	3.795,00 €
	7,35 €	7.350,00 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	TE Connectivity
Product Category:	Automotive Connectors
RoHS:
Product:	Housings
Number of Positions:	26 Position
Pitch:	3 mm (0.118 in)
Gender:	Plug (Male)
Mounting Style:	Cable Mount / Free Hanging
Termination Style:	Crimp
Color:	Black
Series:	Superseal 1.0
Packaging:	Tube
Application:	Wire to Board/Device
Brand:	TE Connectivity / AMP
Contact Gender:	Without Socket Contacts
Flammability Rating:	UL 94 V-2
Height:	34.55 mm
Housing Material:	Polybutylene Terephthalate (PBT)
Length:	32.15 mm
Locking Mechanism:	Integrated in Housing
Maximum Operating Temperature:	+ 125 C
Minimum Operating Temperature:	- 40 C
Mounting Angle:	Straight
Number of Rows:	4 Row
Product Type:	Automotive Connectors
Row Spacing:	4.24 mm
Factory Pack Quantity:	20
Subcategory:	Automotive Connectors
Tradename:	SUPERSEAL
Type:	Plug Housing
Voltage Rating:	250 VDC
Width:	32.2 mm
Unit Weight:	18,870 g

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

1473416-2 Datasheet

Images

PCN

RoHS Certificate (PDF)

TARIC:: 8538909999
CNHTS:: 8538900000
CAHTS:: 8538903900
USHTS:: 8538906000
JPHTS:: 853890000
MXHTS:: 8538900100
BRHTS:: 85389090
ECCN:: EAR99

SUPERSEAL Connector Systems

TE Connectivity's (TE) SUPERSEAL Connector Systems feature the SUPERSEAL 1.0 and SUPERSEAL 1.5 series. These connectors are ideal for ECU applications for automotive, truck, bus, and off-road vehicles, as well as anywhere sealing is required. TE's SUPERSEAL Connector Systems are rated IP67 and designed to perform in harsh conditions.
