1-968307-2

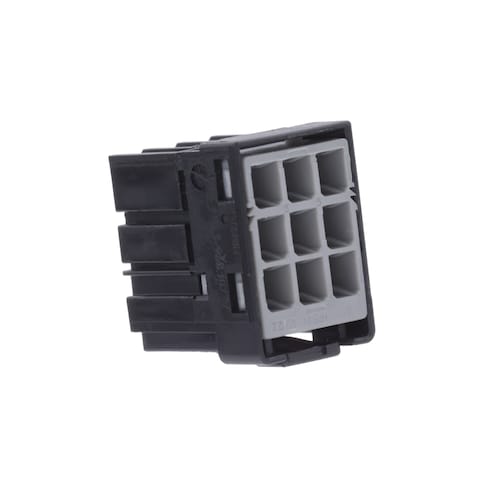

Name: TE Connectivity 1-968307-2
Brand: TE Connectivity / AMP
SKU: 571-1-968307-2
Price: 2.01 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

571-1-968307-2

Mfr. No:

1-968307-2

Mfr.:

TE Connectivity / AMP

Description:

Automotive Connectors JPT GEH KOMPL 9P

Datasheet:

1-968307-2 Datasheet

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about TE Connectivity / AMP 1-968307-2

In Stock: 1.957

Stock:: 1.957 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 8 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	2,01 €	2,01 €
	1,79 €	17,90 €
	1,62 €	40,50 €
	1,56 €	156,00 €
	1,51 €	377,50 €
	1,24 €	2.976,00 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	TE Connectivity
Product Category:	Automotive Connectors
RoHS:
Product:	Housings
Number of Positions:	9 Position
Pitch:	5 mm (0.197 in)
Gender:	Receptacle (Female)
Mounting Style:	Cable Mount / Free Hanging
Termination Style:	Crimp
Wire Gauge Max:	13 AWG
Series:	Junior Power Timer
Application:	Wire to Board/Device
Brand:	TE Connectivity / AMP
Contact Gender:	Without Socket Contacts
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	MX
Height:	18 mm
Housing Material:	Polybutylene Terephthalate (PBT)
Length:	25 mm
Locking Mechanism:	On the terminal
Maximum Operating Temperature:	+ 120 C
Minimum Operating Temperature:	- 40 C
Mounting Angle:	Straight
Number of Rows:	3 Row
Product Type:	Automotive Connectors
Row Spacing:	5.9 mm
Factory Pack Quantity:	1200
Subcategory:	Automotive Connectors
Tradename:	Timer
Width:	22 mm
Unit Weight:	5,435 g

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

1-968307-2 Datasheet

Images

PCN

RoHS Certificate (PDF)

TARIC:: 8538909999
CNHTS:: 8538900000
CAHTS:: 8536690020
USHTS:: 8538908180
JPHTS:: 853890000
KRHTS:: 8536691000
MXHTS:: 8538900100
BRHTS:: 85389090
ECCN:: EAR99

Industrial & Commercial Transportation

TE Connectivity's (TE) comprehensive line of Industrial & Commercial Transportation products includes an unparalleled portfolio of rugged electrical connector products and sensor technologies. TE’s environmentally sealed connectors are designed to withstand the harshest environmental conditions and to keep vehicles moving forward. TE's portfolio of heavy-duty sensors helps vehicles operate safer, cleaner, and smarter. Applications range from heavy-duty trucks to construction equipment, mining vehicles to fire trucks, as well as boats, motorcycles, and tractors.

Timer Interconnection System

TE Connectivity's (TE) Timer Interconnect System features contacts used extensively in the automotive industry. Each contact of this TE series consists of a flat receptacle, which mates with a flat tab. The receptacle has two respective four contact springs, which are independent of each other. Two-piece contacts with a steel top spring are predominantly. This two-piece contact design means that the electrical and mechanical properties are separated. One end of the contact body is either crimped to wire or soldered to a printed circuit board. The other end of the contact body mates with the matching tab.
