1-1586041-2

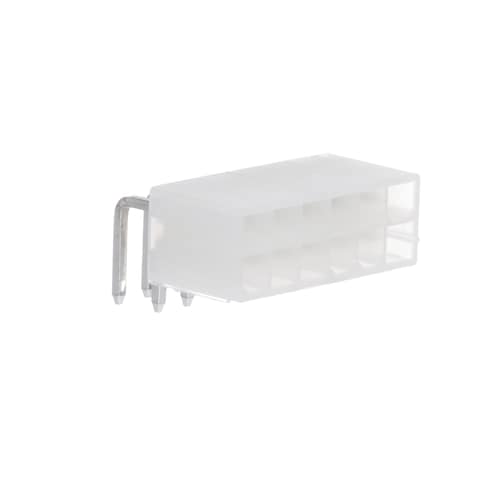

Name: TE Connectivity 1-1586041-2
Brand: TE Connectivity / AMP
SKU: 571-115860412
Price: 0.66 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

571-115860412

Mfr. No:

1-1586041-2

Mfr.:

TE Connectivity / AMP

Description:

Headers & Wire Housings RA HDR W/O PEGS 12P

Datasheet:

1-1586041-2 Datasheet

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about TE Connectivity / AMP 1-1586041-2

In Stock: 1.438

Stock:: 1.438 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 16 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	0,665 €	0,67 €
	0,648 €	1.652,40 €
	0,638 €	3.253,80 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	TE Connectivity
Product Category:	Headers & Wire Housings
RoHS:
Product:	Headers
Type:	Shrouded
Number of Positions:	12 Position
Pitch:	4.2 mm (0.165 in)
Number of Rows:	2 Row
Row Spacing:	4.2 mm (0.165 in)
Termination Style:	Solder Pin
Mounting Angle:	Right Angle
Contact Gender:	Pin (Male)
Contact Plating:	Tin
Series:	VAL-U-LOK
Tradename:	VAL-U-LOK
Application:	Wire-to-Board
Wire Gauge:	26 AWG to 16 AWG
Minimum Operating Temperature:	- 40 C
Maximum Operating Temperature:	+ 105 C
Brand:	TE Connectivity / AMP
Contact Material:	Brass
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	CN
Current Rating:	9 A
Flammability Rating:	UL 94 V-2
Housing Colour:	Natural
Housing Material:	Nylon
Insulation Resistance:	1 GOhms
Product Type:	Headers & Wire Housings
Factory Pack Quantity:	150
Subcategory:	Headers & Wire Housings
Voltage Rating:	600 V
Unit Weight:	43,100 g

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

1-1586041-2 Datasheet

Images

Models

1-1586041-2 Symbol & Footprint by SnapMagic

PCN

Product Change Notification 2024-08-12 (PDF)

RoHS Certificate (PDF)

TARIC:: 8536693000
CNHTS:: 8536901100
CAHTS:: 8536690020
USHTS:: 8536694040
JPHTS:: 853669000
KRHTS:: 8536691000
MXHTS:: 8536699999
BRHTS:: 85366990
ECCN:: EAR99

VAL-U-LOK Connectors

TE Connectivity's (TE) VAL-U-LOK Connectors offer wire-to-wire and wire-to-board connections with contacts on a .165in (4.20mm) centerline pitch as well as up to 9A current ratings per line and 600V_AC max. rating. TE VAL-U-LOK plug and receptacle housings allow wire-to-wire and wire-to-panel configurations and are available in 2 to 24 dual-row positions and 3 to 5 single-row position models. Header assemblies offer vertical and right-angle wire-to-board connections. The vertical headers are available with optional polarization pegs and drain holes and offer a blind-mate version while the right-angle headers offer optional screw-mount flanges.
