ZW-04-11-T-D-455-245

Name: Samtec ZW-04-11-T-D-455-245
Brand: Samtec
SKU: 200-ZW0411TD455245
Price: 0.8 EUR
Availability: InStock

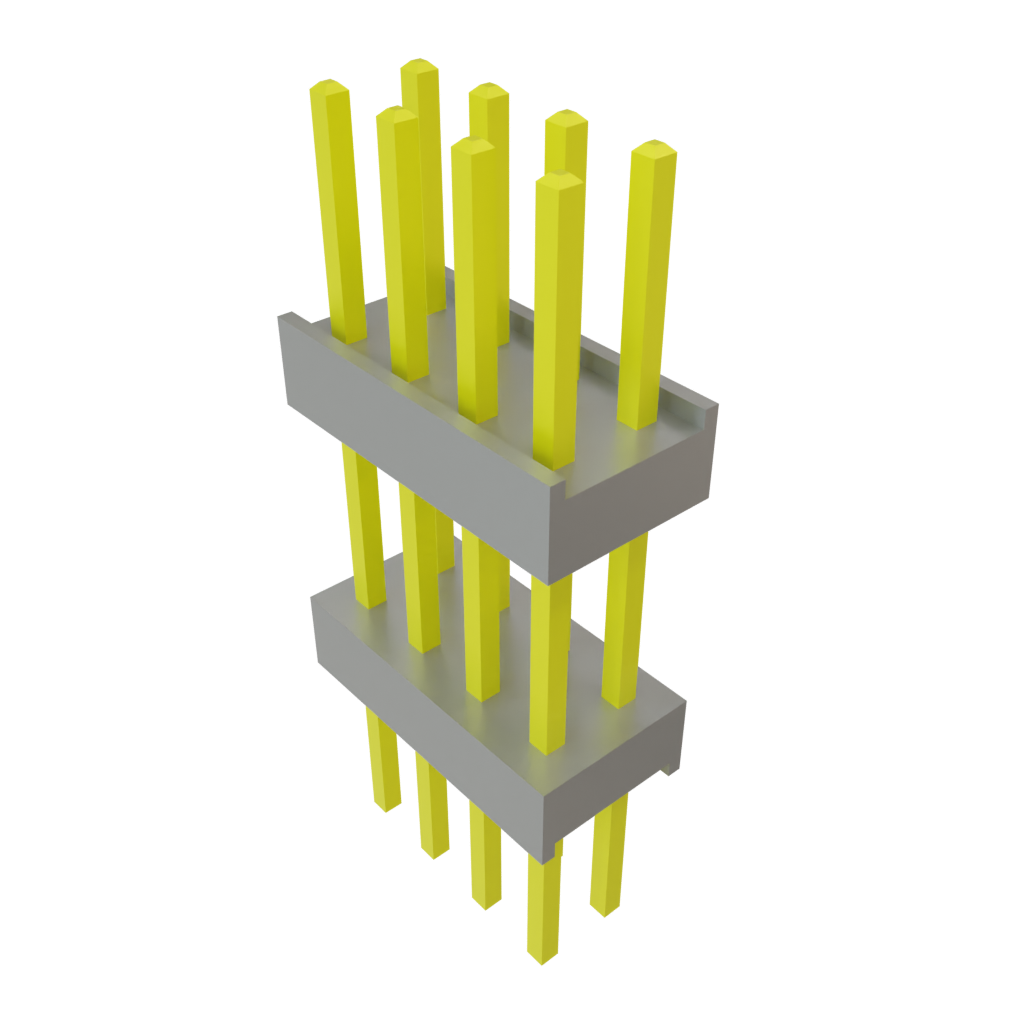

Images are for reference only
See Product Specifications

Mouser No:

200-ZW0411TD455245

Mfr. No:

ZW-04-11-T-D-455-245

Mfr.:

Samtec

Description:

Board to Board & Mezzanine Connectors Flexible Board Stacking Header

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

In Stock: 94

Stock:: 94 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 1 Week Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	0,808 €	0,81 €
	0,654 €	32,70 €
	0,533 €	53,30 €
	0,413 €	206,50 €
	0,391 €	391,00 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Samtec
Product Category:	Board to Board & Mezzanine Connectors
RoHS:
Product:	Headers
Number of Positions:	8 Position
Pitch:	2.54 mm (0.1 in)
Number of Rows:	2 Row
Termination Style:	Solder
Mounting Angle:	Vertical
Stack Height:	0.455 in
Minimum Operating Temperature:	- 55 C
Maximum Operating Temperature:	+ 105 C
Contact Plating:	Tin
Contact Material:	Phosphor Bronze
Housing Material:	Polyester
Series:	ZW
Packaging:	Bulk
Application:	Board-to-Board, Cable
Brand:	Samtec
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	US
Flammability Rating:	UL 94 V-0
Mounting Style:	Throuh Hole
Factory Pack Quantity:	1
Termination Post Length:	0.245 in
Tradename:	Flex Stack

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Images


Models

ZW-04-11-T-D-455-245 Symbol & Footprint by SnapMagic

Specification Sheets

Technical Resources

Dimensional Drawing, Footprint, and Part Number Configuration

TARIC:: 8536693000
CAHTS:: 8536690020
USHTS:: 8536694040
JPHTS:: 853669000
KRHTS:: 8536691000
MXHTS:: 8536699999
BRHTS:: 85366990
ECCN:: EAR99

Flexible Stacking Connectors

Samtec Flex Stacking Board Connectors feature a large variety of board-to-board connectors with design flexibility. These Samtec board-to-board connector systems are available in a variety of pitches, densities, stack heights, orientations, and other standard or modified options, making it easy to find the right connector for any application. Flex-Stack options include one-piece, low profile pass-through, elevated, hermaphroditic, shrouded, coplanar, parallel, and perpendicular. Post heights are adjustable in increments of 0.005” (0.13mm).
