ZF5S-10-01-T-WT-TR

Name: Samtec ZF5S-10-01-T-WT-TR
Brand: Samtec
SKU: 200-ZF5S1001TWTTR
Price: 1.99 EUR
Availability: InStock

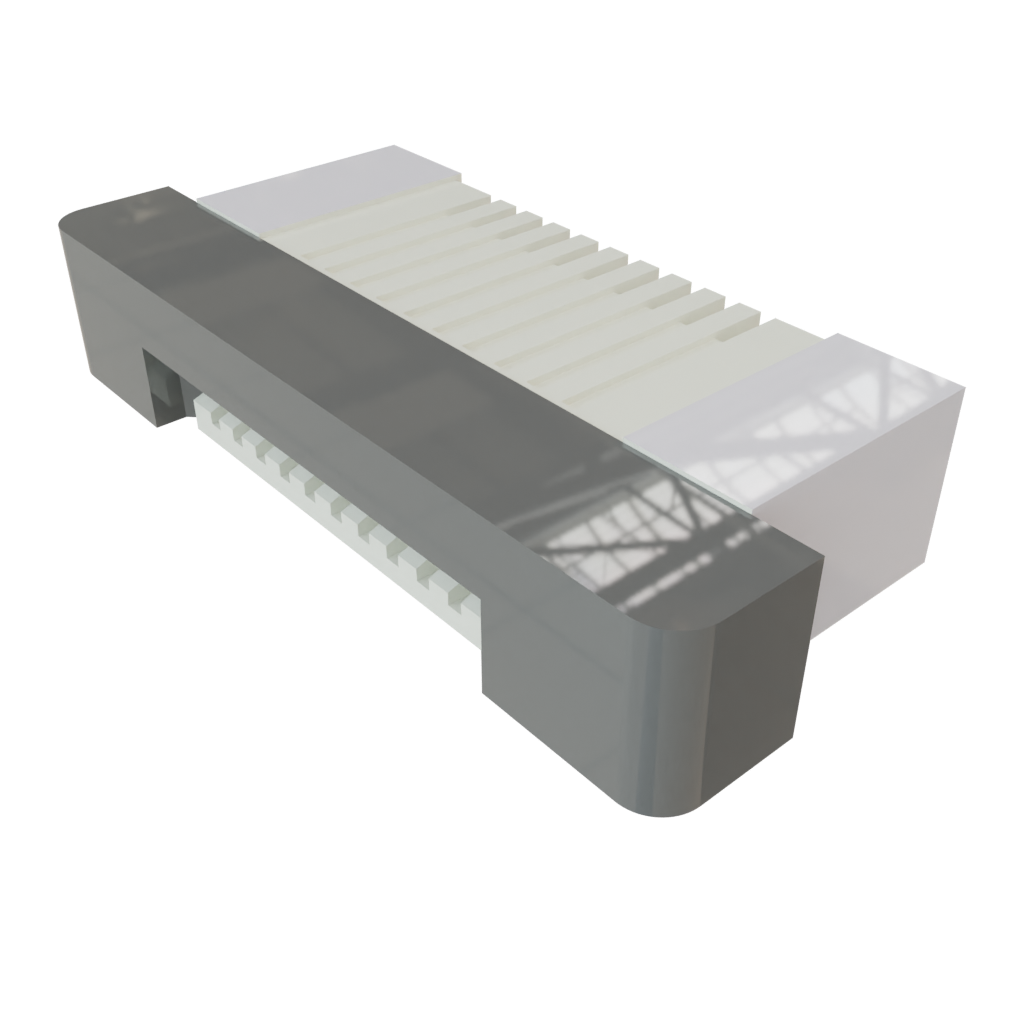

Images are for reference only
See Product Specifications

Mouser No:

200-ZF5S1001TWTTR

Mfr. No:

ZF5S-10-01-T-WT-TR

Mfr.:

Samtec

Description:

FFC & FPC Connectors Zero Insertion Force Connector for FFC

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

In Stock: 2.198

Stock:: 2.198 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 2 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Packaging:

Full Reel (Order in multiples of 1600)

Cut Tape

MouseReel™ (+5,00 €)

Pricing (EUR)

Qty.	Unit Price	Ext. Price
Cut Tape / MouseReel™ ^†
	1,99 €	1,99 €
	1,63 €	81,50 €
	1,38 €	138,00 €
	1,23 €	615,00 €
	0,946 €	946,00 €
Full Reel (Order in multiples of 1600)
	0,946 €	1.513,60 €
	0,919 €	4.411,20 €

† A MouseReel™ fee of 5,00 € will be added and calculated in your basket. All MouseReel™ orders are non-cancellable and non-returnable. ↩

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Samtec
Product Category:	FFC & FPC Connectors
RoHS:
Product:	Sockets
Number of Positions:	10 Position
Pitch:	0.5 mm
Termination Style:	SMD/SMT
Mounting Angle:	Horizontal
Contact Location:	Top Contact
Contact Plating:	Tin
Current Rating:	1.8 A
Minimum Operating Temperature:	- 55 C
Maximum Operating Temperature:	+ 105 C
Packaging:	Reel
Packaging:	Cut Tape
Packaging:	MouseReel
Actuation Type:	ZIF
Brand:	Samtec
Contact Material:	Phosphor Bronze
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	VN
Gender:	Female
Housing Colour:	Natural
Housing Material:	Liquid Crystal Polymer (LCP)
Mounting Style:	SMD/SMT
Product Type:	FFC & FPC Connectors
Factory Pack Quantity:	1600
Subcategory:	FFC & FPC Connectors
Unit Weight:	67 mg

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Images


Models

ZF5S-10-01-T-WT-TR Symbol & Footprint by SnapMagic

Specification Sheets

Technical Resources

Test Report (PDF)

TARIC:: 8536693000
CNHTS:: 8536901100
CAHTS:: 8536690020
USHTS:: 8536694040
JPHTS:: 853669000
KRHTS:: 8536691000
MXHTS:: 8536699999
BRHTS:: 85366990
ECCN:: EAR99
