UMPC-10-L-18-P-12.0

Name: Samtec UMPC-10-L-18-P-12.0
Brand: Samtec
SKU: 200-UMPC-10L18P12.0
Price: 15.73 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

200-UMPC-10L18P12.0

Mfr. No:

UMPC-10-L-18-P-12.0

Mfr.:

Samtec

Description:

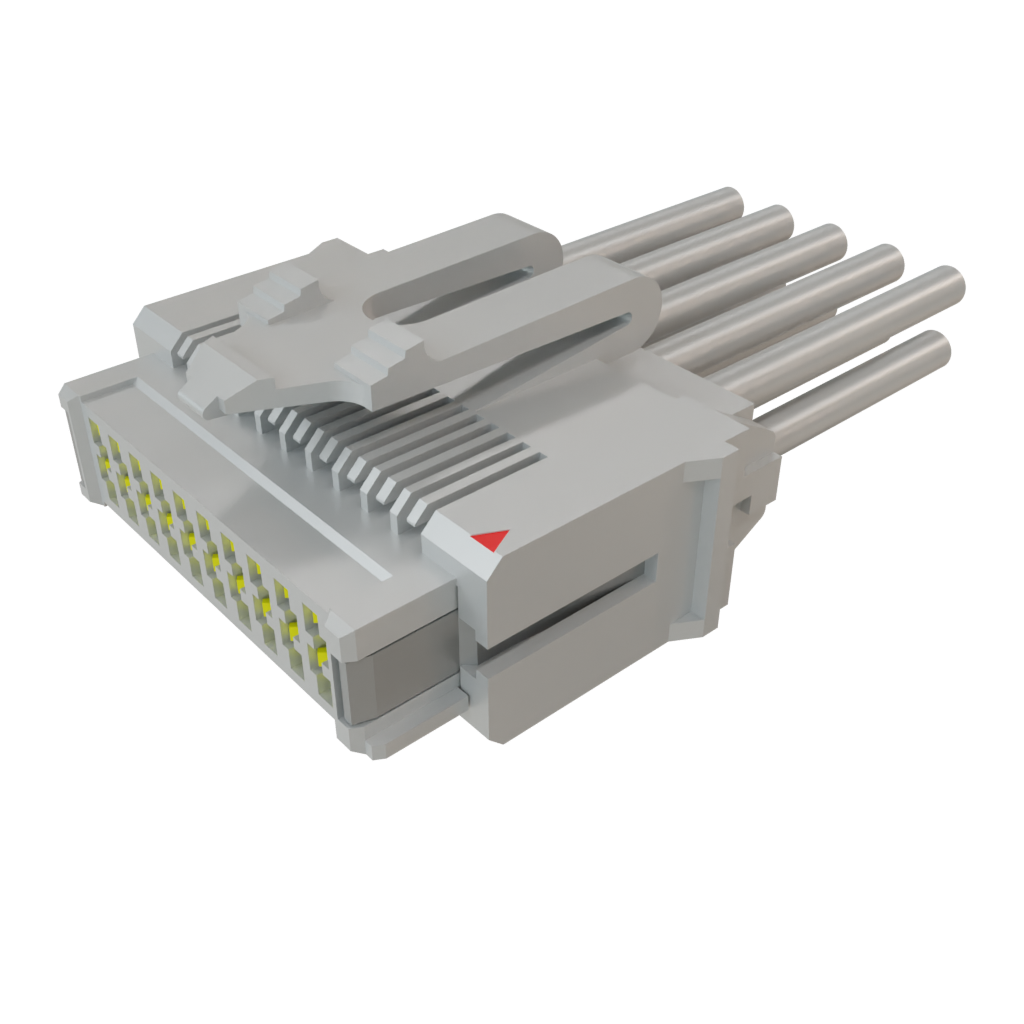

Rectangular Cable Assemblies 2.00 mm mPOWER Ultra Micro Power Discrete Wire Cable Assembly

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Samtec UMPC-10-L-18-P-12.0

In Stock: 5

Stock:: 5 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 2 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	15,73 €	15,73 €
	13,36 €	133,60 €
	12,52 €	313,00 €
	11,93 €	596,50 €
	11,36 €	1.136,00 €
	10,65 €	2.662,50 €
	10,15 €	5.075,00 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Samtec
Product Category:	Rectangular Cable Assemblies
RoHS:
Series:	UMPC
Product:	Discrete Wire Cable Assemblies
Type:	Ultra Micro Power Cable
Connector End A:	Socket
Connector End A Pin Count:	10 Position
Connector End B:	No Connector
Gender:	Female
Cable Length:	304.8 mm
Wire Gauge - AWG:	18 AWG
Jacket Colour:	Black
Packaging:	Bulk
Brand:	Samtec
Jacket Material:	Polyvinyl Chloride (PVC)
Pitch:	2 mm
Product Type:	Rectangular Cable Assemblies
Subcategory:	Cable Assemblies
Tradename:	mPower
Voltage Rating:	300 V

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Images


Specification Sheets

Technical Resources

Test Report (PDF)

CAHTS:: 8544420090
USHTS:: 8544429090
BRHTS:: 85444200
ECCN:: EAR99

mPower® Ultra Micro Power Connection System

Samtec mPower® Ultra Micro Power Connection System features micro 2mm-pitch 18A power blade interconnects designed for power only or for staging a combination power and signal / ground solution. This micro, high-power solution delivers design flexibility for power-only or power / signal applications. Thanks to the wide variety of stack heights, mPower can easily be added to new or existing architectures alongside one of Samtec's high-speed connector systems for a unique two-piece power and signal / ground solution. Samtec mPower Ultra Micro Power Connection System is a Severe Environment Test (SET) qualified product. SET is a Samtec initiative to test products beyond typical industry standards and specifications. These products undergo additional testing to ensure they are more than suitable for rugged / harsh environments such as military, space, automotive, industrial, and other extreme applications.

2mm mPOWER® Ultra Micro Wire Cable Assemblies

Samtec 2mm mPOWER® Ultra Micro Wire Cable Assemblies (UMPC) and Components (IMPC, IMPCC, CC489) are the ultimate micro, high-power solution with excellent design flexibility for power-only or power/signal applications. These assemblies are available in 2 to 10 positions with rugged plastic and metal latching options. The UMPC series mates to the terminal UMPT/UMPT-RA, while these power connectors operate up to 18A per blade and are RoHS compliant. mPOWER can be easily incorporated into new or existing architectures alongside one of Samtec's high-speed connector systems for a unique two-piece power and signal/ground solution. Samtec's high-speed connector systems include Edge Rate®, AcceleRate® HD, Q Strip®, Q2™, Q Rate®, LP Array™, SEARAY™, SEARAY 0.80mm, Tiger Eye™, and Ultra Micro Blade & Beam.
