TSM-118-02-L-SV-P-TR

Name: Samtec TSM-118-02-L-SV-P-TR
Brand: Samtec
SKU: 200-TSM11802LSVPTR
Price: 2.73 EUR
Availability: OutOfStock

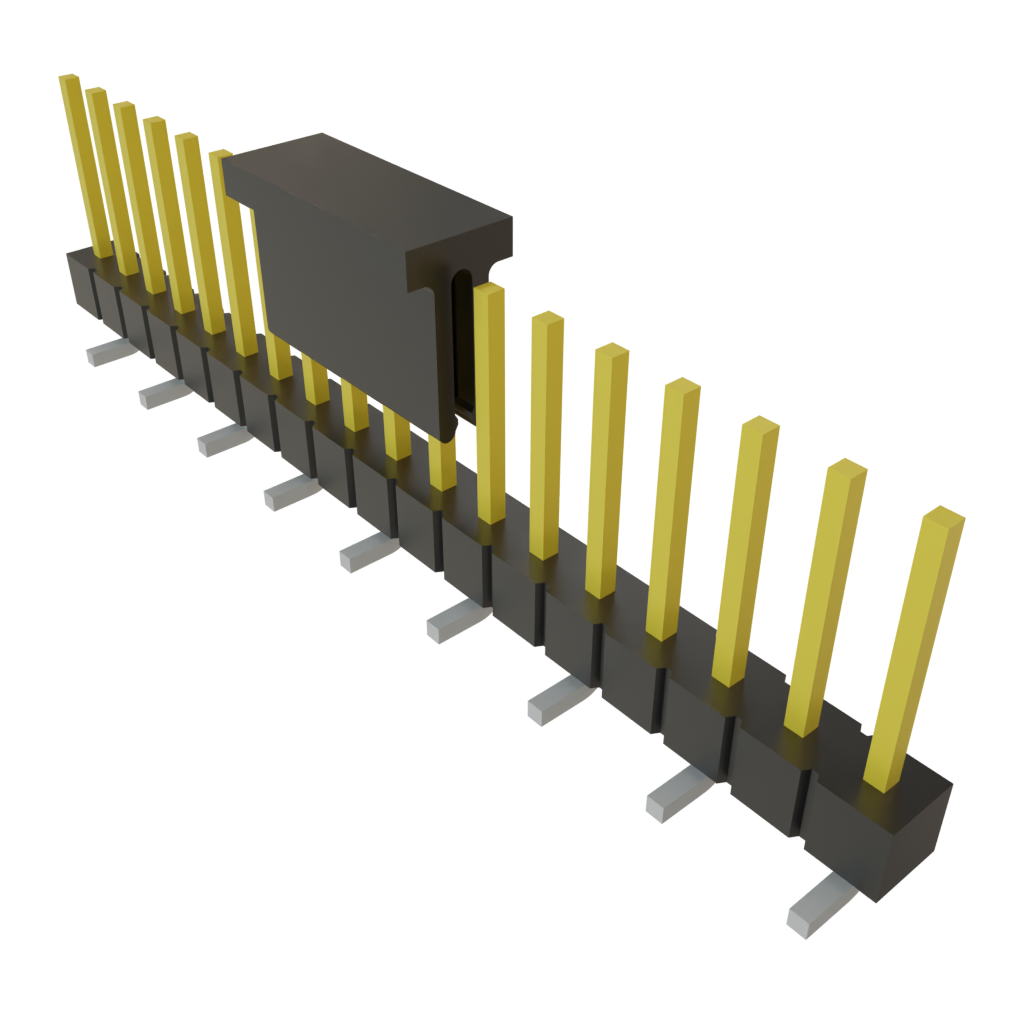

Images are for reference only
See Product Specifications

Mouser No:

200-TSM11802LSVPTR

Mfr. No:

TSM-118-02-L-SV-P-TR

Mfr.:

Samtec

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Qty.	Unit Price	Ext. Price
	2,73 €	2,73 €
	2,51 €	125,50 €
	2,22 €	222,00 €
Full Reel (Order in multiples of 175)
	2,22 €	388,50 €
	1,98 €	1.732,50 €
	1,95 €	3.753,75 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Samtec
Product Category:	Headers & Wire Housings
RoHS:
Product:	Headers
Type:	Pin Header
Number of Positions:	18 Position
Pitch:	2.54 mm (0.1 in)
Number of Rows:	1 Row
Mounting Style:	SMD/SMT
Termination Style:	Solder Pin
Mounting Angle:	Straight
Contact Gender:	Pin (Male)
Contact Plating:	Gold
Mating Post Length:	8.13 mm (0.32 in)
Minimum Operating Temperature:	- 55 C
Maximum Operating Temperature:	+ 125 C
Packaging:	Reel
Packaging:	Cut Tape
Brand:	Samtec
Contact Material:	Phosphor Bronze
Current Rating:	4.1 A to 5.4 A
Flammability Rating:	UL 94 V-0
Housing Colour:	Black
Housing Material:	Liquid Crystal Polymer (LCP)
Product Type:	Headers & Wire Housings
Factory Pack Quantity:	175
Subcategory:	Headers & Wire Housings
Voltage Rating:	495 VAC
