TSM-111-04-S-SH

Name: Samtec TSM-111-04-S-SH
Brand: Samtec
SKU: 200-TSM11104SSH
Price: 2.6 EUR
Availability: InStock

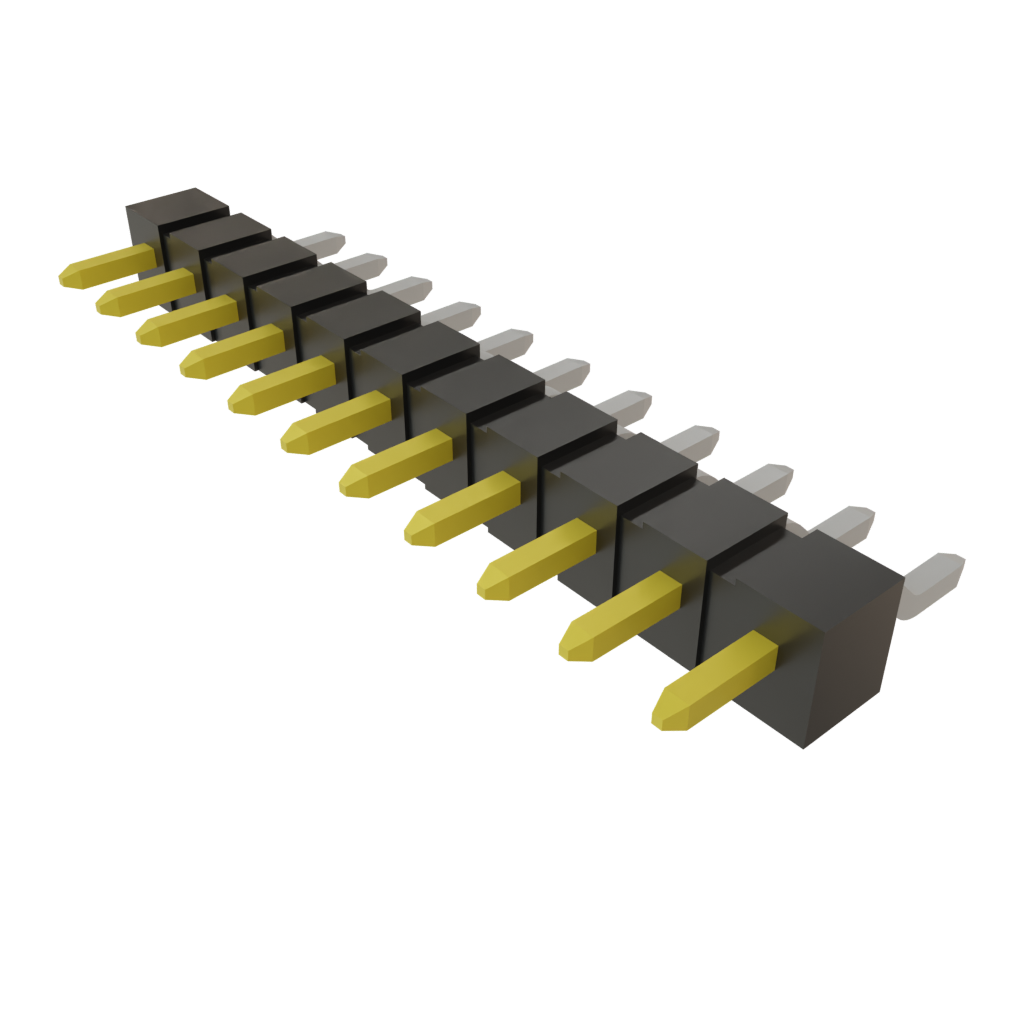

Images are for reference only
See Product Specifications

Mouser No:

200-TSM11104SSH

Mfr. No:

TSM-111-04-S-SH

Mfr.:

Samtec

Description:

Headers & Wire Housings .100 Surface Mount Terminal Strip

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Samtec TSM-111-04-S-SH

In Stock: 80

Stock:: 80 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 3 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	2,60 €	2,60 €
	2,39 €	143,40 €
	2,12 €	212,00 €
	1,89 €	945,00 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Samtec
Product Category:	Headers & Wire Housings
RoHS:
Mounting Style:	SMD/SMT
Minimum Operating Temperature:	- 55 C
Maximum Operating Temperature:	+ 125 C
Series:	TSM
Packaging:	Tube
Brand:	Samtec
Contact Gender:	Pin (Male)
Contact Material:	Phosphor Bronze
Contact Plating:	Gold
Current Rating:	4.1 A to 5.4 A
Flammability Rating:	UL 94 V-0
Housing Colour:	Black
Housing Material:	Liquid Crystal Polymer (LCP)
Mating Post Length:	3.05 mm (0.12 in)
Mounting Angle:	Horizontal
Number of Positions:	11 Position
Number of Rows:	1 Row
Pitch:	2.54 mm (0.1 in)
Product:	Headers
Product Type:	Headers & Wire Housings
Factory Pack Quantity:	20
Subcategory:	Headers & Wire Housings
Termination Style:	Solder Pin
Type:	Pin Header

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Images


Models

TSM-111-04-S-SH Symbol & Footprint by SnapMagic

Specification Sheets

Technical Resources

Test Report (PDF)

Compliance Codes

USHTS:: 8536694040
ECCN:: EAR99

Origin Classifications

Country of Origin:: United States
Assembly Country of Origin:: Not available
Country of Diffusion:: Not available

The country is subject to change at the time of shipment.

TSM .100" (2.54mm) SMT .025" (0.635 mm) Square Post Headers

Samtec TSM .100" (2.54mm) Surface Mount .025" (0.635 mm) Square Post Headers are board-to-board connectors featuring square post terminals in single, double, or triple-row options with straight, right-angle or mixed technology pins. The highly reliable, rugged headers are available in vertical and horizontal orientations which have passed 10-years in mixed flowing gas (MFG) environments. The Samtec TSM headers achieve high mating cycles of up to 2500. Popular mating connectors of the TSM series are the SSW, SSQ, SSM, BSW, ESW, ESQ, BCS, SLW, CES, and HLE series. Cable mates include the IDSS and IDSD series.
