TSM-103-02-L-DV-003-P-TR

Name: Samtec TSM-103-02-L-DV-003-P-TR
Brand: Samtec
SKU: 200-TSM1032LDV003PTR
Price: 1.45 EUR
Availability: OutOfStock

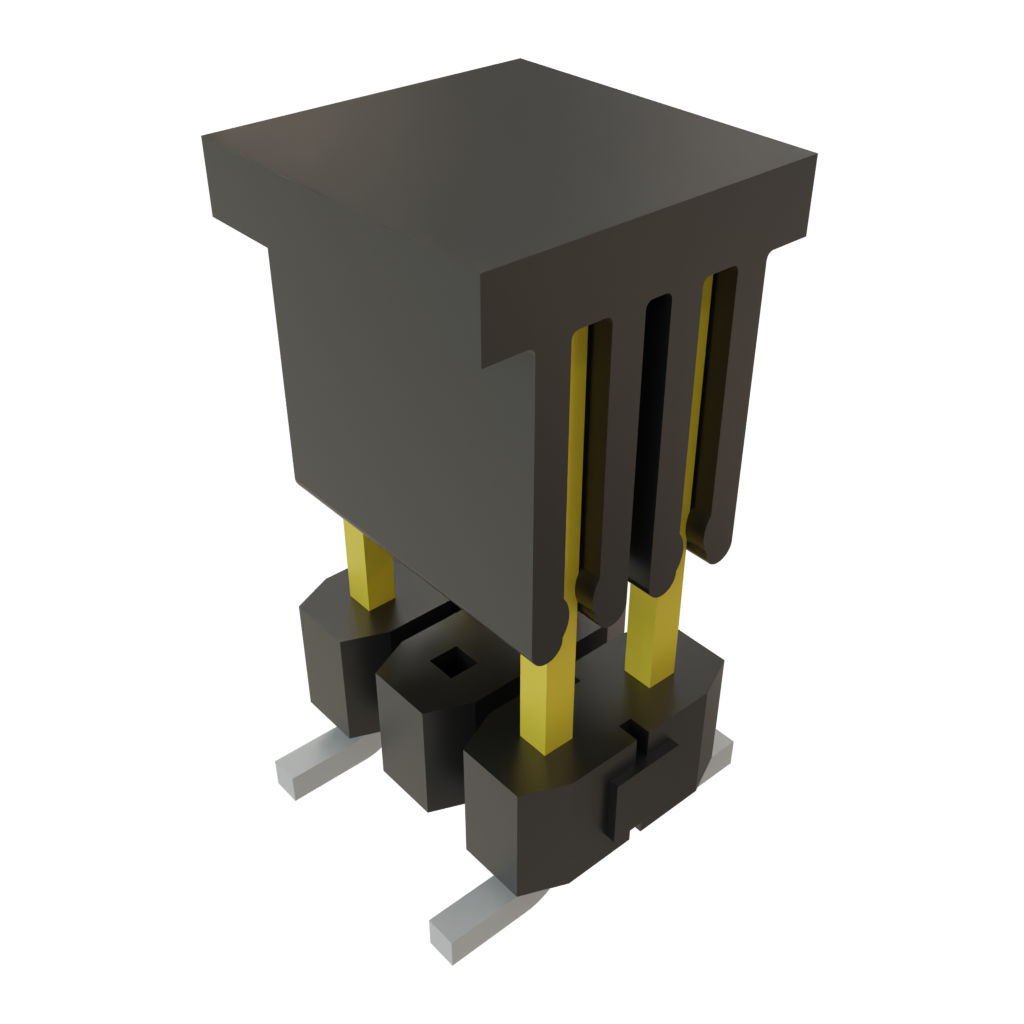

Images are for reference only
See Product Specifications

Mouser No:

200-TSM1032LDV003PTR

Mfr. No:

TSM-103-02-L-DV-003-P-TR

Mfr.:

Samtec

Description:

Headers & Wire Housings .100 Surface Mount Terminal Strip

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Samtec TSM-103-02-L-DV-003-P-TR

Availability

Stock:: Non-Stocked

An unexpected error occurred. Please try again later.
Factory Lead Time:: 12 Weeks Estimated factory production time.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	1,45 €	1,45 €
	1,22 €	61,00 €
	1,03 €	103,00 €
Full Reel (Order in multiples of 150)
	1,03 €	154,50 €
	0,857 €	771,30 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Samtec
Product Category:	Headers & Wire Housings
RoHS:
Product:	Headers
Type:	Pin Header
Number of Positions:	6 Position
Pitch:	2.54 mm (0.1 in)
Number of Rows:	2 Row
Mounting Style:	SMD/SMT
Termination Style:	Solder Pin
Mounting Angle:	Straight
Contact Gender:	Pin (Male)
Contact Plating:	Gold
Mating Post Length:	8.13 mm (0.32 in)
Series:	TSM
Minimum Operating Temperature:	- 55 C
Maximum Operating Temperature:	+ 125 C
Packaging:	Reel
Packaging:	Cut Tape
Brand:	Samtec
Contact Material:	Phosphor Bronze
Current Rating:	4.1 A to 5.4 A
Flammability Rating:	UL 94 V-0
Housing Colour:	Black
Housing Material:	Liquid Crystal Polymer (LCP)
Product Type:	Headers & Wire Housings
Factory Pack Quantity:	150
Subcategory:	Headers & Wire Housings
Voltage Rating:	495 VAC

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Technical Resources

Compliance Codes

CNHTS:: 8536690000
CAHTS:: 8536690020
USHTS:: 8536694040
JPHTS:: 853669000
MXHTS:: 85366999
BRHTS:: 85366990
ECCN:: EAR99

Origin Classifications

Country of Origin:: Malaysia
Assembly Country of Origin:: Not available
Country of Diffusion:: Not available

The country is subject to change at the time of shipment.

TSM .100" (2.54mm) SMT .025" (0.635 mm) Square Post Headers

Samtec TSM .100" (2.54mm) Surface Mount .025" (0.635 mm) Square Post Headers are board-to-board connectors featuring square post terminals in single, double, or triple-row options with straight, right-angle or mixed technology pins. The highly reliable, rugged headers are available in vertical and horizontal orientations which have passed 10-years in mixed flowing gas (MFG) environments. The Samtec TSM headers achieve high mating cycles of up to 2500. Popular mating connectors of the TSM series are the SSW, SSQ, SSM, BSW, ESW, ESQ, BCS, SLW, CES, and HLE series. Cable mates include the IDSS and IDSD series.
