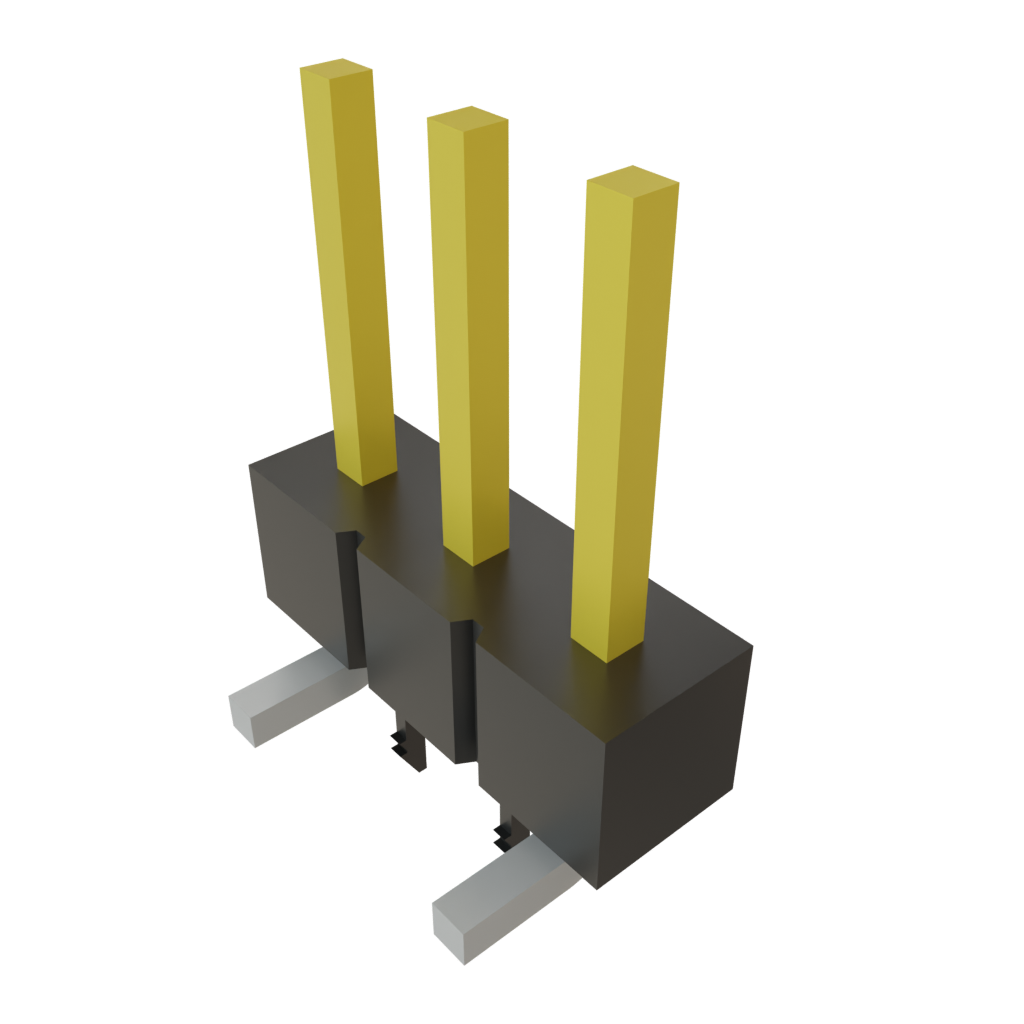

TSM-103-01-L-SV-LC

Name: Samtec TSM-103-01-L-SV-LC
Brand: Samtec
SKU: 200-TSM10301LSVLC
Price: 0.83 EUR
Availability: OutOfStock

Images are for reference only
See Product Specifications

Mouser No:

200-TSM10301LSVLC

Mfr. No:

TSM-103-01-L-SV-LC

Mfr.:

Samtec

Description:

Headers & Wire Housings .100 Surface Mount Terminal Strip
