TFML-110-02-L-D-LC-TR

Name: Samtec TFML-110-02-L-D-LC-TR
Brand: Samtec
SKU: 200-TFML11002LDLCTR
Price: 3.06 EUR
Availability: InStock

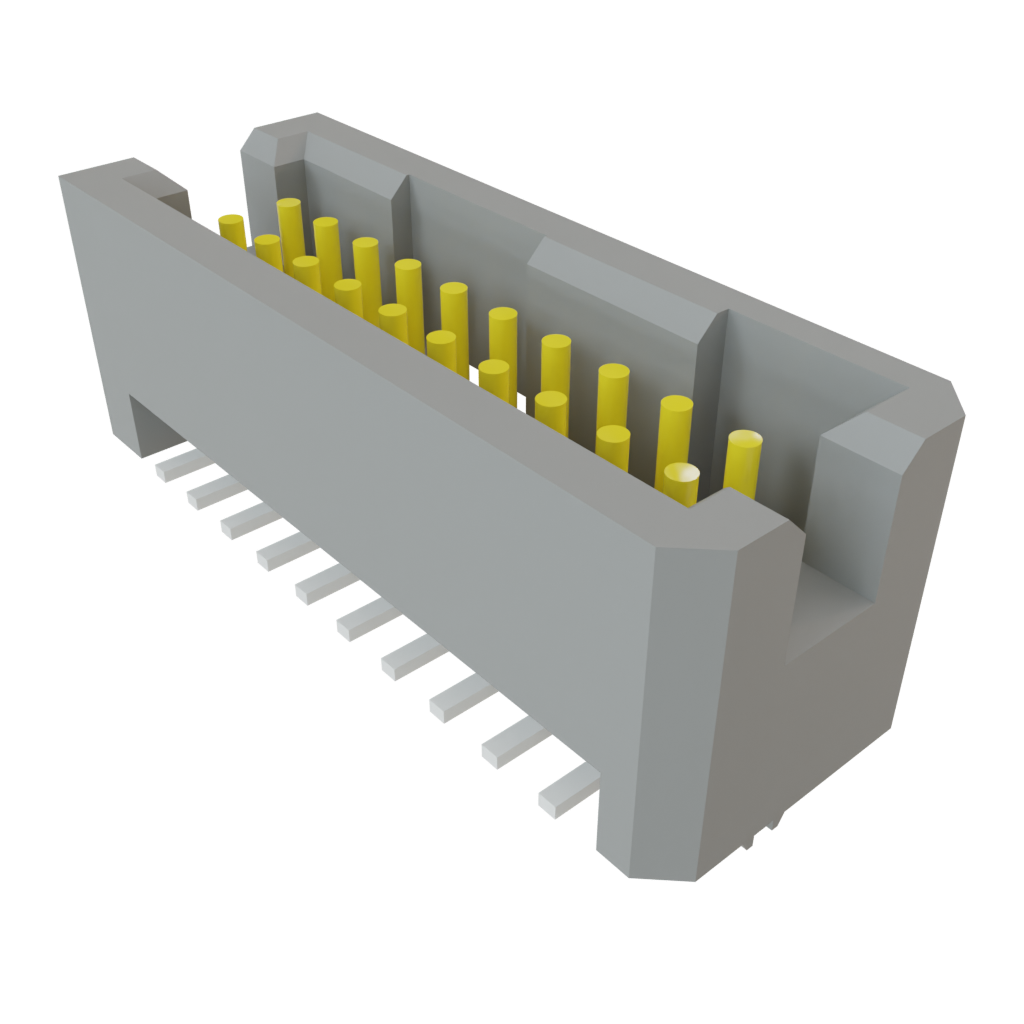

Images are for reference only
See Product Specifications

Mouser No:

200-TFML11002LDLCTR

Mfr. No:

TFML-110-02-L-D-LC-TR

Mfr.:

Samtec

Description:

Headers & Wire Housings Tiger Eye High-Reliability Locking Terminal Strip

Datasheet:

TFML-110-02-L-D-LC-TR Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Samtec TFML-110-02-L-D-LC-TR

In Stock: 39

Stock:: 39 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 3 Weeks Estimated factory production time for quantities greater than shown.

Quantities greater than 39 will be subject to minimum order requirements.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	3,06 €	3,06 €
	2,73 €	68,25 €
	2,50 €	125,00 €
	2,35 €	235,00 €
Full Reel (Order in multiples of 450)
	2,35 €	1.057,50 €
	2,17 €	1.953,00 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Samtec
Product Category:	Headers & Wire Housings
RoHS:
Product:	Headers
Type:	Shrouded
Number of Positions:	20 Position
Pitch:	1.27 mm (0.05 in)
Number of Rows:	2 Row
Row Spacing:	1.27 mm (0.05 in)
Mounting Style:	SMD/SMT
Termination Style:	Solder
Mounting Angle:	Straight
Contact Gender:	Pin (Male)
Contact Plating:	Gold
Series:	TFML
Tradename:	Tiger Eye
Application:	Board-to-Board, Cable
Minimum Operating Temperature:	- 55 C
Maximum Operating Temperature:	+ 125 C
Packaging:	Reel
Packaging:	Cut Tape
Brand:	Samtec
Contact Material:	Phosphor Bronze
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	MY
Current Rating:	3.2 A
Housing Colour:	Black
Housing Material:	Liquid Crystal Polymer (LCP)
Product Type:	Headers & Wire Housings
Factory Pack Quantity:	450
Subcategory:	Headers & Wire Housings
Voltage Rating:	250 VAC
Unit Weight:	312 mg

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Specification Sheets

Technical Resources

Test Report (PDF)

TARIC:: 8536693000
CNHTS:: 8536901100
CAHTS:: 8536690020
USHTS:: 8536694040
JPHTS:: 853669000
KRHTS:: 8536691000
BRHTS:: 85366990
ECCN:: EAR99

Tiger Eye™ TFM .050" (1.27mm) Pitch Terminal Strip

Samtec Tiger Eye™ TFM Series .050" (1.27mm) Pitch Terminal Strips are designed for micro rugged, high-reliability, high-cycle applications. Samtec Tiger Eye contains multi-finger, heat-treated, Beryllium Copper (BeCu) contacts designed for rugged environments. The connectors are available in vertical, right-angle, and horizontal orientations and through-hole or surface mount termination. Optional alignment pin, locking clip, dual screw-down, or weld tab are available for design flexibility.
