TFM-106-01-L-D-WT

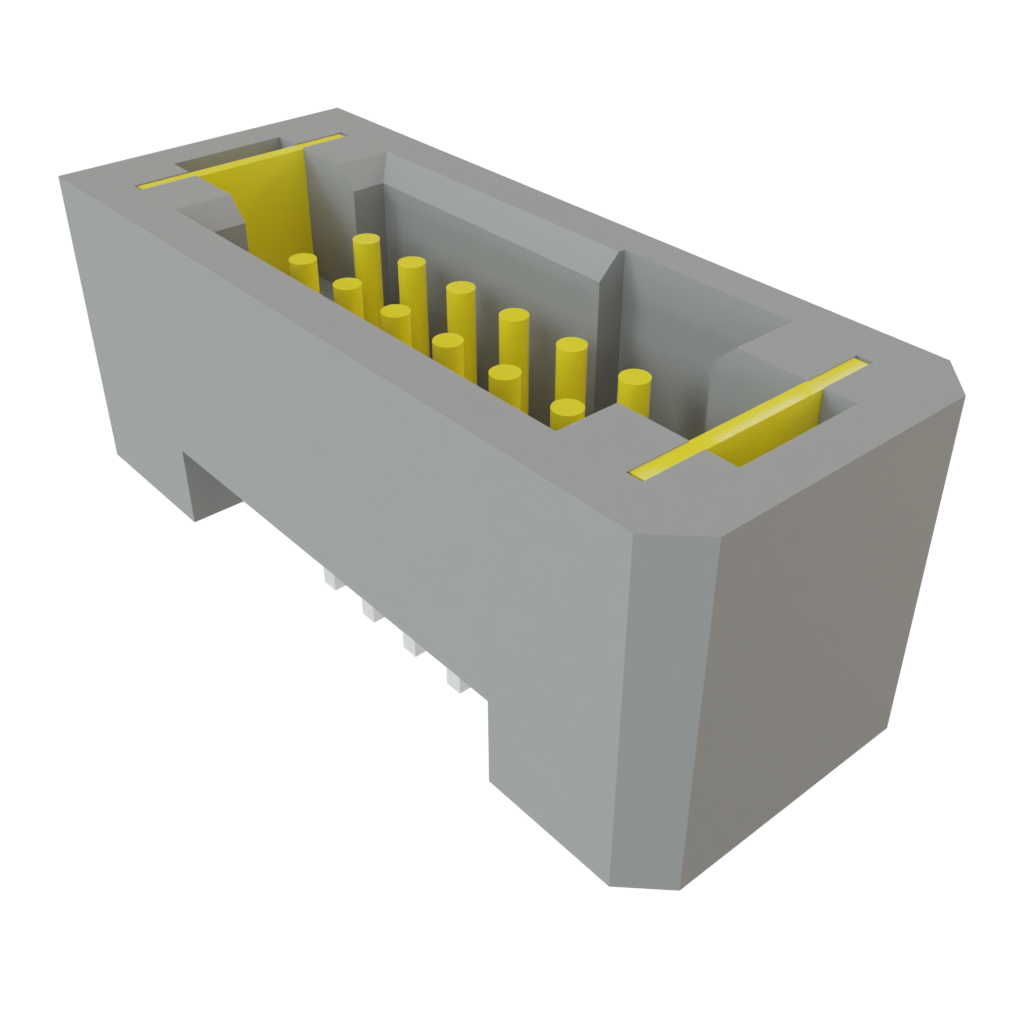

Name: Samtec TFM-106-01-L-D-WT
Brand: Samtec
SKU: 200-TFM10601LDWT
Price: 3.16 EUR
Availability: OutOfStock

Images are for reference only
See Product Specifications

Mouser No:

200-TFM10601LDWT

Mfr. No:

TFM-106-01-L-D-WT

Mfr.:

Samtec

Description:

Headers & Wire Housings 1.27MM TIGER EYE HR TERM STRIP

Datasheet:

TFM-106-01-L-D-WT Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Samtec TFM-106-01-L-D-WT

Availability

Stock:: 0

You can still purchase this product for backorder.

An unexpected error occurred. Please try again later.
On Order:: 71

Expected 4/15/2026
Factory Lead Time:: 2

Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	3,16 €	3,16 €
	2,19 €	249,66 €
	1,98 €	1.053,36 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Samtec
Product Category:	Headers & Wire Housings
RoHS:
Product:	Headers
Type:	Shrouded
Number of Positions:	12 Position
Pitch:	1.27 mm (0.05 in)
Number of Rows:	2 Row
Row Spacing:	1.27 mm (0.05 in)
Mounting Style:	Through Hole
Termination Style:	Solder Pin
Mounting Angle:	Straight
Contact Gender:	Pin (Male)
Contact Plating:	Gold
Series:	TFM
Tradename:	Tiger Eye
Application:	Board-to-Board, Cable
Minimum Operating Temperature:	- 55 C
Maximum Operating Temperature:	+ 125 C
Packaging:	Tube
Brand:	Samtec
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	MY
Product Type:	Headers & Wire Housings
Factory Pack Quantity:	38
Subcategory:	Headers & Wire Housings
Unit Weight:	263 mg

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Specification Sheets

Technical Resources

Test Report (PDF)

TARIC:: 8536693000
CNHTS:: 8536901100
CAHTS:: 8536690020
USHTS:: 8536694040
JPHTS:: 853669000
KRHTS:: 8536691000
MXHTS:: 8536699999
BRHTS:: 85366990
ECCN:: EAR99

Discrete Wire Components & Cable Assemblies

Samtec Discrete Wire Components and Cable Assemblies offer significant space savings and design flexibility in cable-to-board, cable-to-cable, and cable-to-panel applications. This discrete wire family is ideal for a variety of industries, including industrial, automation, military, automotive, and medical. The lineup is available in pitches from 1mm to 4.19mm, with a wire range from 30AWG to 16AWG. Samtec Discrete Wire Components and Cable Assemblies feature a comprehensive selection of bodies, contacts, and terminals with rugged latching, individually shrouded or high-reliability Tiger Eye™ contact systems, ultra-micro-power and high-power versions, keying, polarization, and more.

1.27mm Tiger Eye™ Discrete Wire System

Samtec 1.27mm (0.050") Tiger Eye™ Discrete Wire System includes cables, plugs, sockets, and terminal strips designed for micro rugged applications. These products are available as components or complete assemblies and feature the high-reliability Tiger Eye contact system. Samtec 1.27mm Tiger Eye Discrete Wire System offers shrouded, polarized, and keyed products with PVC or Teflon cable. Metal latch and screw-down options are also available.

Tiger Eye™ TFM .050" (1.27mm) Pitch Terminal Strip

Samtec Tiger Eye™ TFM Series .050" (1.27mm) Pitch Terminal Strips are designed for micro rugged, high-reliability, high-cycle applications. Samtec Tiger Eye contains multi-finger, heat-treated, Beryllium Copper (BeCu) contacts designed for rugged environments. The connectors are available in vertical, right-angle, and horizontal orientations and through-hole or surface mount termination. Optional alignment pin, locking clip, dual screw-down, or weld tab are available for design flexibility.
